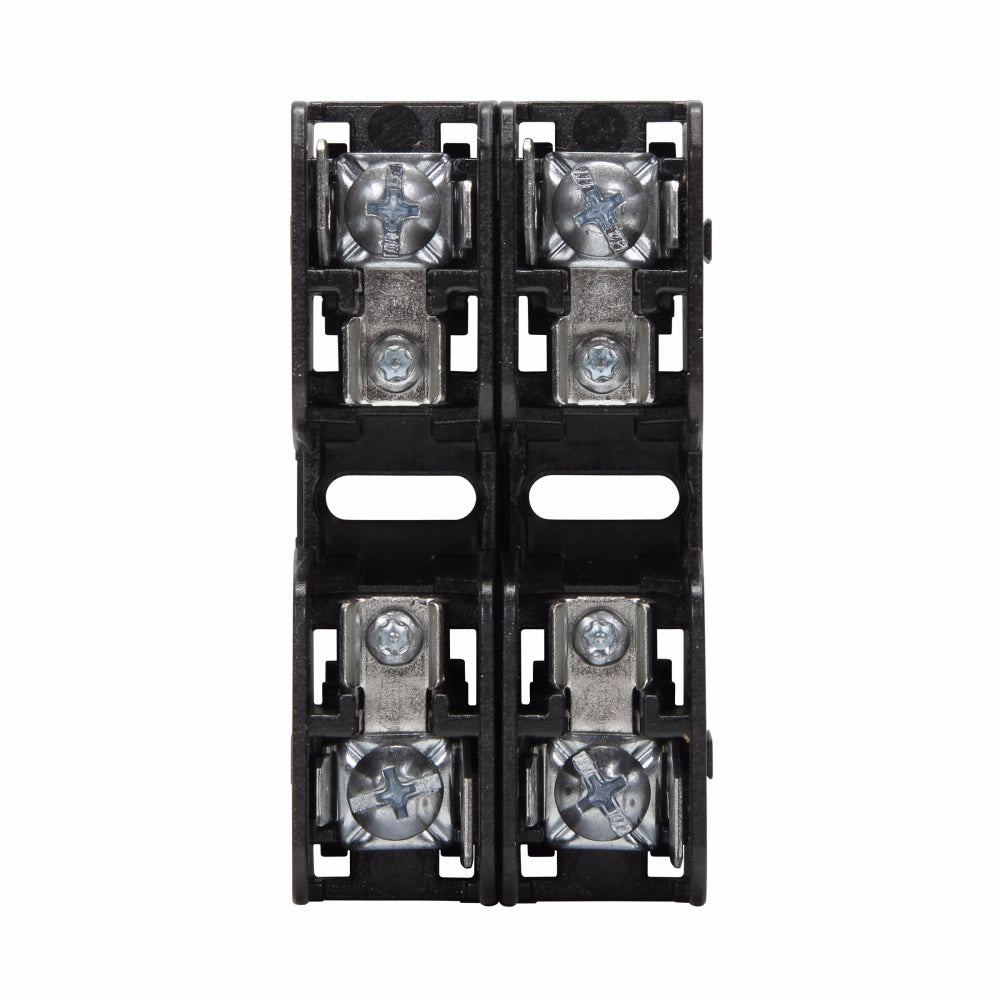

Eaton BCM603-2PQ BUS CC FUSE BLOCK W/PP & QC - 2 POLE

Product Description

The Eaton BCM603-2PQ is a modular fuse block designed for electrical applications. It operates at six hundred volts with a current rating of thirty amps and features two poles. This fuse block utilizes a quick-connect pressure plate for easy installation and supports wire sizes from eighteen to ten AWG. The fuse block is suitable for DIN rail or panel mounting and operates effectively in temperatures ranging from negative forty to one hundred twenty degrees Celsius.

• Modular design for versatile assembly.
• Compatible with Low-Peak LP-CC series time delay fuses.
• Constructed from durable thermoplastic material.

Product Highlights

This product enhances safety and reduces assembly labor required in panel designs.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171248673

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Number of Poles: 2
• Connection Type: 1/4 in Quick-Connect/Pressure Plate
• Dimensions: 3 in L x 1.6 in W x 1.3 in H
• Temperature Rating: -40 to 120 deg C
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
