EATON BCM603-1C FUSES
EATON Eaton BCM603-1C BUS CC Fuse Block W/ Wire Connector - 1 Pole
EATON BCM603-1C FUSES

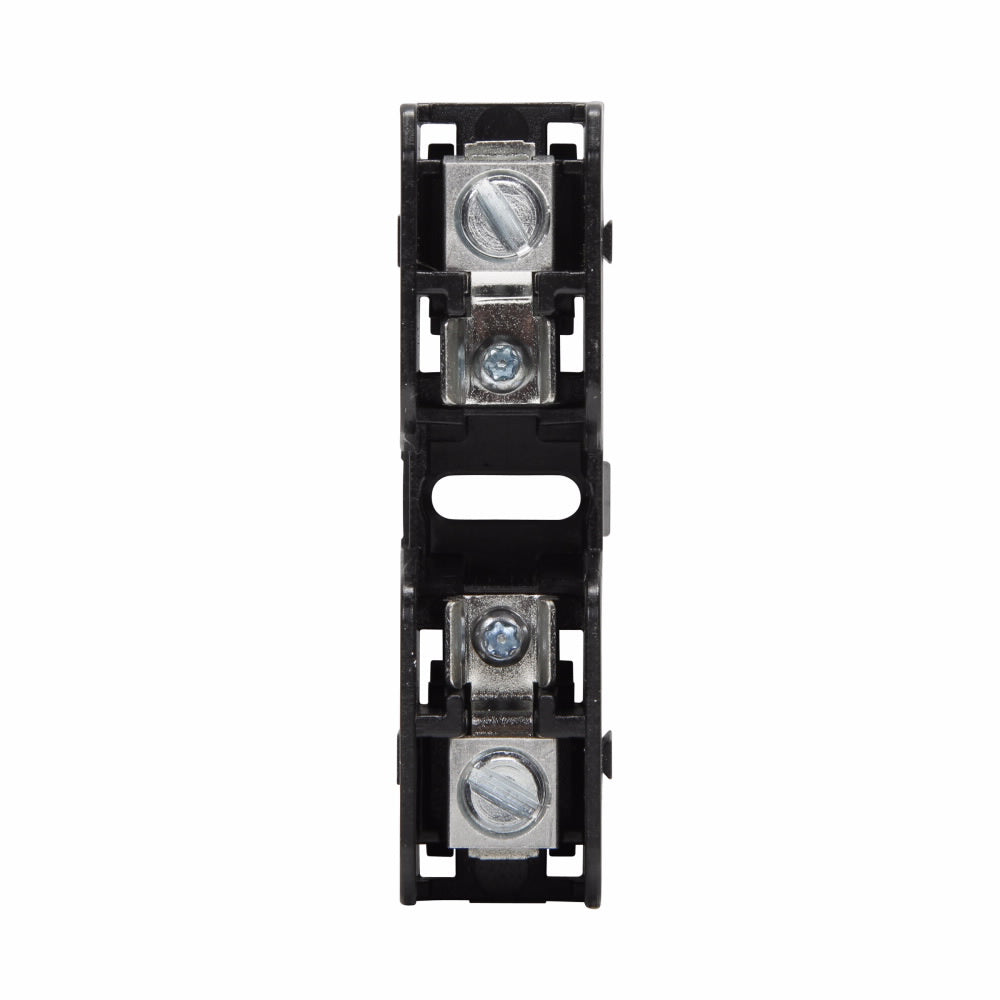

Eaton BCM603-1C BUS CC Fuse Block W/ Wire Connector - 1 Pole

Eaton BCM603-1C BUS CC Fuse Block W/ Wire Connector - 1 Pole

EATON
Brand: EATON
SKU: BCM603-1C
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton BCM603-1C is a modular fuse block designed for electrical applications. It operates at 600 VAC/VDC and supports current up to 30 A. This product features a one-pole configuration and is compatible with Class CC fuses. Designed for easy installation, it accommodates wire sizes from fourteen to two AWG. This fuse block can mount on DIN rails, ensuring versatile setup options.

  • Modular design for easy assembly
  • Suitable for use with Class CC fuses
  • DIN rail mount for various applications

Product Highlights

This fuse block simplifies electrical assembly, providing user-friendly installation and effective heat management.

Product Information

Standard Information

  • Manufacturer: Eaton
  • UPC: 05171248627
Technical Specifications
Amperage Rating:
0 to 30 A
Voltage Rating:
600 VAC/VDC
Connection Type:
Box Lug/Wired
Number of Poles:
1
Fuse Length:
1-1/2 inches
Fuse Diameter:
13/32 inches
Temperature Rating:
-40 to 120 degrees Celsius
Dimensions:
3 inches L x 0.8 inches W x 1.3 inches H
Material:
Thermoplastic
Mounting Type:
DIN Rail
Class:
CC
Suitable For Use With:
KTK-R, FNQ-R, LP-CC Series Fuse
Standards/Approvals:
CE Certified, CSA File No.47235, RoHS Compliant, UL File No. E14853 Guide IZLT2
