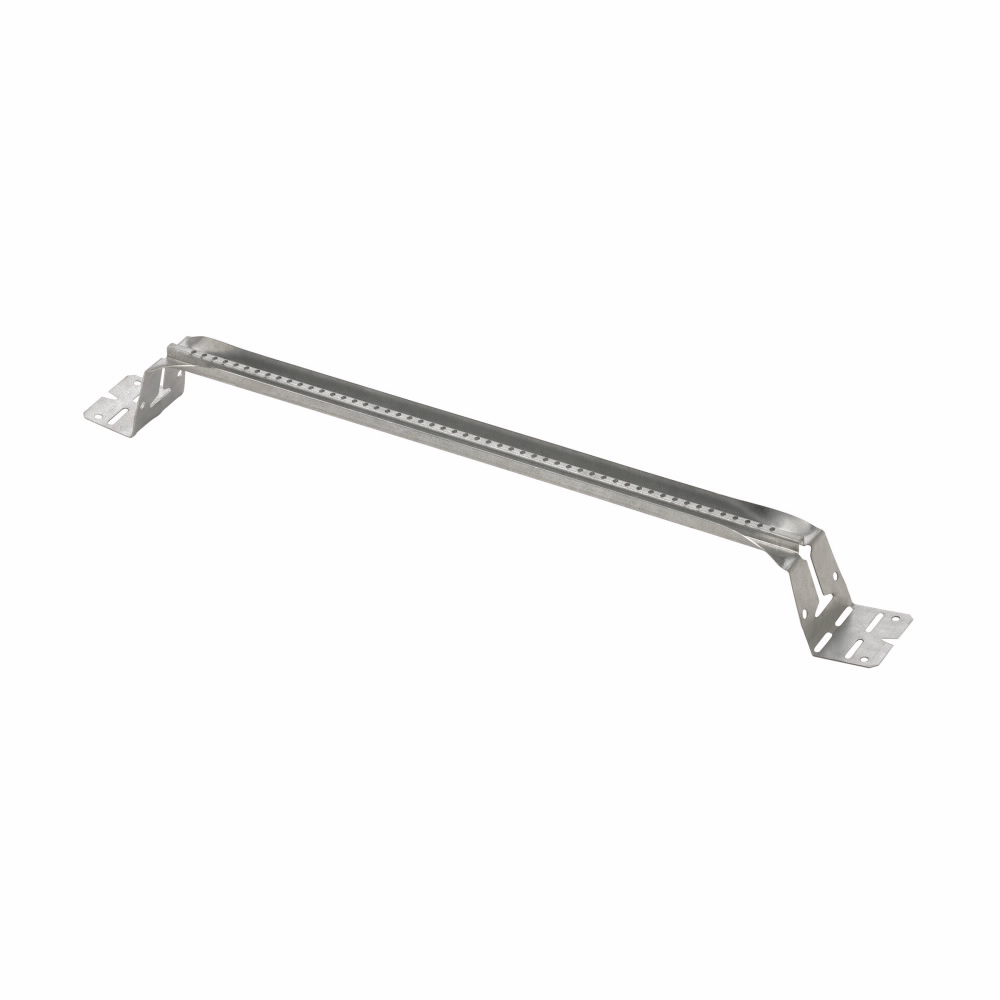

Eaton BB224T Telescoping Box Mounting Bracket

Product Description

The EATON BB224T is a telescoping box mounting bracket from the B-Line series, designed to secure electrical outlet and junction boxes to metal wall studs. The bracket adjusts to accommodate metal stud spacing from 15.5 inches to 26 inches, making it versatile across a range of framing layouts. It supports boxes with depths of 1.5 inches, 2.13 inches, 2.5 inches, and 2.8 inches. Constructed from pre-galvanized metal, the BB224T resists corrosion in typical wall cavity conditions. Electricians and general contractors install this bracket during rough-in phases of commercial and residential construction where metal stud framing is used.

The BB224T is suited for metal stud wall construction in both residential and light commercial applications. It provides a stable mounting point for standard electrical boxes during rough-in work before drywall installation. The adjustable telescoping design eliminates the need for multiple bracket sizes on jobs with varying stud spacing. Installers working in new construction or renovation projects with metal framing will find this bracket compatible with commonly used box depths encountered in standard rough-in work.

Key Features

• Telescoping design adjusts to metal stud spacing from 15.5 inches to 26 inches
• Supports electrical boxes with depths of 1.5 inches, 2.13 inches, 2.5 inches, and 2.8 inches
• Pre-galvanized metal construction for corrosion resistance in wall cavity environments
• Single bracket replaces multiple fixed-length brackets across varied stud layouts
• Part of the EATON B-Line series, a recognized line of electrical installation hardware

Compatibility

Designed as an OEM-style replacement and new-installation bracket for standard electrical boxes with depths of 1.5 inches, 2.13 inches, 2.5 inches, or 2.8 inches mounted in metal stud wall assemblies with stud spacing between 15.5 inches and 26 inches.

Installation Notes

Installation is performed by licensed electricians during the rough-in phase, prior to drywall installation. De-energize all circuits in the work area before handling any electrical boxes or hardware, in accordance with NEC lockout and tagout requirements. The bracket should be secured firmly to metal studs using appropriate fasteners rated for metal framing. Do not exceed the rated box depth range or stud spacing range specified for this bracket.

Technical Specifications

• Stud Spacing Range: 15.5 inches to 26 inches
• Compatible Box Depths: 1.5 inches, 2.13 inches, 2.5 inches, 2.8 inches
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.493 pounds
• Material: Pre-galvanized metal
• Mounting Type: Telescoping bracket, wall stud mount
• UPC: 799038630029

Standard Information

• Brand: EATON
• Manufacturer Part Number: BB224T
