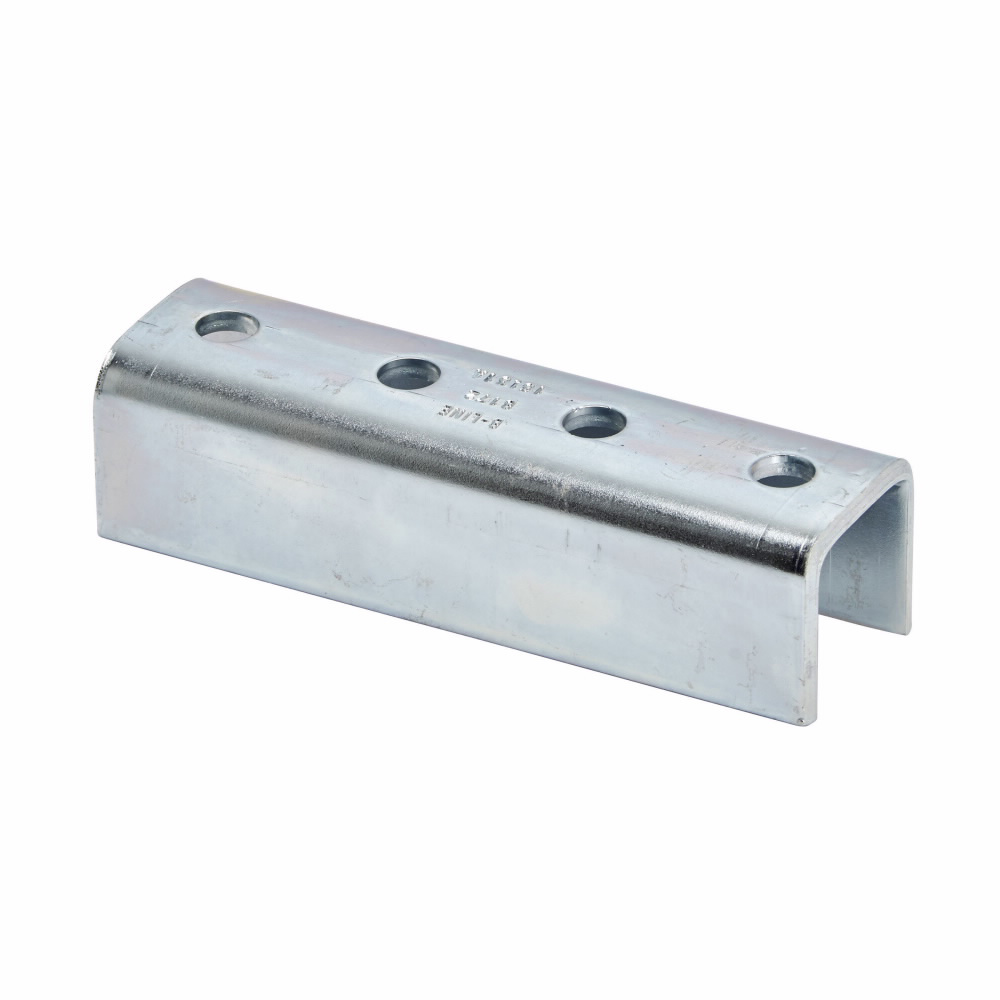

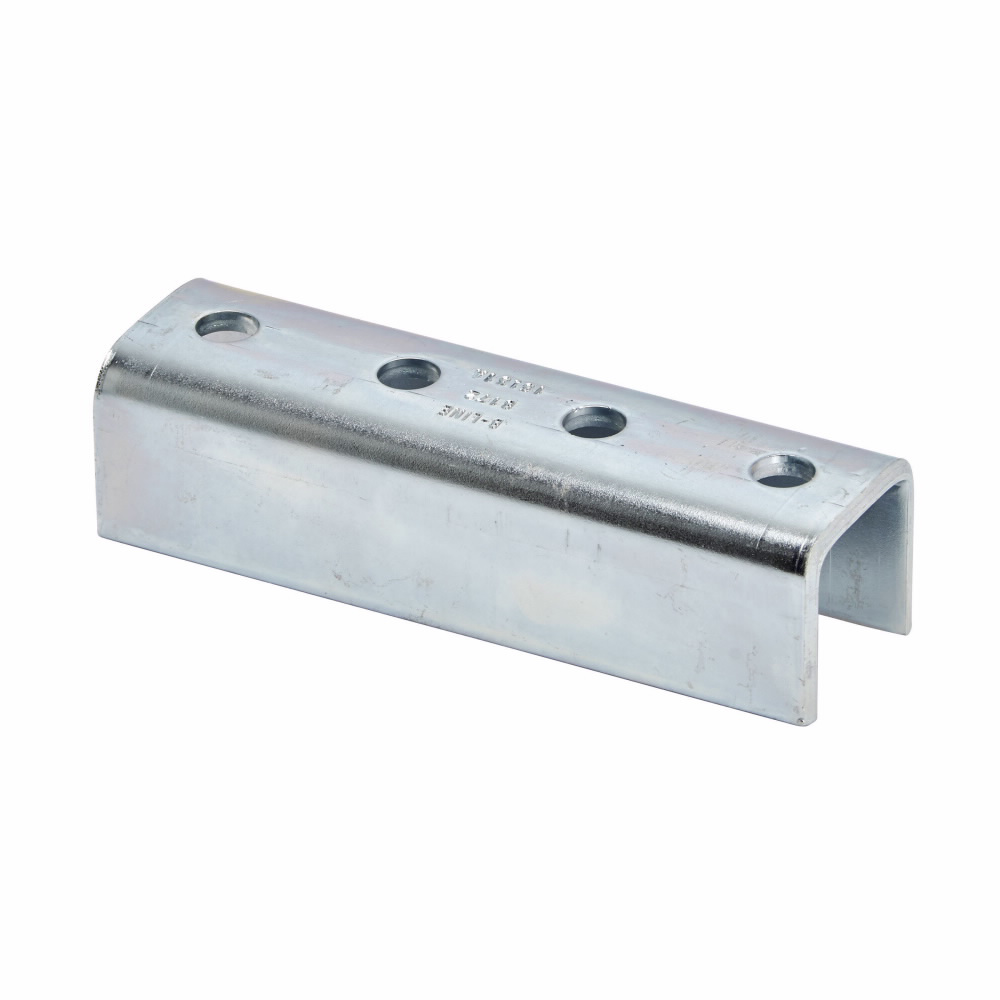

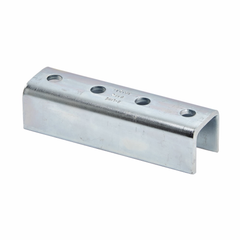

Eaton BB172ZN Four Hole Splice Clevis Strut Fitting

Product Description

The EATON BB172ZN is a four hole splice clevis fitting from the B-Line series, designed for use with strut channel systems in electrical, mechanical, and structural support applications. Constructed from steel with an electro-plated finish for corrosion resistance, this clevis provides a secure mechanical connection point for splicing or joining strut channel runs. It measures 7.24 inches in length, 2.12 inches in width, and 1.62 inches in height, with a wall thickness of 7/32 inch. At 2.66 pounds, it is sized for dependable load transfer in commercial and industrial installations. Licensed electricians and mechanical contractors are the primary installers.

The BB172ZN is intended for use with B22 or B52A channel type strut. It is suited for interior electrical raceway support, pipe and conduit hanger systems, and general structural bracketing in commercial buildings, industrial facilities, and utility installations. The four-hole clevis design allows for flexible positioning and alignment during assembly, making it a practical choice for both new construction and retrofit support projects.

Key Features

• Four hole splice clevis configuration for secure strut channel joining
• Steel construction with electro-plated finish for corrosion resistance
• Fits B22 or B52A channel type strut
• Wall thickness of 7/32 inch for structural rigidity
• Compact profile: 7.24 inches long, 2.12 inches wide, 1.62 inches tall

Compatibility

Designed for use with B22 or B52A channel type strut as stated by the manufacturer.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors in accordance with applicable NEC and local structural support codes. Power down any energized equipment in the work area before beginning strut system assembly or modification. Use appropriate hardware torqued to the strut system manufacturer specifications, and confirm channel alignment before final tightening. Do not exceed the rated load capacity of the fitting or the strut channel it is paired with.

Technical Specifications

• Material: Steel
• Finish: Electro-plated
• Configuration: Four hole splice clevis
• Compatible Channel Type: B22 or B52A
• Length: 7.24 inches
• Width: 2.12 inches
• Height: 1.62 inches
• Wall Thickness: 7/32 inch
• Weight: 2.66 pounds
• UPC: 781011515935

Standard Information

• Brand: EATON
• Manufacturer Part Number: BB172ZN
