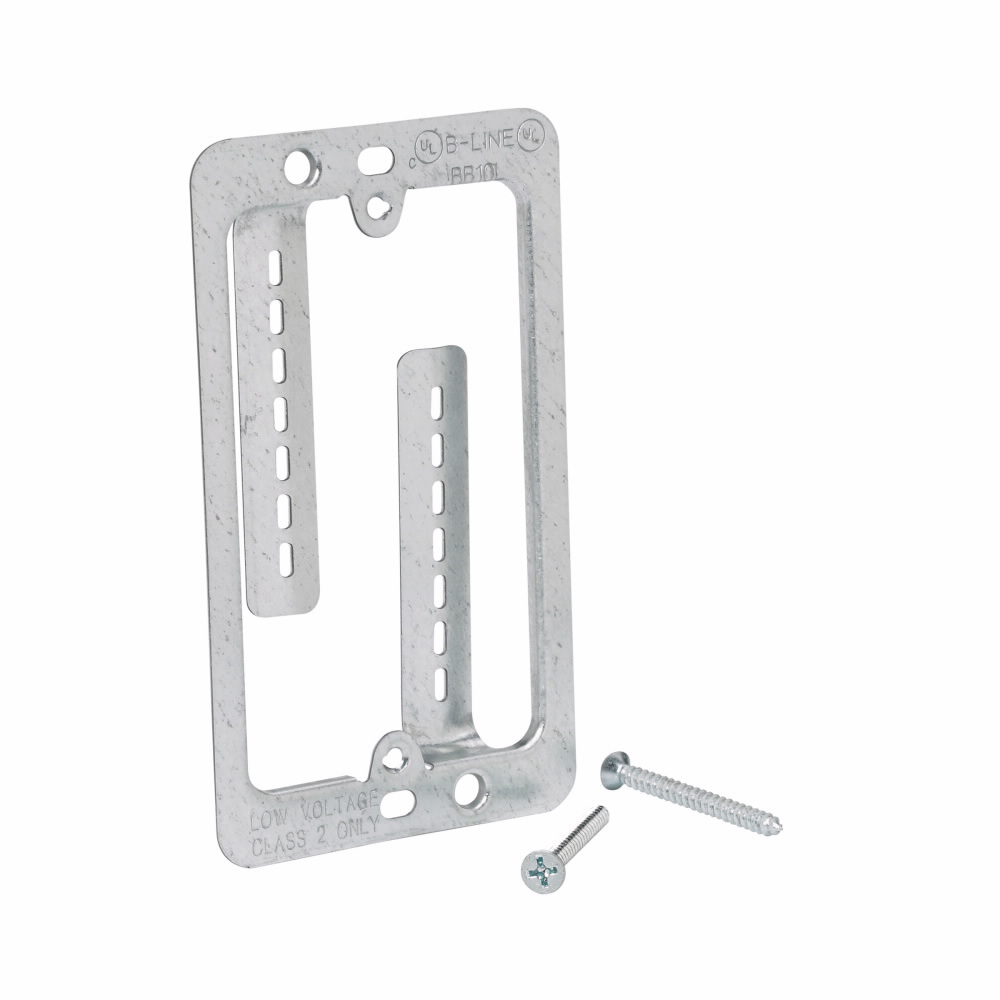

Eaton BB10L Single Gang Low Voltage Mounting Bracket

Product Description

The EATON BB10L is a single gang mounting bracket designed for datacomm and low voltage support applications in wall installations. Part of the B-Line series, this bracket provides a secure mounting point for low voltage cover plates in residential and light commercial settings. Constructed from pre-galvanized steel with a grey finish, it is rated for a design load capacity of 0.05 kilonewtons. The bracket accommodates drywall up to 1.25 inches thick and is appropriate for communication and low voltage wiring installations where a cover plate mounting solution is required.

This bracket is suited for single gang wall openings in drywall construction. Typical applications include structured wiring, data cable, telephone, and low voltage device terminations. Electricians and low voltage technicians install this bracket during rough-in or finish stages to support cover plates without a standard electrical box. It is commonly used in residential new construction and retrofit projects where low voltage wiring must be neatly terminated at the wall surface.

Key Features

• Single gang configuration for standard wall opening sizing
• Pre-galvanized steel construction for corrosion resistance
• Accommodates drywall up to 1.25 inches in thickness
• Design load capacity of 0.05 kilonewtons
• Cover plate mounting bracket style for low voltage and datacomm applications
• Grey finish for a clean, neutral appearance at the wall surface

Compatibility

Designed as an OEM-style low voltage mounting bracket for single gang communication and datacomm cover plate applications in standard drywall wall assemblies.

Installation Notes

Installation is typically performed by a licensed electrician or low voltage technician in accordance with applicable NEC requirements for low voltage wiring methods. Ensure the wall opening is sized correctly for a single gang bracket before securing. No electrical power needs to be shut off for low voltage bracket installation, but always verify the absence of energized conductors in the work area before proceeding. Do not exceed the rated design load capacity when mounting devices or cover plates to this bracket.

Technical Specifications

• Configuration: Single Gang
• Material: Pre-Galvanized Steel
• Finish: Grey
• Design Load Capacity: 0.05 kN
• Maximum Drywall Thickness: 1.25 inches
• Application: Communication and Low Voltage
• UPC: 781011908959

Standard Information

• Brand: EATON
• Manufacturer Part Number: BB10L
