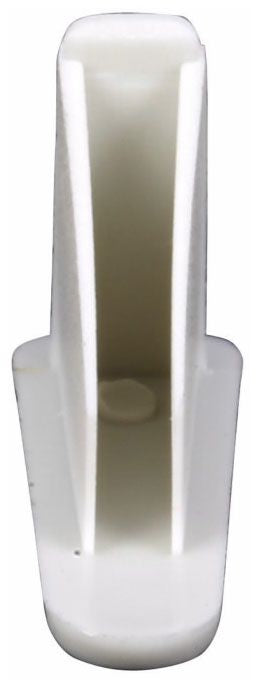

Eaton BB-UL-EC/1 Busbar End Cap

Product Description

The EATON BB-UL-EC/1 is a busbar end cap designed to provide insulation and physical protection at the exposed terminal end of a busbar assembly. End caps of this type are installed by licensed electricians during panel assembly, distribution board builds, or busbar system extensions. The cap fits over the open end of a compatible busbar to prevent accidental contact with energized conductors, reducing arc flash and shock hazard at the termination point. It is a low-cost but safety-critical component in any properly finished busbar installation.

This end cap is used in commercial and industrial electrical distribution applications wherever busbar systems are deployed. Typical installation scenarios include switchgear assemblies, motor control centers, and modular distribution boards. It is suited for use by licensed electricians working on low-voltage power distribution systems that incorporate EATON busbar components.

Key Features

• Insulating end cap that covers the exposed terminal end of a busbar conductor
• Reduces shock and arc flash hazard at busbar termination points
• Designed for use in modular busbar distribution system assemblies
• Compact form factor integrates directly onto compatible busbar profiles

Compatibility

Designed as an OEM-style accessory end cap for use with compatible EATON busbar distribution system components.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the busbar system before handling any busbar components or accessories. Confirm the end cap is fully seated and secure before re-energizing the distribution system. Do not install on an energized busbar under any circumstances.

Technical Specifications

• UPC: 01508120200

Standard Information

• Brand: EATON
• Manufacturer Part Number: BB-UL-EC/1
