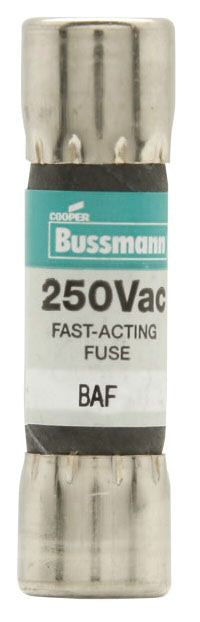

Eaton BAF-12 Midget Fuse 250V 12A

Product Description

The EATON BAF-12 is a 250-volt midget fuse rated at 12 amps, designed for overcurrent protection in low-amperage control circuits and compact electrical equipment. Midget fuses follow the standard 13/32-inch by 1-1/2-inch form factor and are commonly used where full-size fuses will not fit. The BAF-12 provides fast-acting protection suitable for motor controls, HVAC control boards, transformers, and small industrial equipment. Licensed electricians and HVAC technicians install this class of fuse during routine maintenance, equipment repair, and panel servicing.

The BAF-12 fits standard midget fuse holders and fusible disconnect blocks rated for the 13/32-inch by 1-1/2-inch format. It is appropriate for residential and light commercial HVAC systems, motor control centers, and electrical control panels requiring 12-amp overcurrent protection at 250 volts or below. This fuse is a direct drop-in replacement wherever the BAF series midget fuse type is specified.

Key Features

• 12-amp current rating for low-amperage circuit protection
• 250-volt rating suitable for single-phase control circuits
• Standard 13/32-inch by 1-1/2-inch midget fuse form factor
• Fast-acting response for sensitive control circuit components
• Compatible with standard midget fuse holders and fusible blocks

Compatibility

Designed as an OEM-style replacement for applications requiring a 250-volt, 12-amp midget fuse in the BAF series form factor.

Installation Notes

Installation should be performed by a qualified electrician or licensed HVAC technician. De-energize and lock out the circuit before removing or installing any fuse. Verify that the replacement fuse amperage and voltage rating match the equipment nameplate and circuit design exactly. NEC guidelines apply to fuse selection and overcurrent protection sizing.

Technical Specifications

• Voltage Rating: 250 volts
• Amperage Rating: 12 amps
• Fuse Type: Midget
• UPC: 05171232011

Standard Information

• Brand: EATON
• Manufacturer Part Number: BAF-12
