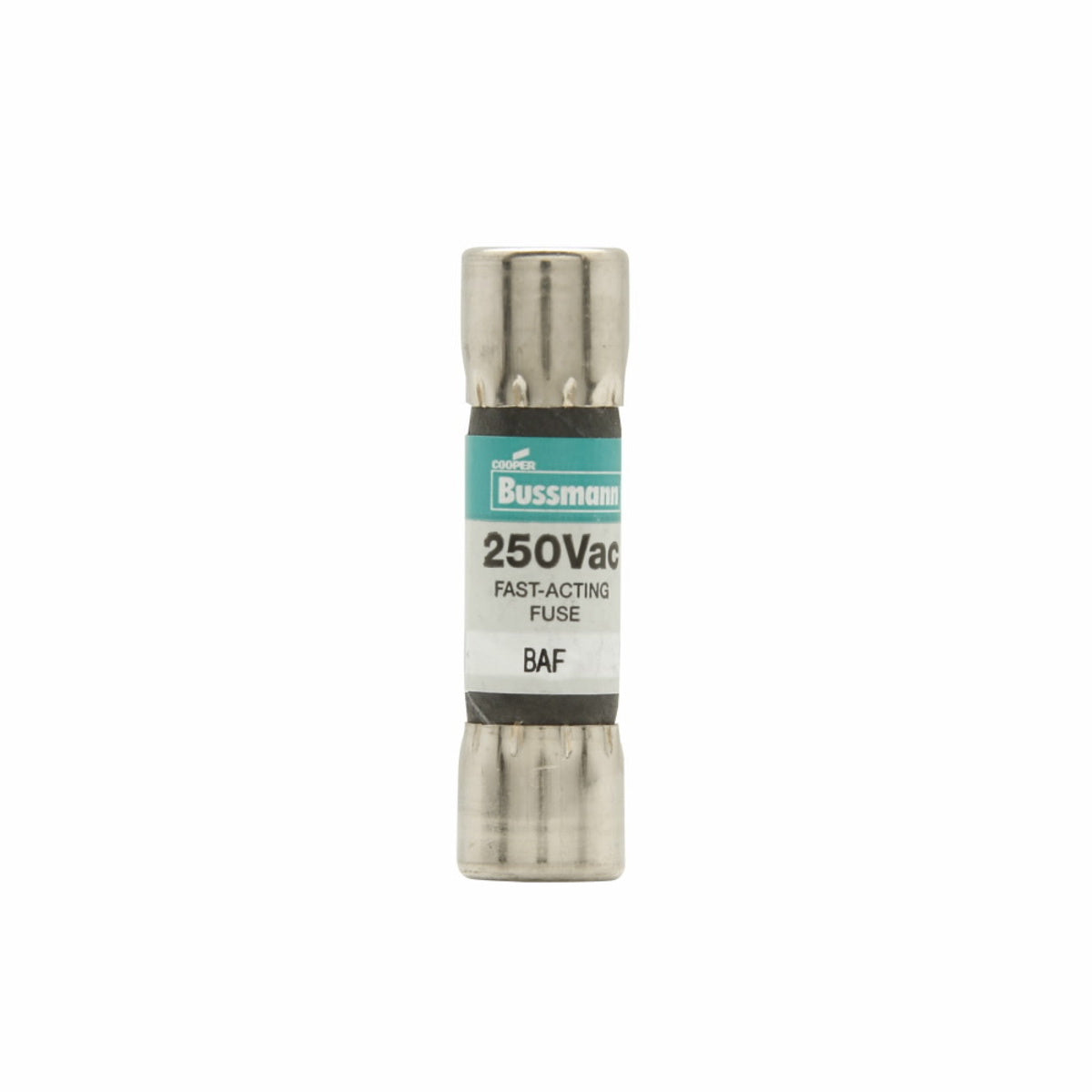

Eaton BAF-1 Bussmann BAF Fast-Acting Midget Fuse 1 A (13/32 in x 1-1/2 in) BAF-1

Product Description

Eaton BAF-1 is a Bussmann series fast-acting midget fuse rated 1 A and 250 V for overcurrent protection in supplemental and midget fuse applications. It is non-indicating with ferrule end terminals and nickel-plated brass endcaps. The fuse provides interrupting ratings of 35 AIC at 250 VAC and 10 kAIC at 125 VAC and is sized for standard midget holders.

• Fast-acting midget fuse, 1 A current rating, 250 V voltage rating
• Ferrule end x ferrule end terminals with nickel-plated brass endcaps; fiber/cartridge body construction
• Interrupting rating 35 AIC at 250 VAC and 10 kAIC (10,000 AIC) at 125 VAC; CE/CSA/UL listings

Product Highlights

1 A, 250 V fast-acting midget fuse with ferrule terminals, nickel-plated brass endcaps, and high interrupting capacity (35 AIC @ 250 VAC; 10 kAIC @ 125 VAC).

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BAF-1
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: BAF-1
• Series: Bussmann BAF
• Fuse Type: Fast-acting (midget)
• Current Rating: 1 A
• Voltage Rating: 250 V AC
• Interrupting Rating (250 VAC): 35 AIC
• Interrupting Rating (125 VAC): 10 kAIC (10,000 AIC)
• End Type: Ferrule end x ferrule end
• Endcap Material: Nickel-plated brass
• Body Material: Fiber tube / brass and fiberglass (cartridge)
• Body Size: 13/32 in diameter x 1-1/2 in length
• Dimensions: 13/32 in diameter x 1-1/2 in length (0.40625 in x 1.5 in)
• Body Type: Cartridge
• Mounting Type: Holder
• Class: Supplemental
• Indication: Non-indicating
• Terminal Type: Ferrule
• Standards/Approvals: CE, CSA, UL (UL 248-14)
• UL File Number: E19180
• UPC: 051712320016
• Typical Applications: General purpose circuits, lighting circuit protection, meter circuits, safety and security systems
