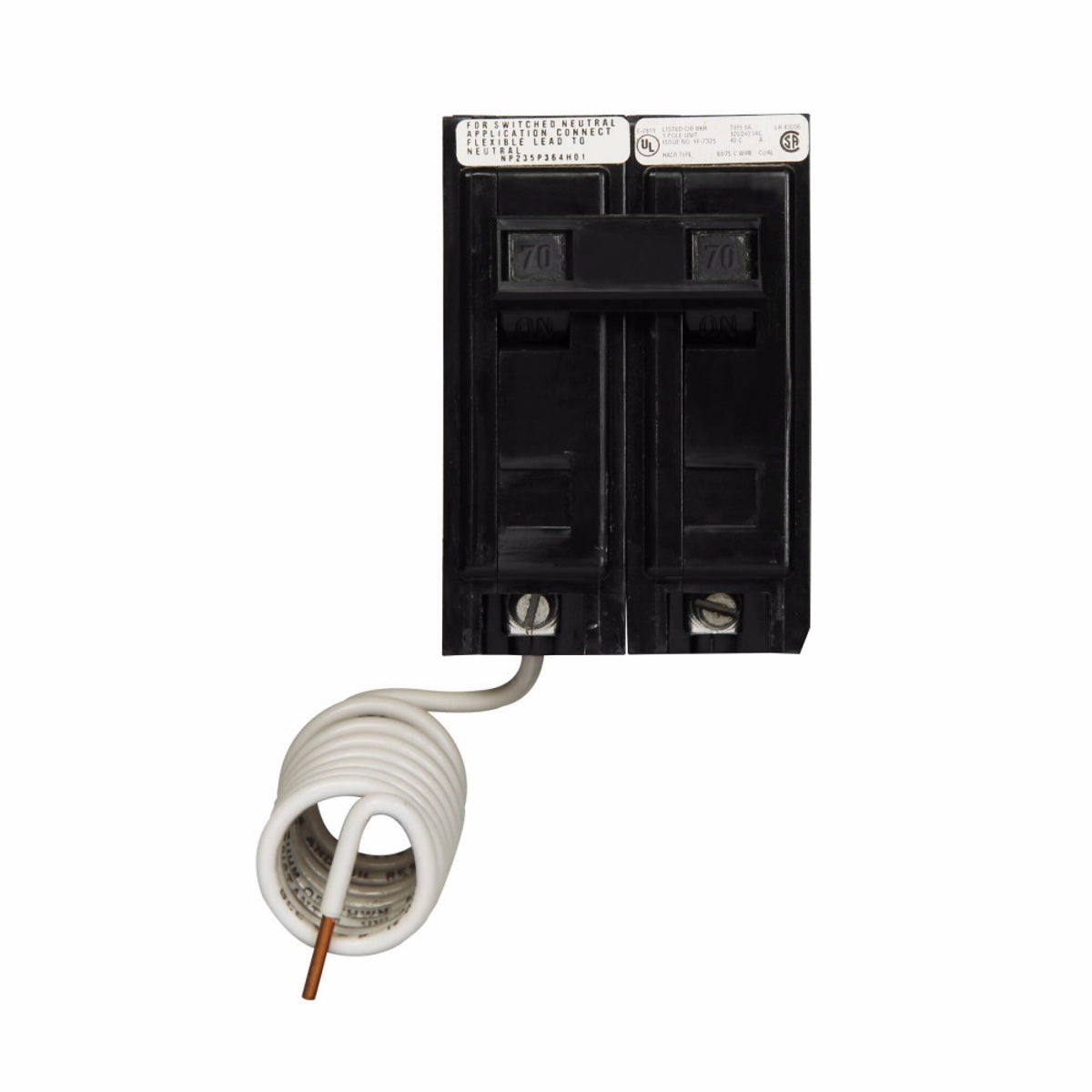

EATON BAB2070 Type BAB Miniature Circuit Breaker, 120/240 VAC, 70 A, 10 kA Interrupt, 2 Poles

Product Description

EATON BAB2070 Type BAB Miniature Circuit Breaker is designed to offer reliable protection in panelboards. This 120/240 VAC unit features a 70 Amp rating with an interrupt capacity of 10 kA. Its two-pole configuration ensures optimum performance in various applications.

• Non-Interchangeable Thermal Magnetic Trip
• Flexible power feed connection for easy installation
• Compact design enhances panel space efficiency

Product Highlights

This circuit breaker is suitable for various energy generation systems, including both conventional and renewable sources.

Product Information

Standard Information

• Manufacturer: EATON
• Manufacturer Part No: BAB2070

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 70 A
• Interrupt Rating: 10 kAIC
• Number of Poles: 2
• Trip Type: Non-Interchangeable Thermal Magnetic
• Dimensions: 3.8 in L x 2.2 in W x 4.8 in H
• Wire Size: 14 to 4 AWG
• Temperature Rating: 40 deg C
• Mounting Type: Bolt-On
• Standard/Approval: UL Listed, CSA Certified
