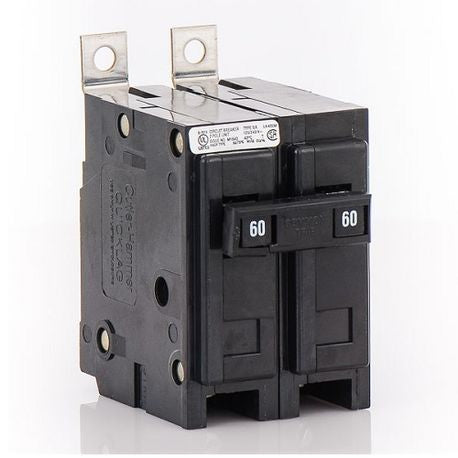

EATON BAB2060 Type BAB Quicklag Industrial Thermal-Magnetic Circuit Breaker, 240 VAC, 60 Amp, 10 kAIC, 2-Pole

Product Description

The EATON BAB2060 is a Type BAB Quicklag Industrial Thermal-Magnetic Circuit Breaker with a voltage rating of 240 VAC and a current rating of sixty amps. This circuit breaker features a ten kiloamp interrupt rating and is designed in a two-pole configuration. It is suitable for various applications in electrical systems, ensuring safety and reliability.

• Two-pole design rated for 240 VAC.
• Interrupt rating of ten kiloamps.
• Thermal-magnetic non-interchangeable trip.

Product Highlights

The EATON BAB2060 provides efficient protection for electrical panels. It is UL listed and HACR rated, ensuring compliance with industry standards.

Product Information

Standard Information

• Manufacturer: EATON
• Product Type: Miniature Circuit Breaker

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 60 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Trip Type: Non-Interchangeable/Thermal Magnetic
• Mounting Type: Bolt-On
• Dimensions: 3.8 in L x 2.2 in W x 4.8 in H
• Wire Size: 8 to 1/0 AWG
• Phase: 1 ph
• Temperature Rating: 40 deg C
• Frequency Rating: 50/60 Hz
• Country of Origin: Dominican Republic
