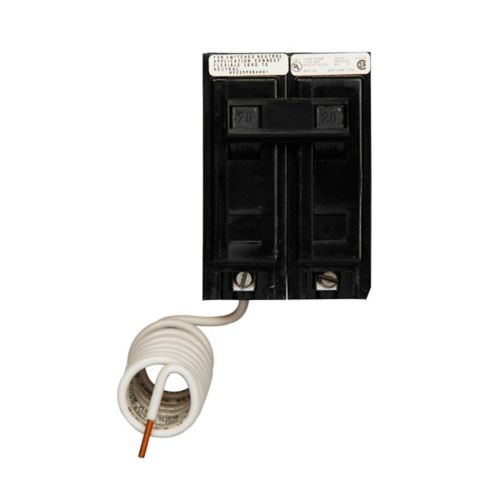

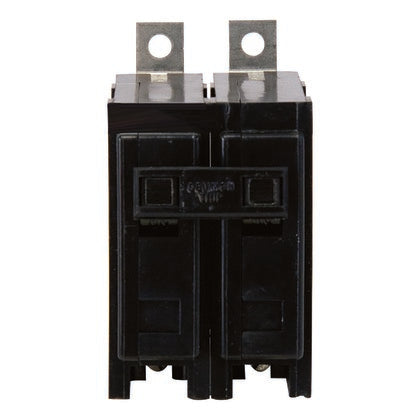

Eaton BAB2020H BAB Thermal Magnetic Circuit Breaker 20 A REPLACEMENT BAB2020H

Product Description

The EATON BAB2020H is a thermal magnetic circuit breaker. This Quicklag industrial thermal-magnetic circuit breaker is marine duty and has a 20 A amperage rating and 10 kAIC interrupt rating. It is a two-pole circuit breaker with a voltage rating of 120/240 V and features bolt-on mounting.

• Bolt-on mounting
• Two-pole
• 10 kAIC Interrupt rating

Product Highlights

The EATON BAB2020H circuit breaker provides protection for overheating wires, overloads, and short circuits in industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BAB2020H

Technical Specifications

• Product Name: Eaton BAB thermal magnetic circuit breaker
• Catalog Number: BAB2020H
• UPC: 786679302231
• Product Length/Depth: 3 in
• Product Height: 3.5 in
• Product Width: 2 in
• Catalog Notes: HACR rated
• Product Type: Thermal magnetic circuit breakers
• Circuit breaker type: BAB
• Number of poles: Two-pole
• Type: Quicklag industrial thermal-magnetic circuit breaker
• Amperage Rating: 20 A
• Interrupt rating: 10 kAIC
• Trip Type: Non-Interchangeable
• Voltage rating: 120/240 V
• Special features: Bolt-on mounting
• Poles: 2
• Amps: 20
• Volts AC: 240
• Mounting: Bolt On
• Interrupt Rating AC: 10 kA
