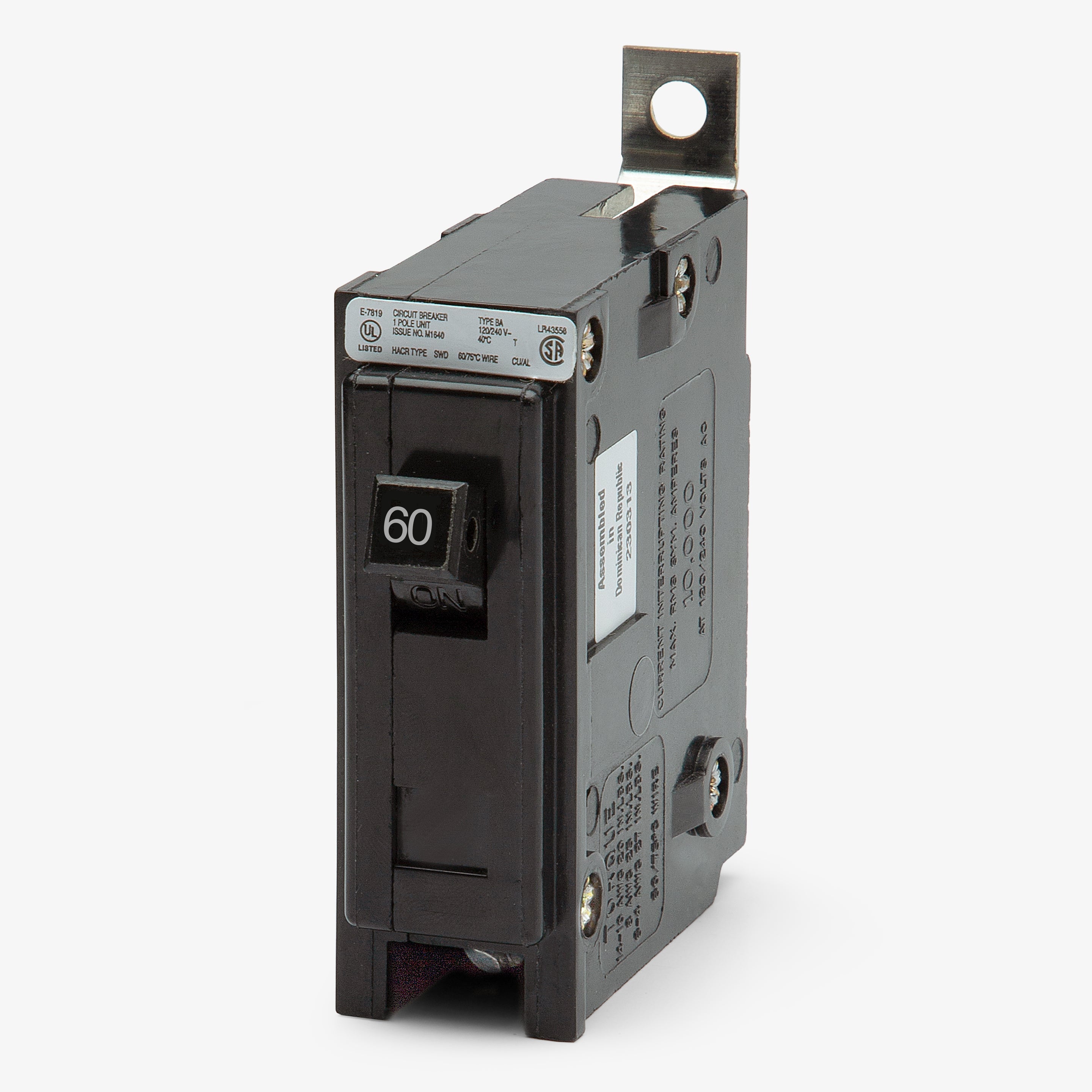

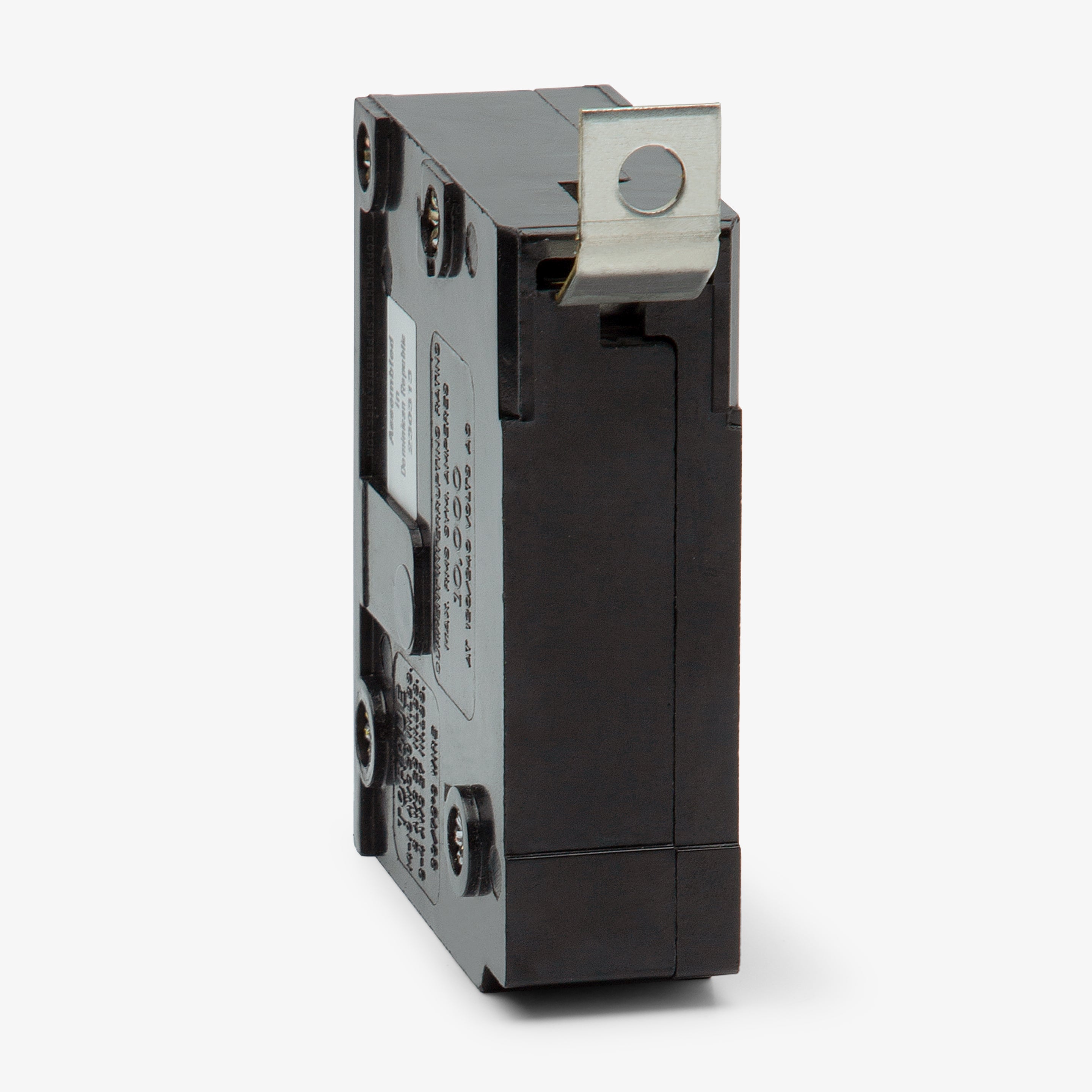

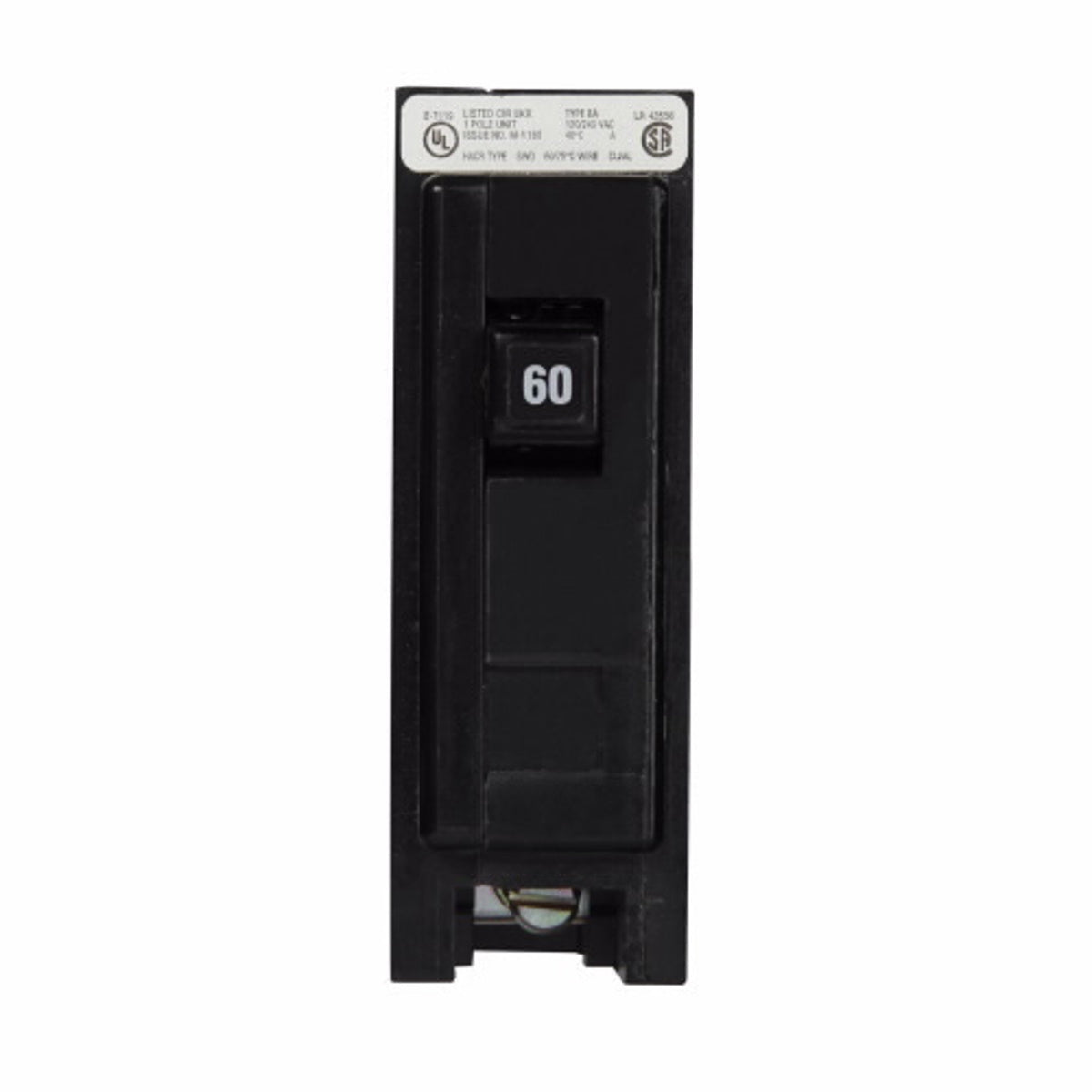

Eaton BAB1060 Quicklag Industrial Thermal Magnetic Circuit Breaker 60 Amp

Product Description

The Eaton BAB1060 Quicklag Industrial Thermal-Magnetic Circuit Breaker is a single-pole, non-interchangeable breaker rated at 60A, with a 10 kAIC interrupt rating and a voltage of 120/240V. Eaton's bolt-on miniature circuit breakers provide protection in panelboards and offer easy installation. They are switching duty rated for 120 VAC fluorescent light applications and UL 489 listed.

• Single-pole, non-interchangeable circuit breaker
• Rated at 60A with a 10 kAIC interrupt rating
• Suitable for 120/240V applications

Product Highlights

Provides superior protection in panelboards and offers easy installation. Switching duty rated for 120 VAC fluorescent light applications and UL 489 listed.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BAB1060
• Country of Origin: Dominican Republic

Technical Specifications

• GTiN: 00786679301609
• Type: Quicklag Industrial Thermal-magnetic Circuit Breaker
• Brand: Eaton
• Width: 1.2 in
• Height: 4.6 Inch
• Length: 3.7 Inch
• Voltage: 120/240 Volt
• Amperage: 60 Amp
• Trip Type: Non-Interchangeable
• Product UPC: 78667930160
• 12-Digit UPC: 786679301609
• Applications: Other|Generation - Renewable Energy - Alternative Energy|Generation - Conventional Energy - Conventional Energy|Datacenters - IT Space: CI and Hyper Converged|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other

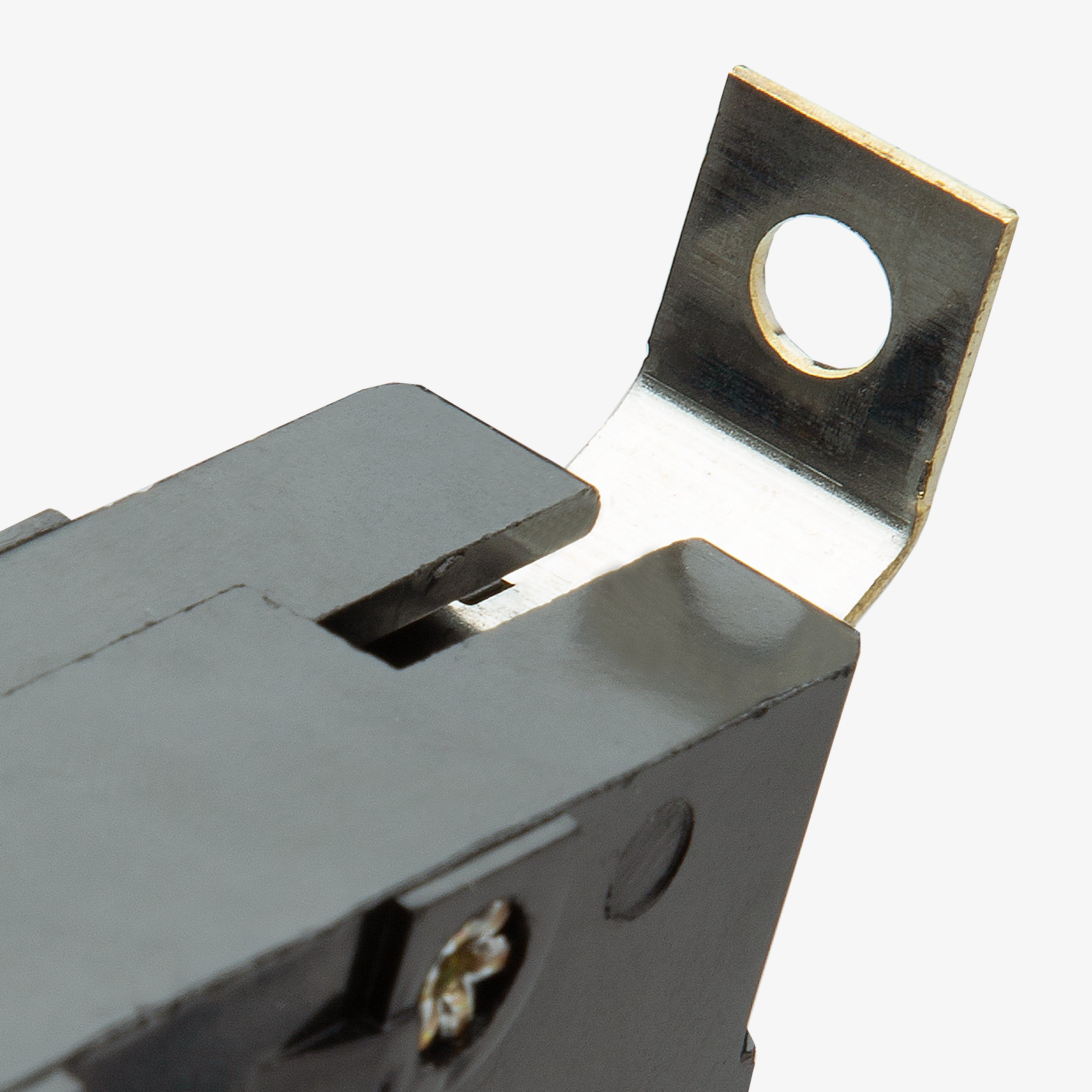

• Mounting Type: Bolt-On
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Circuit Breaker Type: BAB
• Catalog Number: BAB1060
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Standard: CSA Certified,UL Listed
• Item Type: Thermal magnetic circuit breakers
• Voltage Rating: 120/240 V
• Product Length/Depth: 3.7 in
• Product Height: 4.6 in
• Product Width: 1.2 in
• Product Weight: 0.35 lb
• Certifications: UL Listed CSA Certified
• Catalog Notes: HACR rated
• Product Type: Thermal magnetic circuit breakers
• Mounting Method: Bolt-on
• Number of poles: Single-pole
• Amperage Rating: 60 A
• Interrupt rating: 10 kAIC
• Voltage rating: 120/240 V
• Model Number: BAB1060
• Family: BAB Bolt-on miniature Quicklag breaker
• Poles: 1 pole
• Connection: Bolt-On
• Interrupting Capacity: 10,000/22,000 Amperes
• kAIC interrupt rating: 10 kAIC
• Listing: CSA Approved and UL Listed
• Series: BAB
• Part Number: BAB1060
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC
• Mounting Style: Bolt-On

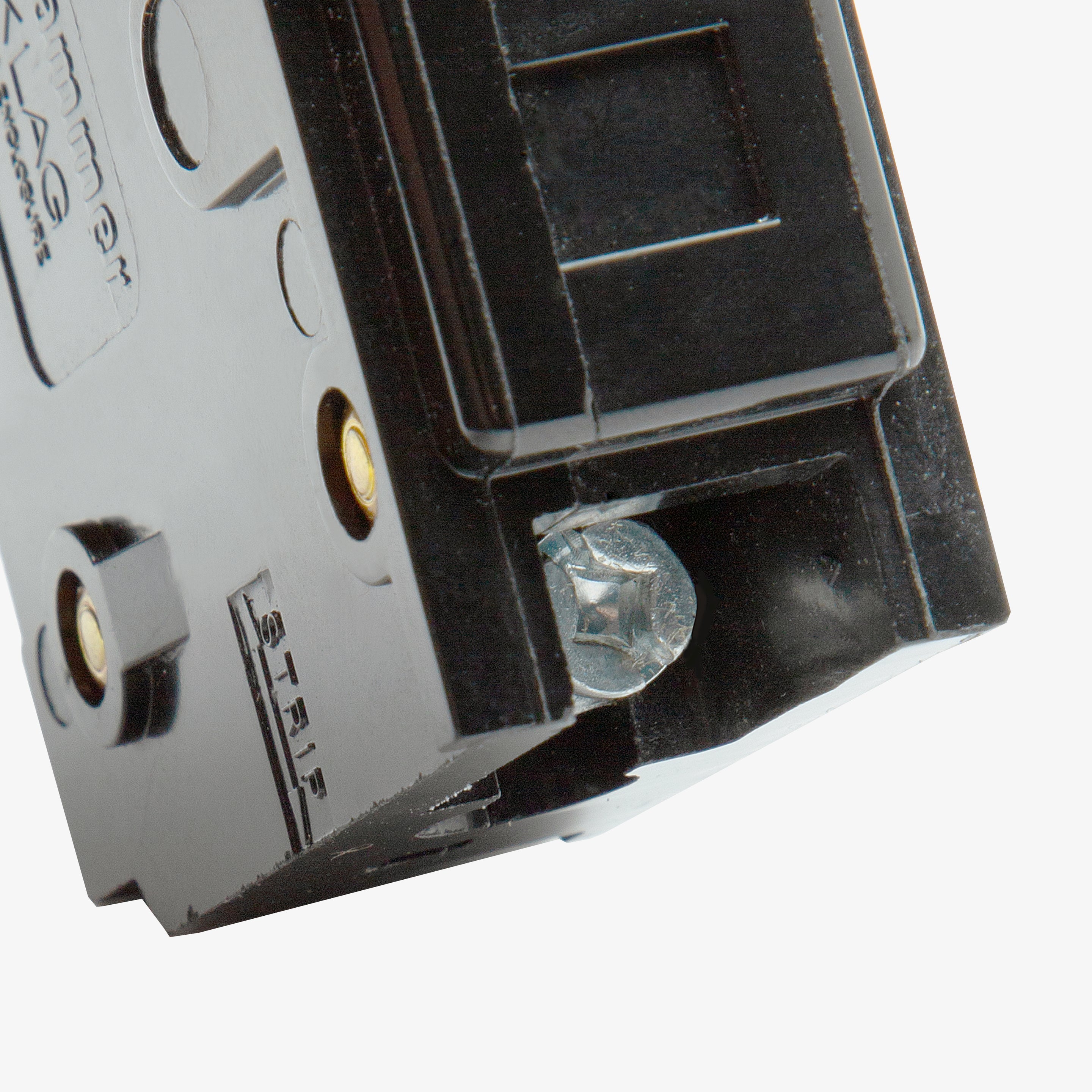

• Terminal Type: Box Lugs
• For Use With: Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 8-1/0 AWG (Cu/Al)
• Max Wire: 1/0 AWG
• Min Wire: 8 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock
• Standards: CSA C22.2 No. 5, HACR, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Current Rating: 60 Amps
