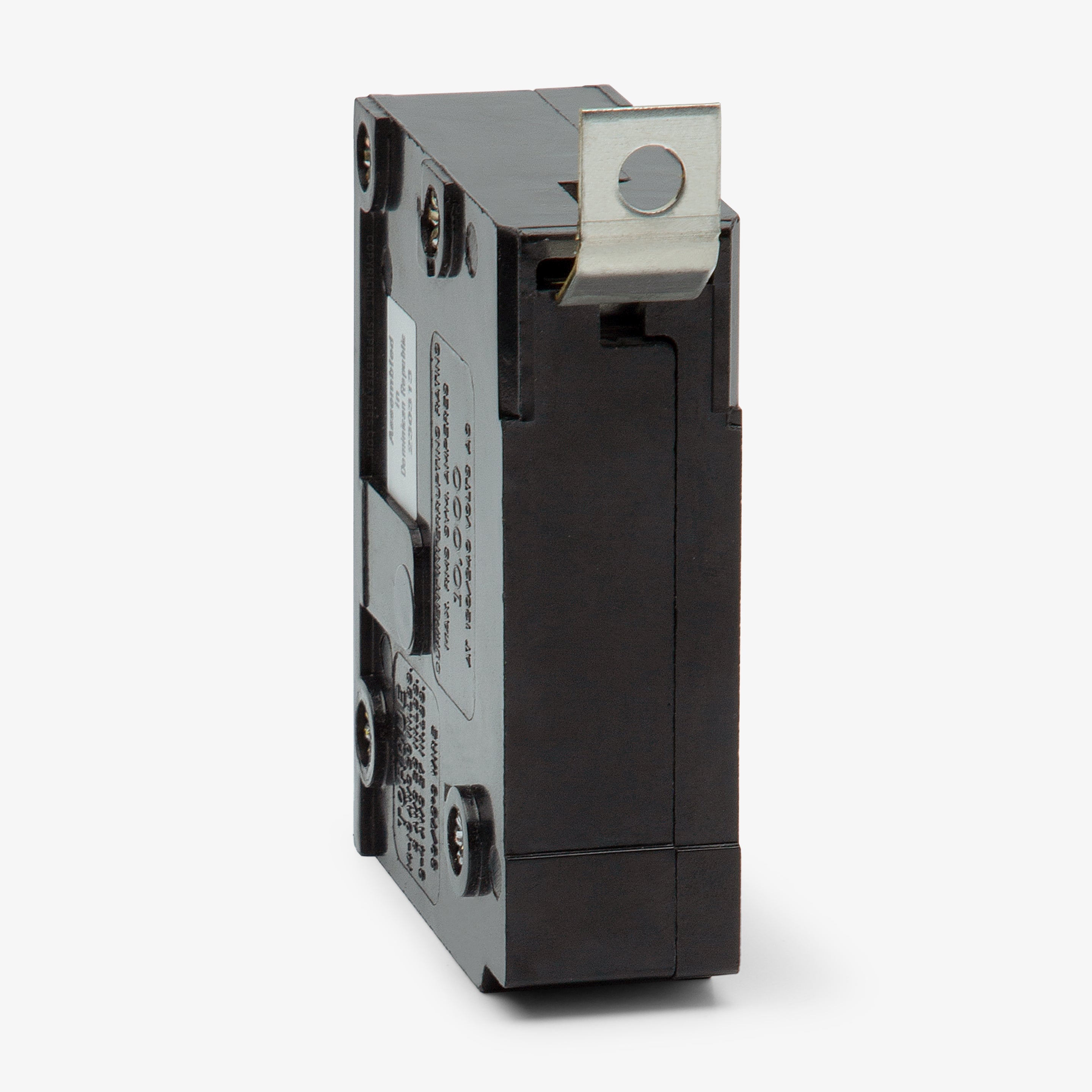

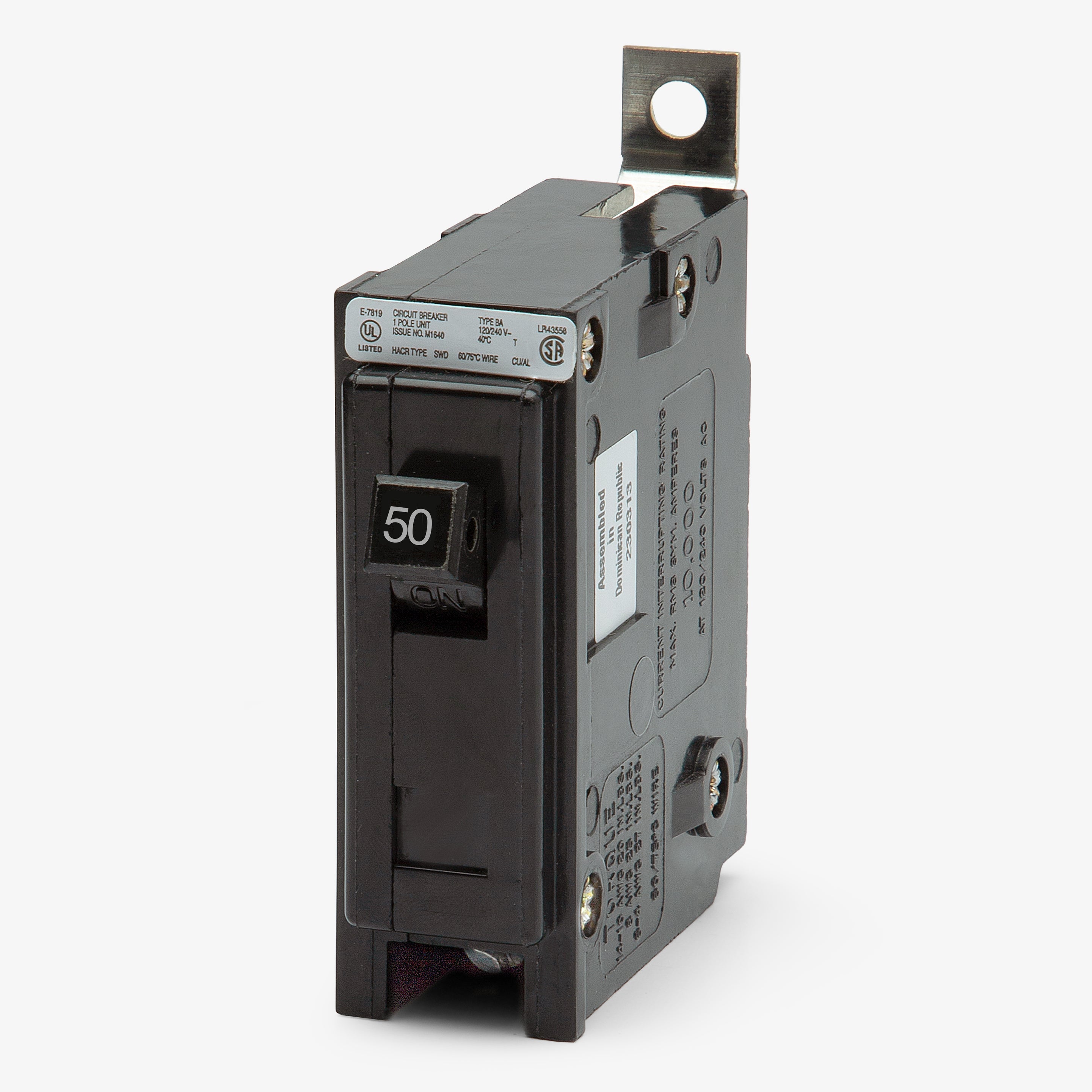

Eaton BAB1050 Quicklag Industrial Thermal Magnetic Circuit Breaker 50 A 120/240 V Single-pole

Product Description

The Eaton BAB1050 is a Quicklag industrial thermal-magnetic circuit breaker designed for high intensity discharge applications. This single-pole, non-interchangeable breaker provides 50 A protection with a 10 kAIC interrupting capacity, operating at 120/240 V. It is suitable for panelboards and features a bolt-on mounting type, ensuring secure installation.

• Provides 50 A, single-pole protection with a 10 kAIC interrupting capacity at 120/240 V.
• Features a non-interchangeable thermal-magnetic trip for high intensity discharge applications.
• Designed for bolt-on installation in panelboards, UL 489 listed, and HACR rated.

Product Highlights

Offers superior protection for panelboards, easy bolt-on installation, and is switching duty rated for 120 VAC fluorescent light applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BAB1050

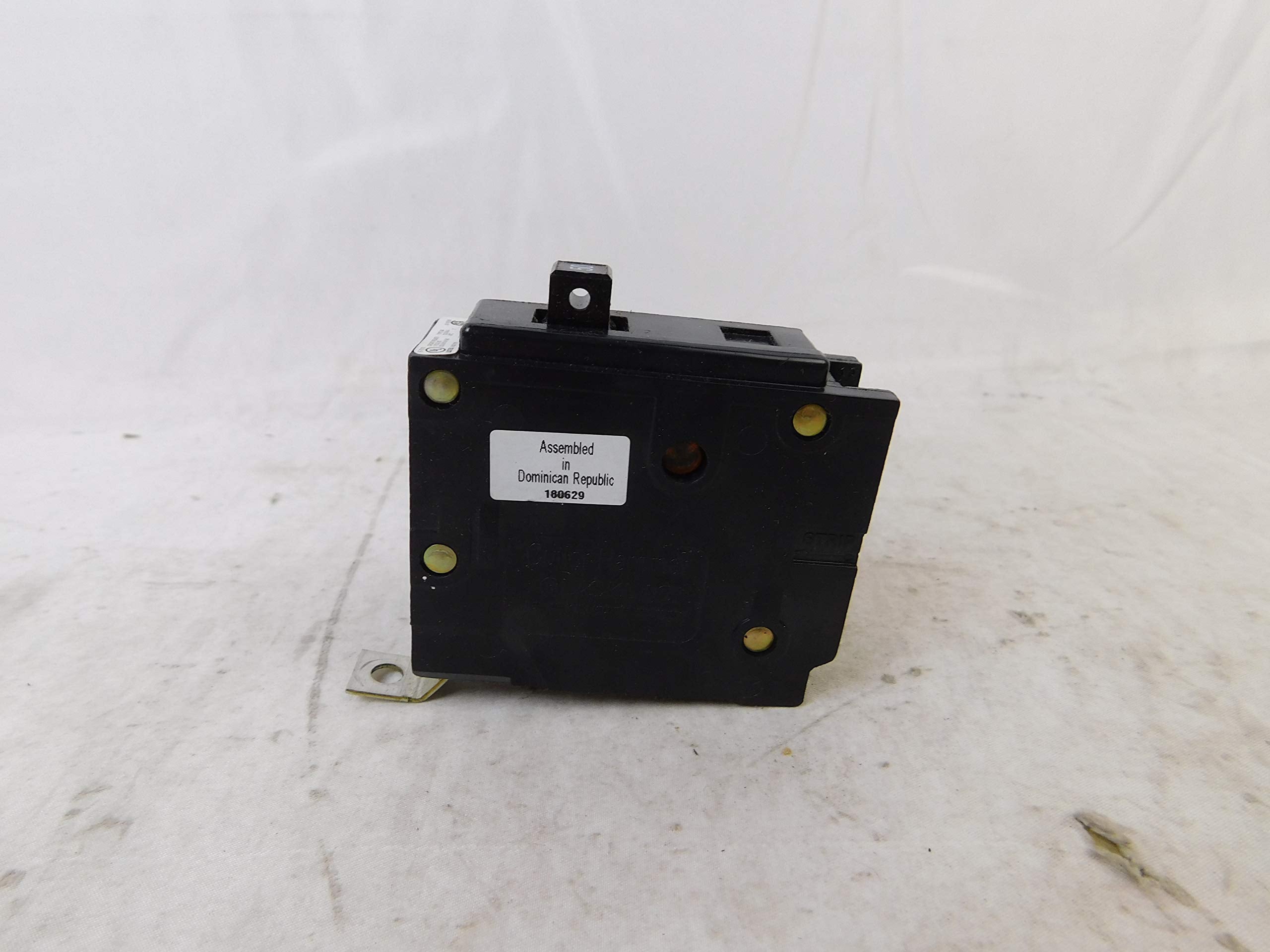

• Country of Origin: Dominican Republic

Technical Specifications

• Breaker Type: Quicklag Industrial Thermal-magnetic Circuit Breaker
• Voltage Rating: 120/240VAC, 24VDC, 48VDC, 62.5VDC
• Amperage Rating: 50 A
• Trip Type: Non-Interchangeable Thermal Magnetic

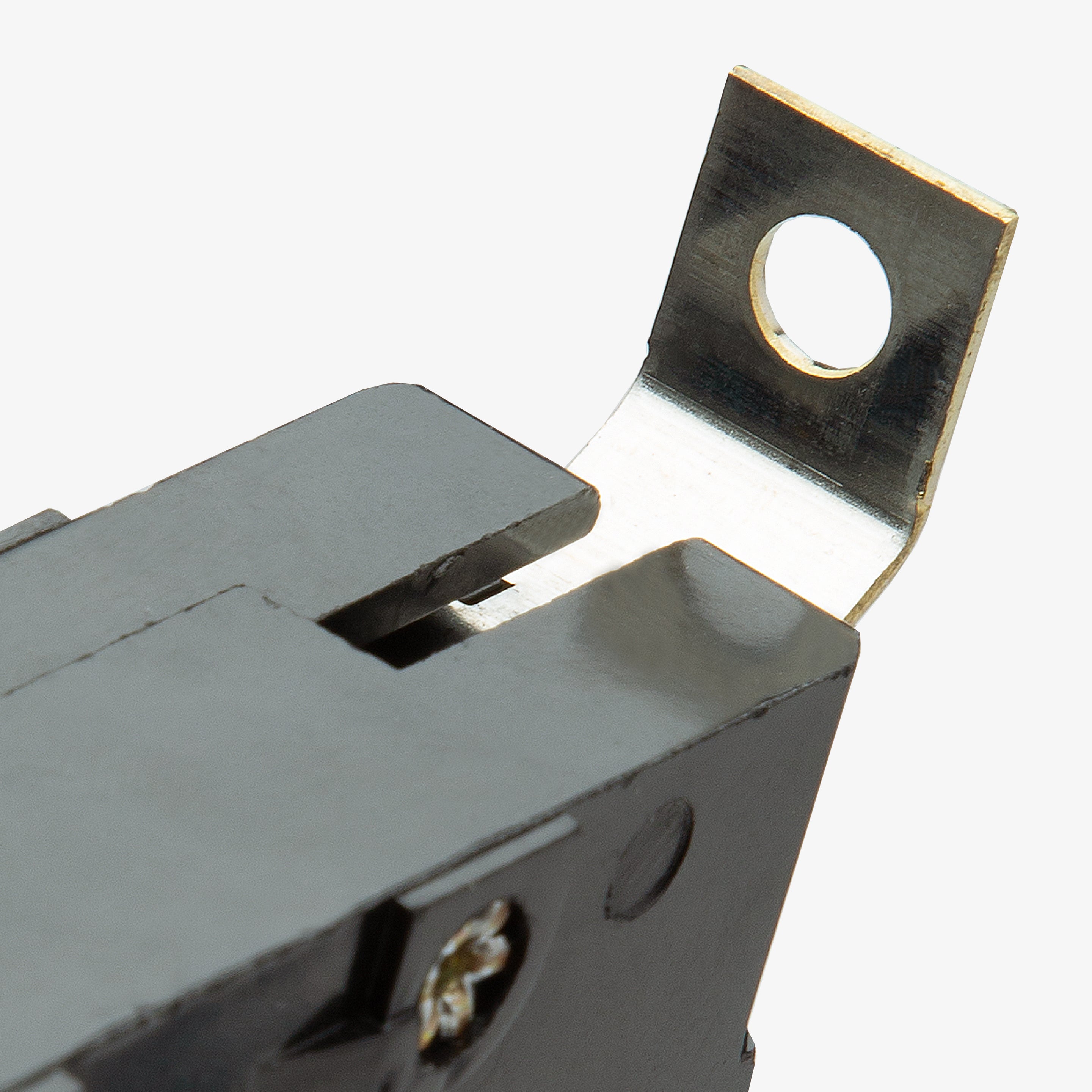

• Mounting Type: Bolt-On
• Number of Poles: 1
• Interrupt Rating: 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC
• Series: BAB
• Application: High Intensity Discharge, Generation - Renewable Energy, Conventional Energy, Datacenters, Marine Vessels and Equipment, Residential Buildings & Facilities
• Special Features: High intensity discharge
• Standards: CSA C22.2 No. 5, HACR, UL 489

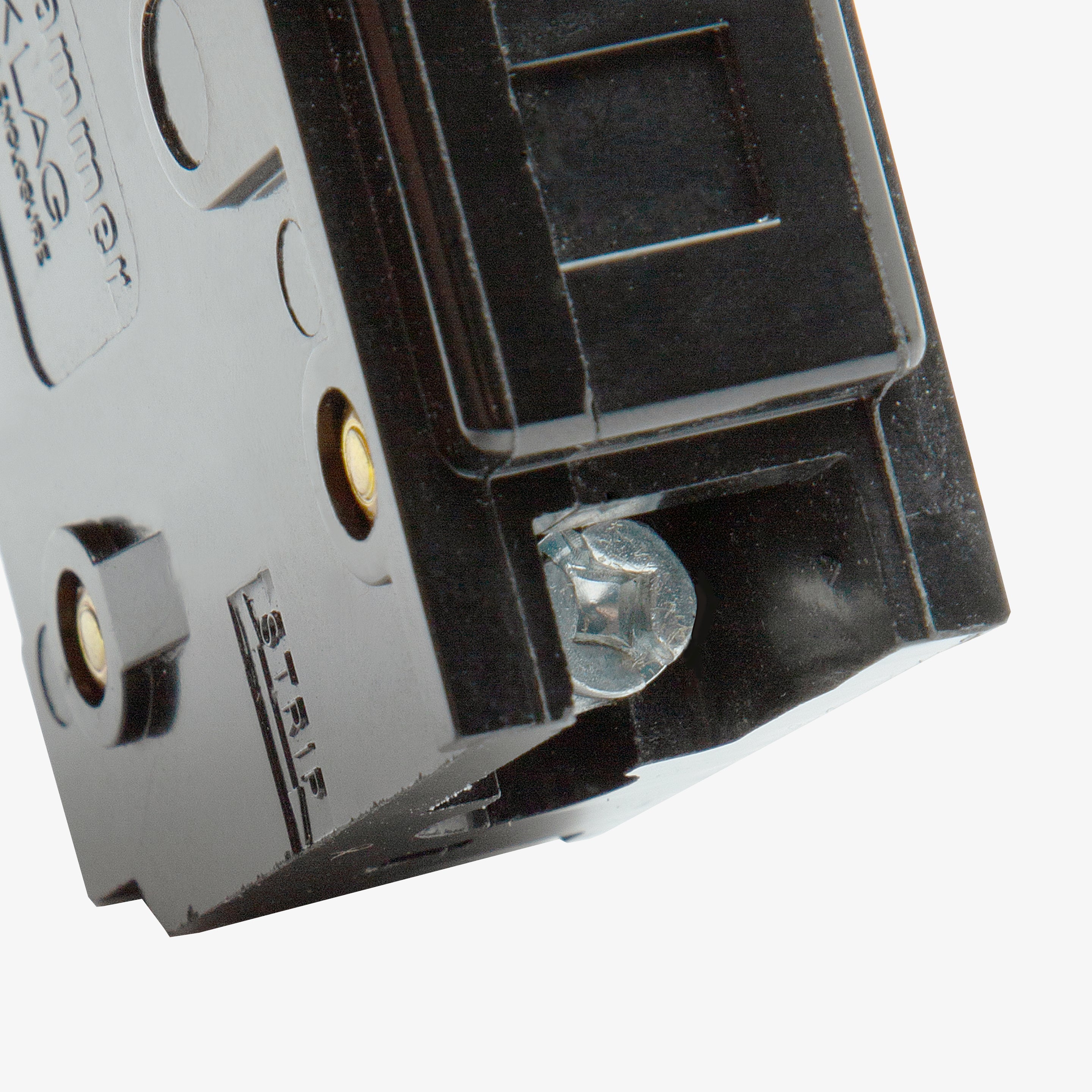

• Connection Type: Steel Box Lug
• Frequency Rating: 50/60 Hz
• Phase: 1
• Operating Temperature: 40 deg C
• Wire Gauge: 14-4 AWG (Al/Cu)
• Compatible Panelboards: Eaton Pow-R-Line, Westinghouse, Cutler-Hammer, Bryant
• Terminal Type: Steel Box Lug
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
