Product Description

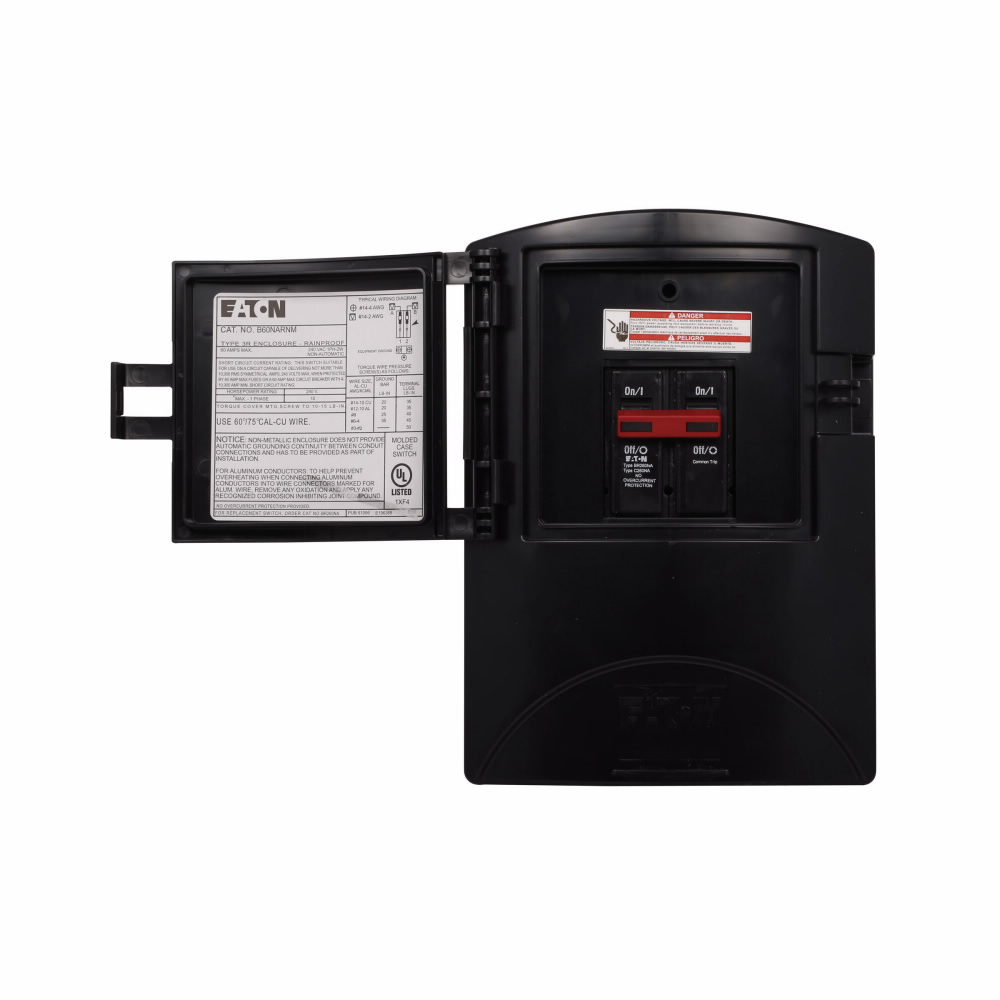

The Eaton B60NARNM is an air conditioning disconnect switch designed for use in residential and commercial applications. This molded case switch operates at 120/240 volts and handles up to 60 amps. It is ideal for controlling the power to air conditioning units, providing a safe means of disconnecting power for maintenance and service.
- Rated for 120/240 volts and 60 amps
- Includes a molded case design for durability
- Suitable for wire sizes ranging from fourteen to two AWG
Product Highlights

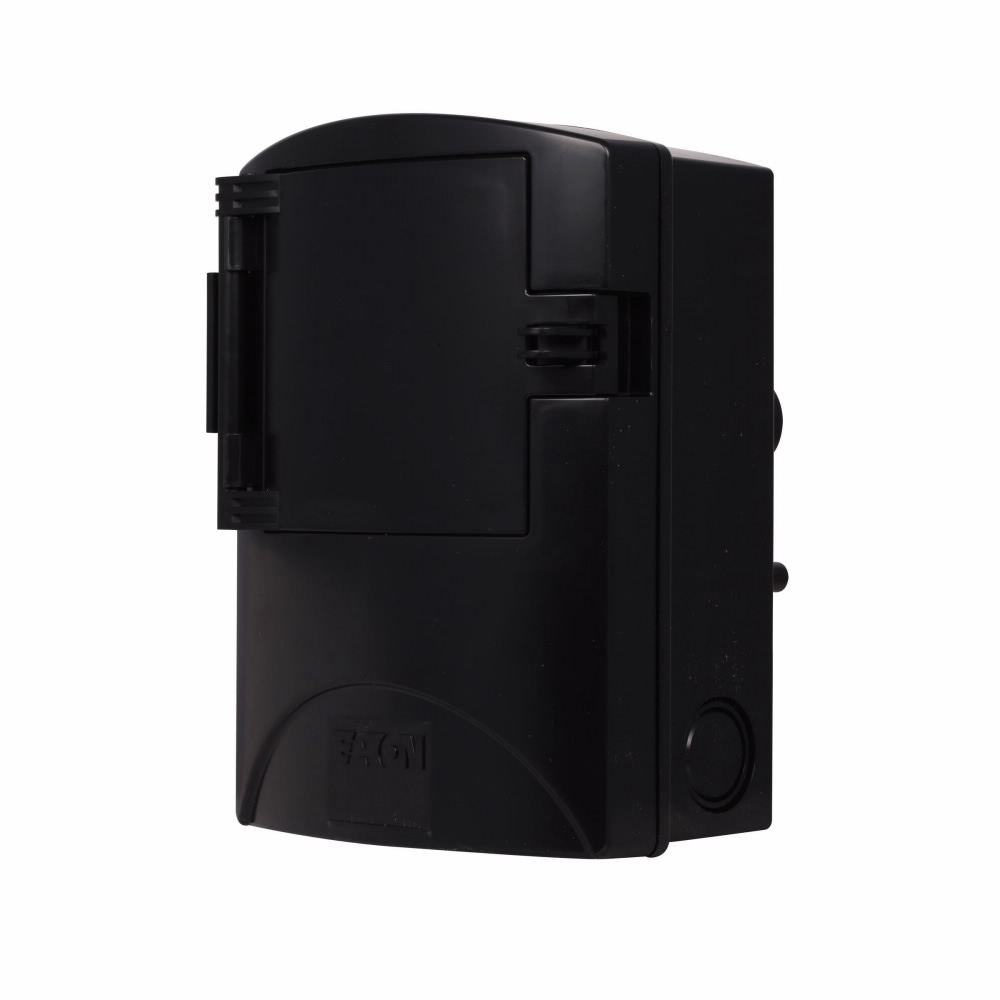

This Eaton switch features a polycarbonate enclosure rated NEMA 3R for outdoor use, protecting against rain and ice. It has an interrupt rating of 10 kAIC, making it suitable for various applications.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer: Cutler-Hammer / Eaton
Technical Specifications
-
Voltage: 120/240 Volt
-
Amperage: 60 Amp
-
Horsepower: 10 hp
-
Material: Polycarbonate
-
Type: Air Conditioning Disconnect
-
NEMA Size: 3R
-
Weight: 1.86 lb
-
Dimensions: 3.5 in (Width) x 8.63 in (Height) x 5 in (Length)
