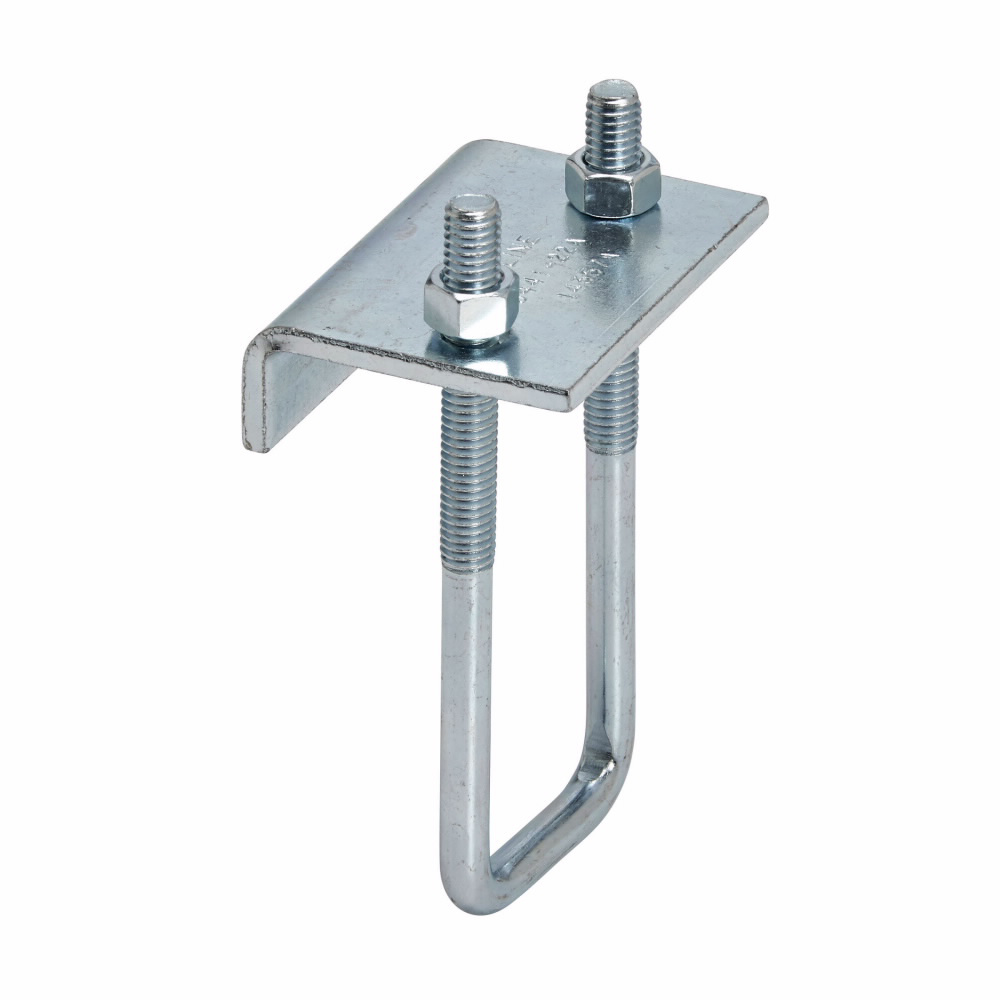

Eaton B441-22A Beam Clamp 1850 Lb Stainless Steel

Product Description

The EATON B441-22A is a stainless steel beam clamp from the B-Line series, rated at 1850 pounds load capacity. It is designed for use with 1-5/8 inch high strut channel and accommodates a beam thickness of 3/4 inches. Fabricated from Type 304 stainless steel, this clamp delivers corrosion resistance suitable for demanding mechanical, electrical, and plumbing support applications. Electricians, pipefitters, and mechanical contractors install this hardware to secure threaded rod and channel support systems to structural steel beams without drilling or welding.

This beam clamp is used in commercial and industrial construction where strut channel systems must be anchored to steel I-beams, wide-flange beams, or similar structural members. It is particularly common in mechanical rooms, data centers, industrial facilities, and commercial buildings where corrosion resistance is a requirement. The clamp pairs with standard 1-5/8 inch framing channel and is well-suited for overhead pipe, conduit, cable tray, and duct support systems requiring a secure, non-penetrating beam attachment.

Key Features

• 1850 lb load rating for heavy-duty overhead support applications
• Compatible with 1-5/8 inch high strut channel for standard framing system integration
• Accommodates beam flange thickness up to 3/4 inches
• Type 304 stainless steel construction provides corrosion resistance in wet or chemically active environments
• No drilling or welding required for beam attachment

Compatibility

Designed for use with 1-5/8 inch high strut channel systems as an OEM-style beam attachment fitting for structural steel support applications.

Installation Notes

Installation is typically performed by licensed electricians, pipefitters, or mechanical contractors working under applicable building codes. Shut down and de-energize any nearby electrical systems before working overhead on beam attachment hardware. Verify the structural beam flange thickness does not exceed 3/4 inches before installing. Do not exceed the rated 1850 pound load capacity, and confirm all hardware is properly torqued per the project engineer or authority having jurisdiction requirements.

Technical Specifications

• Load Capacity: 1850 pounds
• Compatible Channel Size: 1-5/8 inches high
• Maximum Beam Thickness: 3/4 inches
• Material: Stainless Steel Type 304
• UPC: 781011552749

Standard Information

• Brand: EATON
• Manufacturer Part Number: B441-22A
