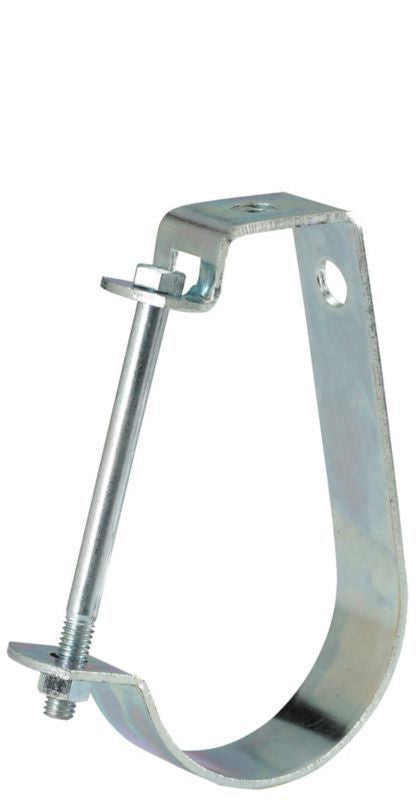

Eaton B3690-2-1/2ZN Adjustable J-hanger 2-1/2 in

Product Description

Eaton B3690-2-1/2ZN is an adjustable J-hanger for supporting pipe or conduit, intended for wall mounting. The steel hanger measures 1.25 in H x 5.974 in L x 4.131 in W and features a yellow zinc chromate finish. It is designed for insulated pipe when used with B3151 shield and supports up to 2.5 in maximum pipe size. Product weight is 0.61 lb.

• Adjustable J-hanger design for pipe or conduit support
• Steel construction with yellow zinc chromate finish for corrosion protection
• Wall mounting; dimensions 1.25 in H x 5.974 in L x 4.131 in W; supports up to 2.5 in pipe

Product Highlights

Wall-mounted adjustable J-hanger, steel construction, 2.5 in maximum pipe size

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: B3690-2-1/2ZN

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: B3690-2-1/2ZN
• Catalog Number: B3690-2 1/2 ZN
• Product Name: Eaton B-Line series adjustable J-hanger
• Model: B3690
• Type: Adjustable J-hanger
• Material: Steel
• Finish: Yellow zinc chromate
• Mounting Method: Wall
• Maximum Pipe Size: 2.5 in
• Product Height: 1.25 in
• Product Length/Depth: 5.974 in
• Product Width: 4.131 in
• Product Weight: 0.61 lb
• Application: Used for insulated pipe with B3151 shield
• UPC: 782051707236
• Hanger Mounting Size: 1/2 in-13 TPI (rod)
• Load Rating: 500 Pound
• Standards: ANSI/MSS-SP-69; SP-58 Type 5
• Process: Hot rolled, pickled and oiled
• Certifications: Not Applicable
