Eaton B3690-1ZN Adjustable J Hanger (1 Inch)

Product Description

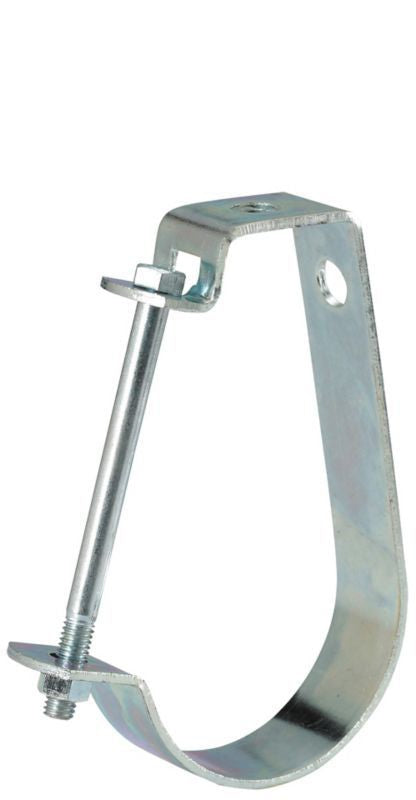

Eaton B3690-1ZN is an adjustable J-type pipe hanger for 1 inch pipe, constructed from steel with a yellow zinc chromate finish. The hanger mounts with 3/8-16 TPI hardware, measures 0.75 in H x 3.75 in L x 2.25 in W, and is rated for a 400 pound load. It is intended for wall mounting and can be used with the B3151 shield on insulated pipe.

• Adjustable J-type design for 1 inch pipe with 3/8-16 TPI hanger mounting
• Steel construction with yellow zinc chromate finish; dimensions 0.75 in x 3.75 in x 2.25 in
• 400 pound load rating; wall mount type; compatible with B3151 shield for insulated pipe

Product Highlights

Wall-mount adjustable J-hanger for 1 in pipe; 0.75 in H, 3.75 in L, 2.25 in W; 3/8-16 TPI; 400 lb load rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: B3690-1ZN
• Country of Origin: USA

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: B3690-1ZN
• Catalog Number: B3690-1 ZN
• Product Type: Adjustable J-hanger
• Material: Steel
• Finish: Yellow zinc chromate
• Pipe Diameter: 1 Inch
• Minimum Pipe Size: 1 Inch
• Maximum Pipe Size: 1 Inch
• Hanger Mounting Size: 3/8-16 TPI
• Rod Size: 3/8-16"
• Dimensions: 0.75 in x 3.75 in x 2.25 in
• Height: 0.75 Inch
• Length: 3.75 Inch
• Width: 2.25 Inch
• Load Rating: 400 Pound
• Mounting Type: Wall
• Applicable Standard: ANSI/MSS SP-69, SP-58 Type 5
• Used On: Insulated pipe with B3151 shield
• Product Weight: 0.19 lb
• Country Of Origin: USA
• UPC: 782051707175
