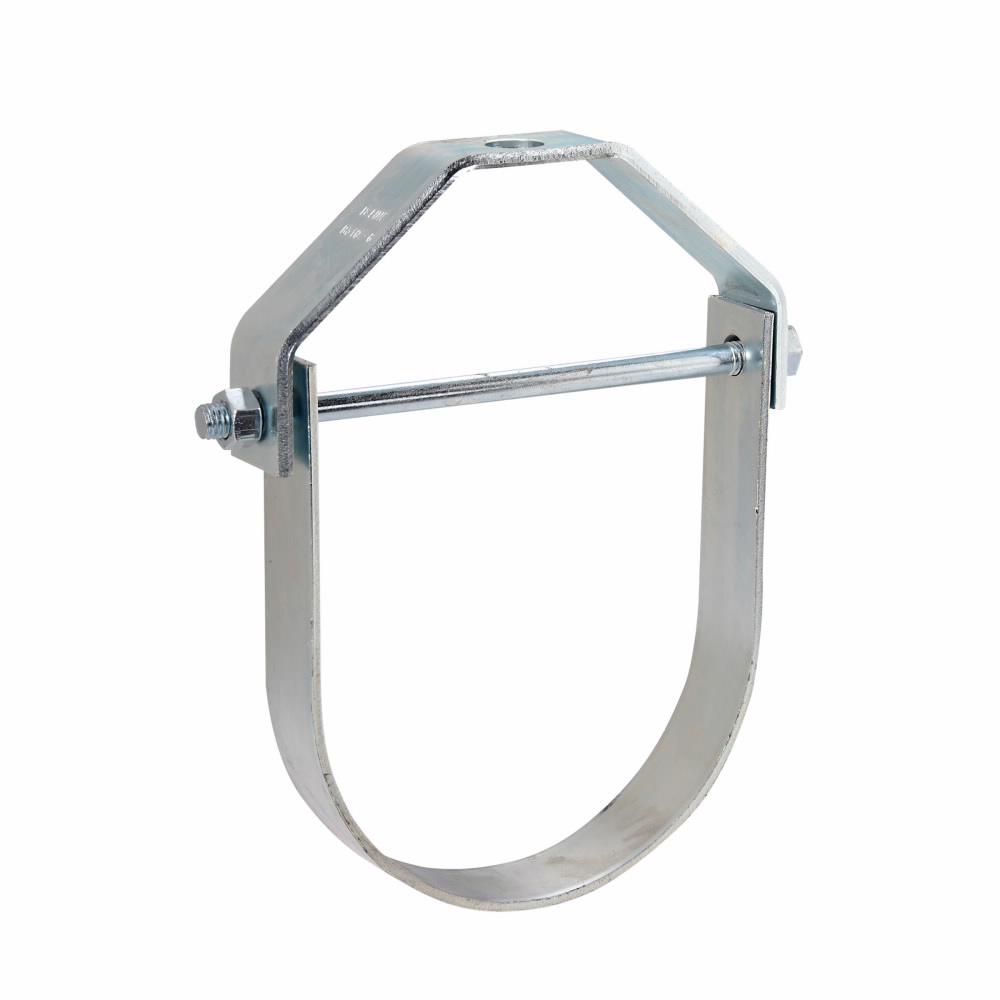

Eaton B3100Z8 Clevis Hanger 8 Inch Pipe Zinc Chromate Steel

Product Description

The EATON B3100Z8 is a Type 1 Slide Rite clevis hanger from the B-Line series, engineered for supporting 8-inch pipe in commercial and industrial piping systems. Constructed from steel with a zinc chromate finish, this hanger provides corrosion resistance in demanding mechanical, plumbing, and HVAC installations. The Slide Rite design allows for lateral pipe adjustment during installation, which simplifies alignment in tight or congested spaces. At 12.938 inches in length, 11 inches in width, and 1.75 inches in height, the hanger accommodates standard pipe loads while maintaining a low-profile footprint. It accepts a 3/4-10 rod size for threaded rod suspension from structure above.

This clevis hanger is suited for use in mechanical rooms, above-ceiling pipe runs, and structural support applications where 8-inch pipe must be suspended from threaded rod. It is commonly installed by licensed plumbers, pipefitters, and mechanical contractors in commercial construction and industrial facilities. The zinc chromate finish makes it appropriate for indoor environments and moderate-exposure applications. The B-Line series is a recognized standard in pipe support systems across HVAC, plumbing, and process piping trades.

Key Features

• Designed for 8-inch pipe size with Type 1 Slide Rite clevis configuration for lateral adjustment
• Steel construction with zinc chromate finish for corrosion resistance
• Accepts 3/4-10 threaded rod for secure suspension from overhead structure
• Compact profile: 12.938 inches length, 11 inches width, 1.75 inches height
• Part of the EATON B-Line series, a widely specified pipe support product line in mechanical construction

Compatibility

Designed as an OEM-style replacement and standard fitment clevis hanger for 8-inch pipe support applications using 3/4-10 threaded rod suspension systems.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters following applicable mechanical and plumbing codes, including IPC and ASME B31 standards for pipe support. Ensure the threaded rod and structural attachment point are rated for the intended pipe load before installation. Inspect the hanger and rod threads for damage before assembly. Do not modify the hanger by cutting, welding, or bending, as this will compromise its load rating.

Technical Specifications

• Pipe Size: 8 inches
• Rod Size: 3/4-10 inches
• Length: 12.938 inches
• Width: 11 inches
• Height: 1.75 inches
• Material: Steel
• Finish: Zinc Chromate
• Type: Type 1 Slide Rite Clevis Hanger
• UPC: 781011050733

Standard Information

• Brand: EATON
• Manufacturer Part Number: B3100Z8
