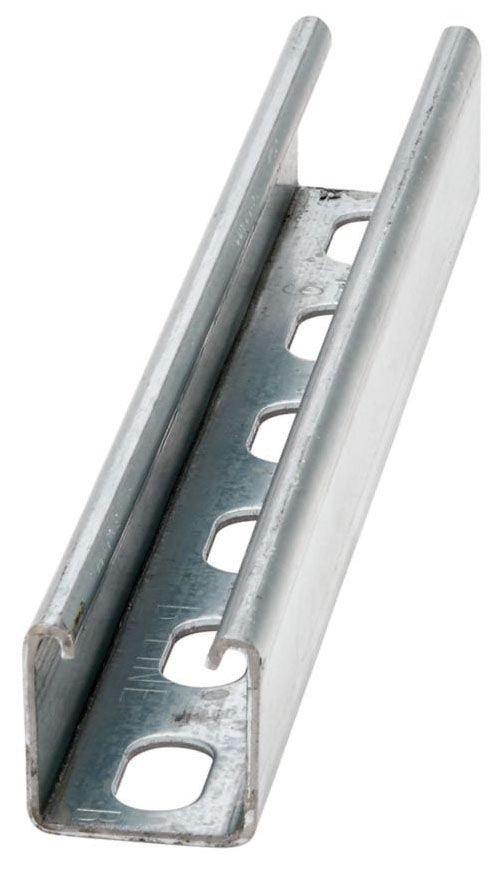

Eaton B22SH-240GLV Slotted Steel Strut Channel 20 Ft

Product Description

The EATON B22SH-240GLV is a galvanized slotted strut channel designed for structural support applications in electrical, mechanical, and plumbing installations. This 20-foot channel provides a rigid, corrosion-resistant mounting surface for conduit, pipe, cable tray, equipment, and other trade hardware. The hot-dip or mill galvanized finish protects against rust in both indoor and outdoor environments. At 36.4 pounds per 20-foot length, this channel is built for demanding load-bearing tasks. Electricians, pipefitters, and mechanical contractors use slotted strut channel as the backbone of suspended and wall-mounted support systems.

Slotted strut channel of this type is used across residential, commercial, and light industrial projects. Common applications include supporting electrical conduit runs, HVAC equipment hangers, plumbing pipe supports, cable tray framing, and seismic bracing assemblies. The 20-foot length suits long overhead runs and minimizes the number of field splices required. It is compatible with the full range of B-Line series strut fittings, brackets, and hardware for complete support system assemblies.

Key Features

• Galvanized finish provides corrosion resistance for indoor and outdoor use
• Slotted profile accepts standard strut nuts and bolts for flexible hardware positioning
• 20-foot length reduces splice points on long conduit or pipe runs
• Heavy-duty steel construction supports significant load-bearing requirements
• Compatible with standard B-Line series strut fittings and accessories

Compatibility

Designed as an OEM-style replacement and standard-stock slotted strut channel compatible with B-Line series strut system fittings, nuts, and support hardware used in electrical conduit, pipe, and mechanical equipment support assemblies.

Installation Notes

Slotted strut channel is typically installed by licensed electricians, pipefitters, or mechanical contractors in accordance with NEC, IPC, and IFGC support-spacing requirements as applicable to the trade. Cut channel to length using a steel-rated saw or grinder and deburr all cut edges before installing hardware. De-energize all circuits and shut off relevant utilities before working in proximity to existing electrical or mechanical systems. Verify that fasteners, anchors, and load ratings meet the requirements of the applicable structural and trade codes for the installation.

Technical Specifications

• Finish: Galvanized
• Channel Type: Slotted Strut Channel
• Length: 20 feet
• Weight: 36.4 pounds
• UPC: 78101121335

Standard Information

• Brand: EATON
• Manufacturer Part Number: B22SH-240GLV
