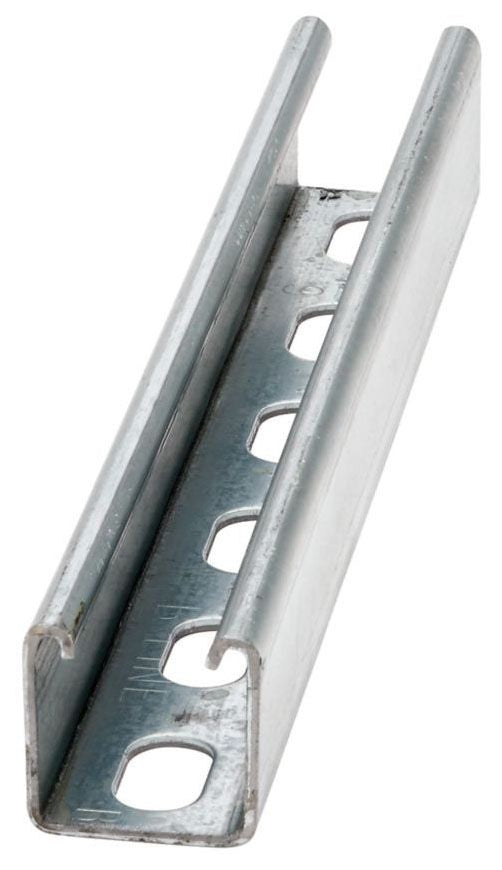

Eaton B22SH-120GLV Slotted Channel Strut Galvanized

Product Description

The EATON B22SH-120GLV is a galvanized steel slotted channel strut designed for structural support applications in electrical, mechanical, and plumbing installations. This 10-foot length of B-Line series channel provides a rigid, slotted profile that accepts standard strut hardware, including nuts, bolts, and beam clamps, allowing trades to build support frameworks, conduit hangers, and equipment mounts without welding or drilling new holes. The hot-dipped or pre-galvanized finish provides corrosion resistance suited for both indoor and damp-location installations. Licensed electricians, pipefitters, and mechanical contractors regularly specify this channel for panel supports, cable tray framing, and pipe runs.

This slotted channel is used in commercial and light industrial construction where a reliable, field-adjustable support system is required. Typical applications include supporting conduit runs, mechanical piping, HVAC ductwork hangers, and equipment mounting frames. The 10-foot length is a standard job-site size that works with strut fittings, splice plates, and accessories common across the trade. It is suitable for ceiling, wall, and floor-mount configurations depending on the hardware selected.

Key Features

• Galvanized steel finish for corrosion resistance in damp or exposed environments
• Slotted profile accepts standard strut hardware without field drilling
• 10-foot length suits common commercial and light industrial framing layouts
• Compatible with the full range of B-Line series strut fittings and accessories
• Rigid construction supports conduit, pipe, and mechanical equipment loads

Compatibility

Designed as an OEM-style replacement and standard fitment for B-Line series strut support systems used in electrical, mechanical, and plumbing construction applications.

Installation Notes

Installation is performed by licensed electricians, pipefitters, or general contractors following applicable NEC, IPC, or IFGC support-spacing requirements. De-energize any adjacent electrical systems before working in the installation area. Secure channel to structure using appropriate anchors rated for the intended load. Cut to length with a reciprocating saw or angle grinder and deburr cut ends before installing hardware.

Technical Specifications

• Material: Galvanized Steel
• Length: 120 inches (10 feet)
• Weight: 18.2 pounds
• UPC: 78101121330

Standard Information

• Brand: EATON
• Manufacturer Part Number: B22SH-120GLV
