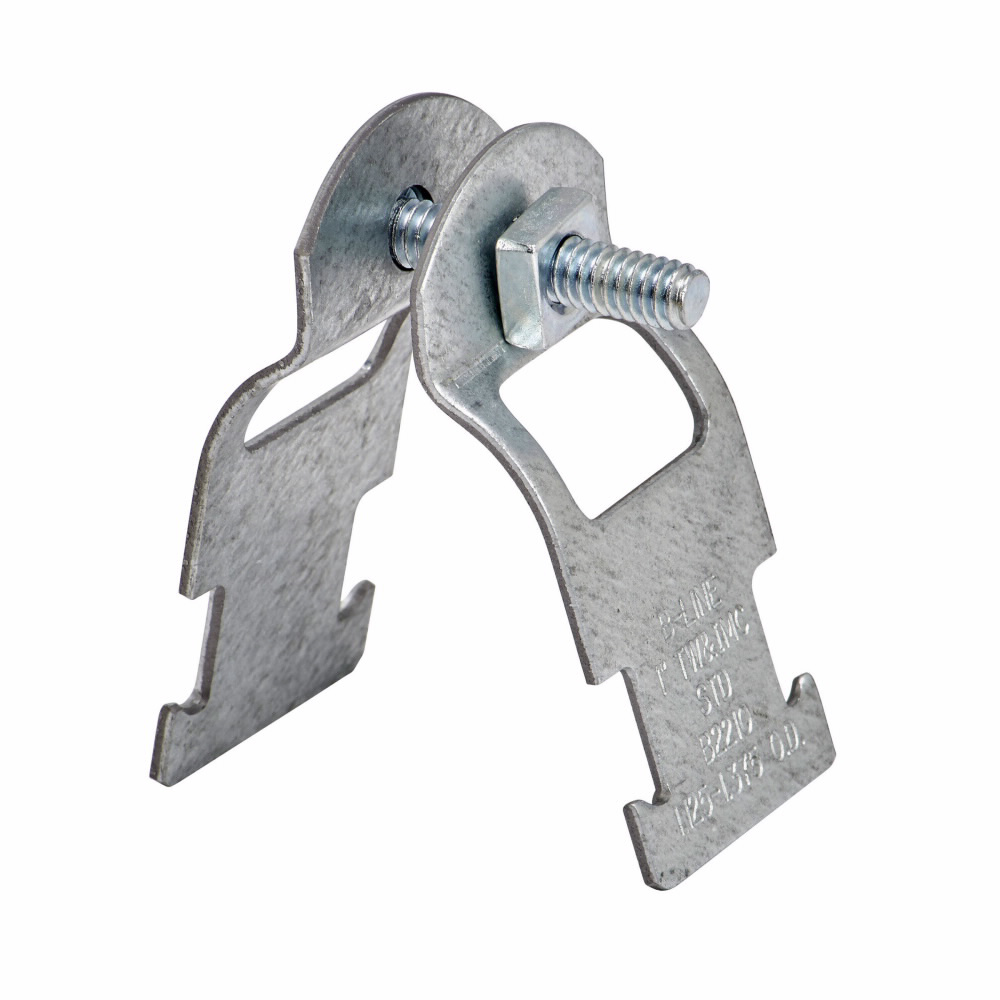

Eaton B2213ZN Multi-grip Pipe Clamp 600 Lbs Steel

Product Description

The EATON B2213ZN is a B-Line series multi-grip pipe clamp designed for thinwall conduit installations in strut-based support systems. Fabricated from steel with an electro-plated zinc finish, this clamp delivers a rated load capacity of 600 pounds and comes supplied with a combination recess hex head machine screw for straightforward field assembly. The compact profile measures 4 inches in length and 1.25 inches in width, making it well-suited for tight strut channel runs. Electricians and mechanical contractors rely on this clamp where secure, corrosion-resistant conduit support is required in commercial and industrial applications.

The B2213ZN is intended for use with thinwall conduit supported on standard strut channel systems. It is a practical choice for EMT conduit runs in electrical distribution, mechanical rooms, and exposed-structure installations where a reliable, load-rated pipe clamp with a corrosion-resistant finish is specified. The included combination recess hex head machine screw allows the clamp to seat directly into standard strut channel without additional hardware in most applications.

Key Features

• 600-pound load rating for dependable conduit support in demanding installations
• Steel construction with electro-plated zinc finish for corrosion resistance
• Multi-grip design accommodates thinwall conduit securely in strut channel
• Includes combination recess hex head machine screw for direct strut mounting
• Compact 4-inch length and 1.25-inch width fits standard strut channel profiles

Compatibility

Designed as an OEM-style replacement and standard-fit component for thinwall conduit support on B-Line series strut channel systems.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for conduit support and spacing. De-energize all circuits in the work area before securing conduit runs. Seat the included machine screw fully into the strut channel nut before tightening to ensure proper clamp engagement. Do not exceed the rated 600-pound load capacity.

Technical Specifications

• Load Capacity: 600 pounds
• Length: 4 inches
• Width: 1.25 inches
• Height: 0.0966 inches
• Material: Steel
• Finish: Electro-plated zinc
• Included Hardware: Combination recess hex head machine screw
• UPC: 781011604639

Standard Information

• Brand: EATON
• Manufacturer Part Number: B2213ZN
