Eaton b204zn Channel End Cap Zinc Plated B54 Strut

Product Description

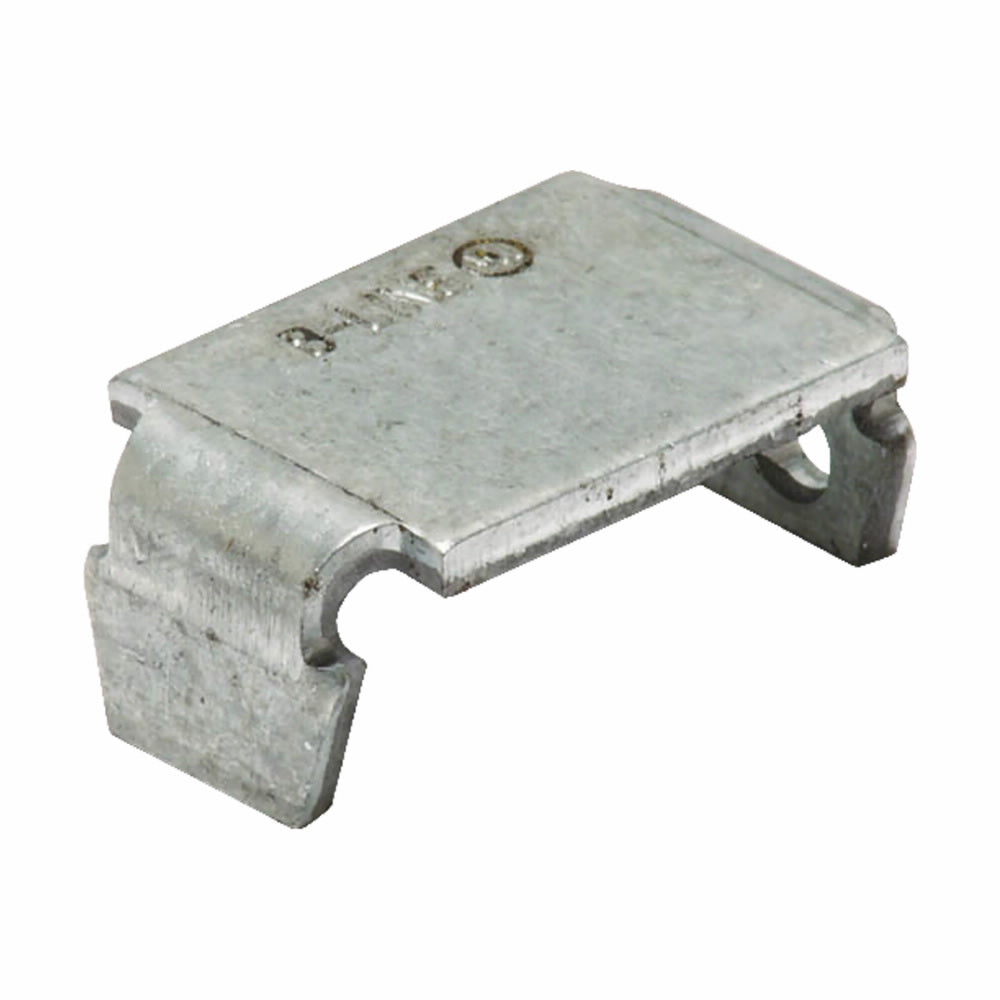

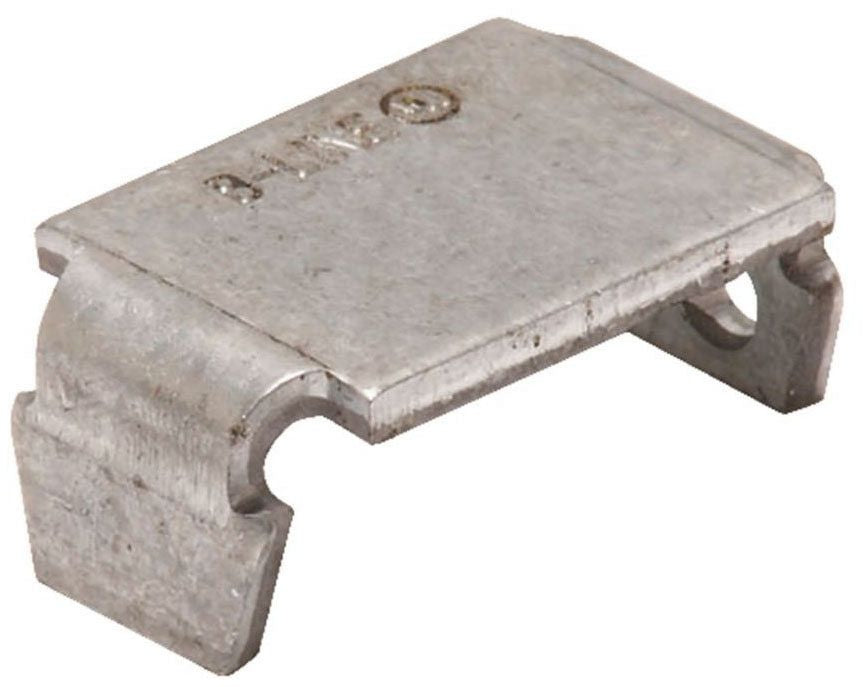

The EATON b204zn is a Type X blank end cap designed to close off the open ends of B54 series strut channel. Fabricated from ASTM A1011/A653/B633 carbon steel and finished with zinc electroplating for corrosion resistance, this fitting provides a clean, protected terminal end on installed channel runs. It fits a 1-5/8 inch wide by 13/16 inch deep channel profile and installs without tools in most applications. Electricians, mechanical contractors, and strut system installers use this cap to finish channel installations, prevent debris entry, and eliminate sharp open edges at termination points. The part is UL listed and manufactured in the USA.

The b204zn is used in commercial and industrial electrical, mechanical, and structural support installations wherever B54 series strut channel is deployed. Common applications include cable tray support systems, conduit hangers, pipe support frameworks, and equipment mounting structures in both new construction and retrofit work. It is suited for indoor installations and light-duty environments where zinc electroplating provides adequate protection against moisture and mild corrosion exposure.

Key Features

• Fits B54 series strut channel with 1-5/8 inch width and 13/16 inch depth
• ASTM A1011/A653/B633 carbon steel construction — hot rolled, pickled and oiled
• Zinc electroplated finish for corrosion resistance
• Blank configuration covers channel end completely with no knockout or opening
• UL listed for use in listed strut channel assemblies
• Made in the USA by Eaton B-Line Systems Inc.

Compatibility

Designed for use with EATON B-Line B54 series strut channel with a 1-5/8 inch channel width and 13/16 inch channel depth.

Installation Notes

Installation is performed by electricians or mechanical contractors as part of a strut channel support system. De-energize any adjacent electrical equipment before working in the area. Snap or fasten the end cap onto the open end of the channel per the channel manufacturer instructions. Consult applicable NEC or local mechanical code requirements for support system assembly in your jurisdiction.

Technical Specifications

• Material: ASTM A1011/A653/B633 Carbon Steel
• Finish: Zinc Electroplated
• Channel Width: 1-5/8 inches
• Channel Depth: 13/16 inches
• Channel Thickness: 14 gauge (steel)
• Height: 0.827 inches
• Configuration: Blank
• Weight (per carton): 5 pounds
• Applicable Standard: UL
• Country of Origin: USA

Standard Information

• Brand: EATON
• Manufacturer Part Number: b204zn
