Eaton B2016 Strut Pipe Clamp 1000 Lb 3.5 in Rigid Conduit

Product Description

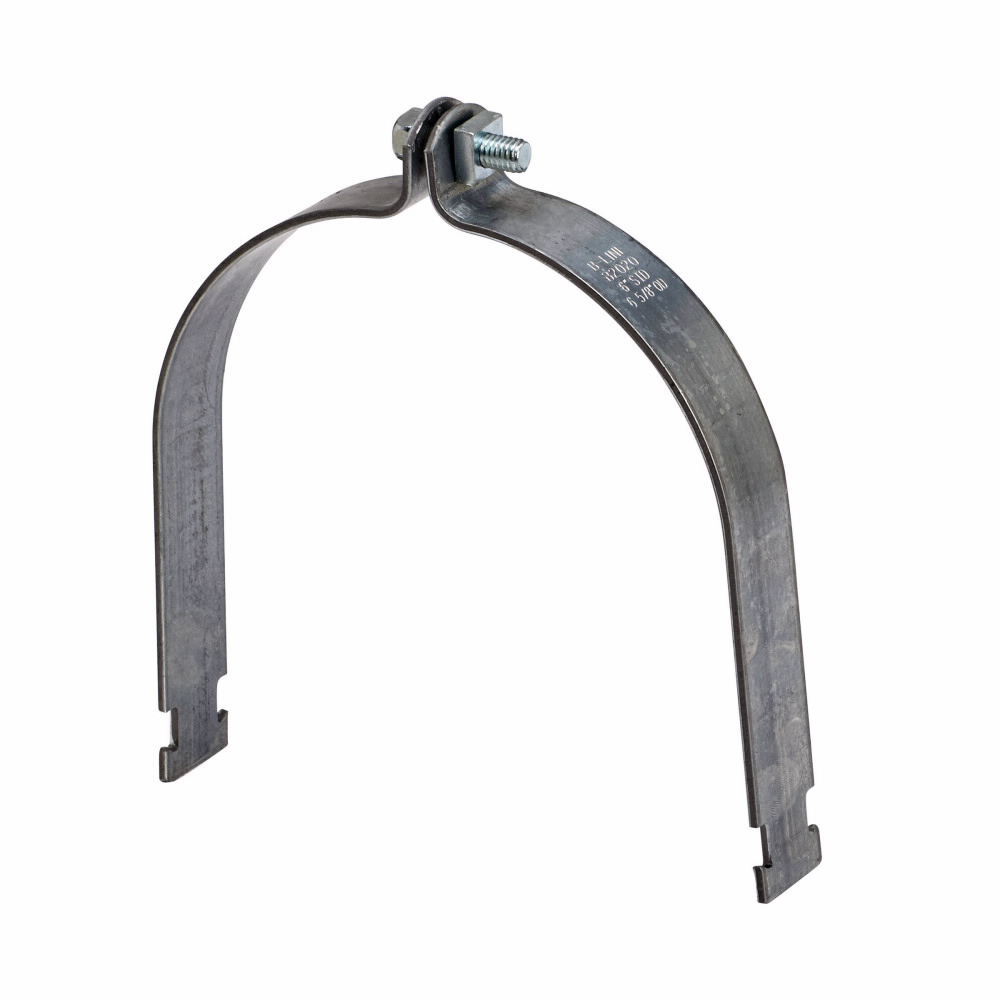

The EATON B2016 is a stainless steel strut pipe clamp from the B-Line series, designed to secure 3.5-inch rigid conduit or pipe with a 4-inch outer diameter to standard strut channel. Constructed from Type 304 stainless steel, it delivers corrosion resistance suited for wet, outdoor, and industrial environments. The clamp ships with a combination recess hex head machine screw for straightforward mounting. It carries a 1000-pound load rating, making it appropriate for medium-duty conduit support applications in commercial and industrial electrical installations. Electricians and pipefitters use this hardware when strut-based support systems are required by code or layout.

This clamp is used in commercial and industrial settings where conduit or pipe must be supported on strut channel systems. Typical applications include electrical conduit runs in mechanical rooms, rooftop installations, and process piping where moisture or corrosive conditions make stainless steel the preferred material over standard carbon steel hardware. The clamp is dimensioned at 0.104 inches in height, 6.141 inches in length, and 1.25 inches in width, fitting standard B-Line strut profiles.

Key Features

• Type 304 stainless steel construction for corrosion resistance in wet and outdoor environments
• 1000-pound load rating for medium-duty pipe and conduit support
• Fits 3.5-inch rigid conduit with a 4-inch OD pipe or conduit
• Includes combination recess hex head machine screw for direct strut mounting
• Low-profile design at 0.104 inches height for tight clearance installations
• Compatible with standard B-Line strut channel systems

Compatibility

Designed for use with standard strut channel support systems as an OEM-style pipe and conduit clamp for 3.5-inch rigid conduit and 4-inch OD pipe applications.

Installation Notes

Installation is typically performed by a licensed electrician or pipefitter in accordance with NEC requirements for conduit support spacing and fastening. De-energize all circuits in the work area before securing conduit to the strut system. Use the included machine screw with appropriate strut nuts rated for the load and environment. Do not exceed the 1000-pound rated load for this clamp.

Technical Specifications

• Material: Stainless Steel Type 304
• Load Rating: 1000 pounds
• Conduit Size: 3.5 inches rigid
• Pipe OD: 4 inches
• Height: 0.104 inches
• Length: 6.141 inches
• Width: 1.25 inches
• Includes: Combination recess hex head machine screw
• UPC: 781011601799

Standard Information

• Brand: EATON
• Manufacturer Part Number: B2016
