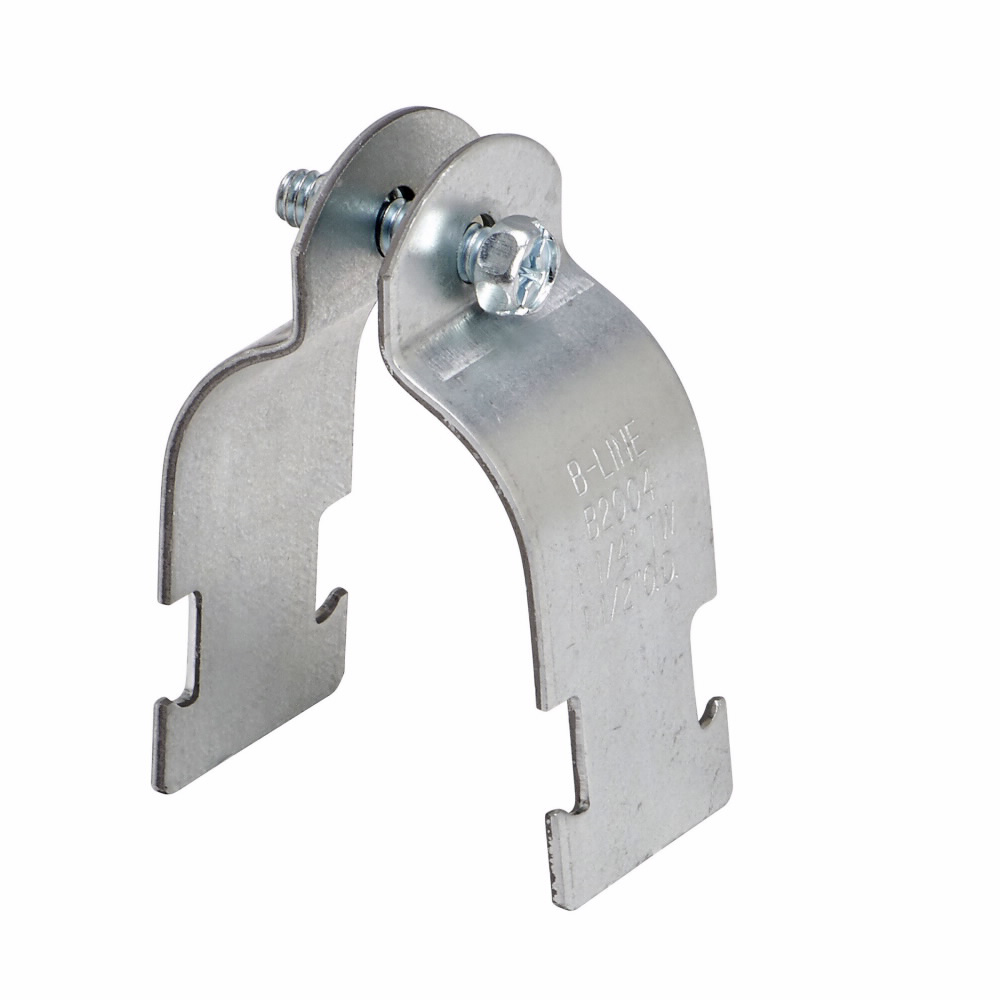

Eaton B2012PAAL Aluminum Strut Pipe Clamp 1-1/2 Rigid

Product Description

The EATON B2012PAAL is an aluminum strut pipe clamp from the B-Line series, designed to secure 1-1/2 inch rigid conduit or pipe with a 1-7/8 inch outer diameter to strut channel framing systems. This clamp includes a combination recess hex head machine screw for straightforward attachment to standard strut. At 3.78 inches in length and 1.25 inches in width, it provides a low-profile, secure hold suited to electrical conduit runs, mechanical piping, and general trade installations. Licensed electricians and pipefitters typically install this fitting in commercial and industrial panel, conduit, or pipe-support applications.

The B2012PAAL fits into typical strut-based support systems found in commercial electrical, mechanical, and plumbing installations. It is well-suited for securing rigid metallic conduit runs to overhead or wall-mounted strut channel. Its aluminum construction makes it a practical choice where weight reduction or mild corrosion resistance is needed compared to steel alternatives. This clamp is appropriate for use in both indoor and light-duty exposed environments.

Key Features

• Aluminum construction for lightweight, corrosion-resistant performance
• Fits 1-1/2 inch rigid conduit or pipe with 1-7/8 inch outer diameter
• Includes combination recess hex head machine screw for strut attachment
• Low-profile design at 3.78 inches length and 1.25 inches width
• Compatible with standard strut channel framing systems

Compatibility

Designed as an OEM-style replacement and standard fitment clamp for 1-1/2 inch rigid conduit or pipe with a 1-7/8 inch outer diameter used in B-Line series strut support systems.

Installation Notes

Installation is typically performed by a licensed electrician or pipefitter in accordance with applicable NEC or IPC guidelines. De-energize all circuits and relieve any system pressure before beginning work on conduit or pipe runs. A standard hex key or combination wrench is used to tighten the included machine screw to the strut channel. Do not overtighten the clamp hardware, as this may deform the aluminum body or damage the conduit surface.

Technical Specifications

• Material: Aluminum
• Pipe or Conduit Size: 1-1/2 inches rigid
• Outer Diameter (OD): 1-7/8 inches
• Length: 3.78 inches
• Width: 1.25 inches
• Height: 0.1015 inches
• Includes: Combination recess hex head machine screw
• UPC: 781011610593

Standard Information

• Brand: EATON
• Manufacturer Part Number: B2012PAAL
