Eaton B2004 Strut Pipe Clamp Emt Conduit Support

Product Description

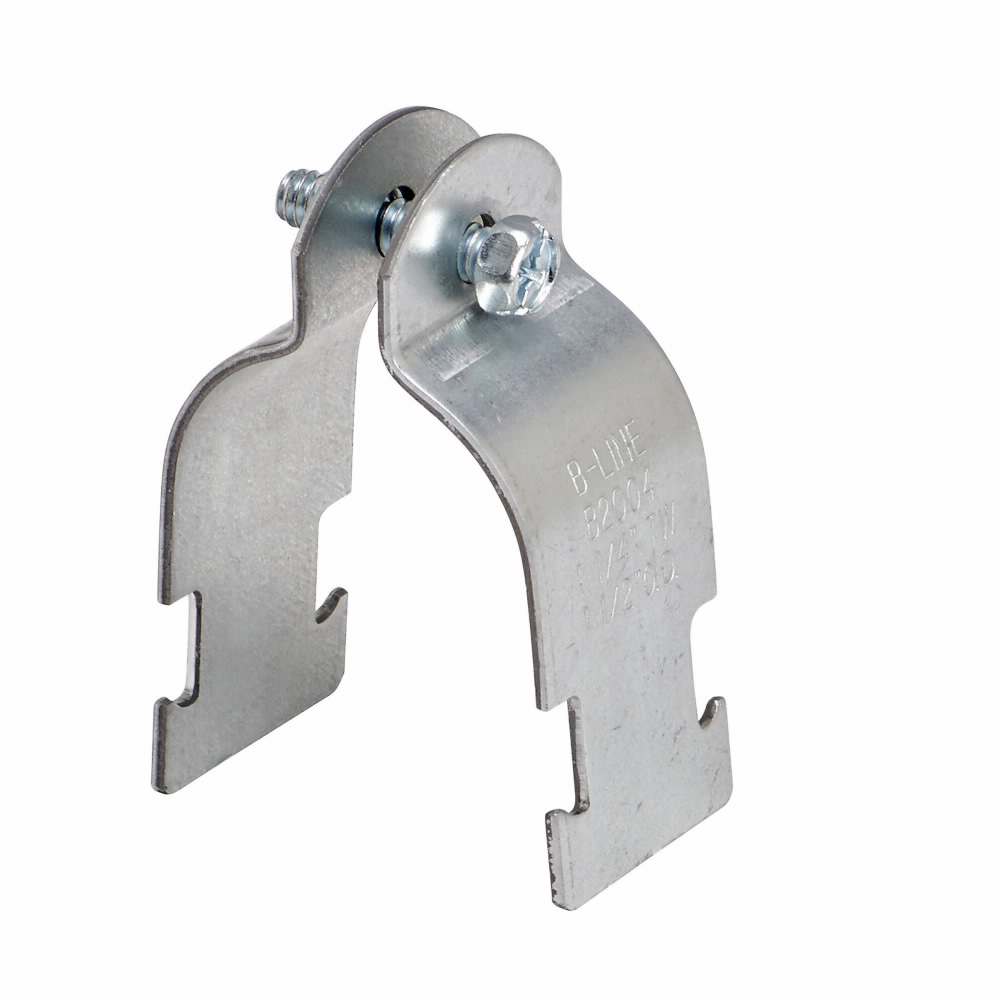

The EATON B2004 is a strut pipe clamp from the B-Line series, designed to secure 1-1/4 inch EMT conduit or 1-1/2 inch OD pipe to standard strut channel. Fabricated from stainless steel type 304, this clamp provides corrosion-resistant support in mechanical, electrical, and plumbing rough-in applications. It ships with a combination recess hex head machine screw, threaded 1/4-20, ready for direct installation onto strut. Electricians and pipefitters rely on this hardware to maintain consistent pipe and conduit alignment in both exposed and concealed installations.

The B2004 is suited for commercial and industrial applications where strut-mounted conduit runs require a secure, low-profile clamp. Typical install scenarios include panel feeders, branch circuit conduit runs, and mechanical room pipe headers routed along unistrut or comparable slotted channel. The 3.189 inch length and 1.25 inch width keep the clamp compact enough for tight strut layouts without sacrificing grip on the conduit or pipe.

Key Features

• Stainless steel type 304 construction for corrosion resistance in wet or exposed locations
• Accepts 1-1/4 inch EMT conduit and 1-1/2 inch OD pipe
• Includes combination recess hex head machine screw, 1/4-20 thread
• Low-profile design at 0.074 inches height over the strut flange
• Compatible with standard slotted strut channel systems

Compatibility

Designed for use with 1-1/4 inch EMT conduit and 1-1/2 inch OD pipe mounted to standard strut channel as part of the EATON B-Line series strut pipe clamp and accessories line.

Installation Notes

Installation is typically performed by a licensed electrician or pipefitter following NEC or IPC guidelines as applicable to the system being supported. De-energize any circuits in the work area before securing conduit to the strut. Use a hex key or socket driver sized for the 1/4-20 combination recess head screw. Do not overtighten the clamp fastener, as excessive torque can deform the conduit wall or strip the strut threads.

Technical Specifications

• Material: Stainless Steel Type 304
• Height: 0.074 inches
• Length: 3.189 inches
• Width: 1.25 inches
• Fastener Thread: 1/4-20
• Conduit Size: 1-1/4 inch EMT
• Pipe OD: 1-1/2 inches
• Included Hardware: Combination recess hex head machine screw
• UPC: 781011608415

Standard Information

• Brand: EATON
• Manufacturer Part Number: B2004
