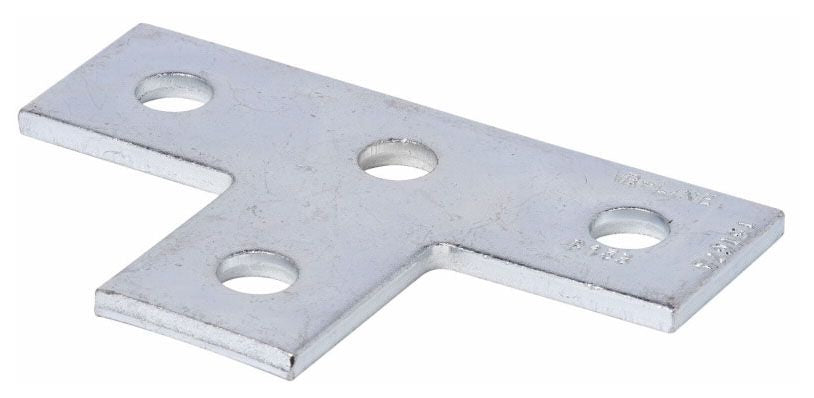

Eaton B133GRN 4-hour T Connection Plate Green

Product Description

The EATON B133GRN is a 4-hour rated T connection plate designed for use in B-Line series strut and channel framing systems. This connection plate forms a T-junction between structural channel members, providing a rigid mechanical connection point in pipe, conduit, and equipment support assemblies. It is finished in green, consistent with corrosion-resistant coating conventions used in light industrial and commercial applications. Licensed electricians, pipefitters, and mechanical contractors install this hardware as part of overhead or wall-mounted support structures.

This T connection plate is suited for commercial and industrial installations where channel framing systems are used to support conduit runs, piping, mechanical equipment, and cable tray. It fits into B-Line series strut configurations and is appropriate for both new construction and retrofit support work in facilities that require rated connection hardware.

Key Features

• 4-hour fire rating suitable for rated support assemblies
• T-configuration allows perpendicular channel connections within strut framing systems
• Green finish provides corrosion resistance for light industrial environments
• Designed for use within B-Line series channel and strut framing systems
• Rigid connection plate construction supports structural load transfer at junction points

Compatibility

Designed as an OEM-style replacement and standard component for B-Line series strut and channel framing support assemblies requiring T-junction connections.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors working with channel framing support systems. De-energize any nearby electrical equipment and follow applicable NEC and facility safety protocols before beginning overhead support work. Use appropriate fasteners rated for the channel system and verify that the completed assembly meets the load and fire-rating requirements of the project specifications. Do not substitute non-rated hardware in assemblies that require a 4-hour rating.

Technical Specifications

• Weight: 1.17 pounds
• Finish: Green
• Fire Rating: 4-Hour
• Connection Type: T Connection Plate
• UPC: 78101150352

Standard Information

• Brand: EATON
• Manufacturer Part Number: B133GRN
