EATON B-LINE U224MTBP Meter Main 1-Phase 3-Wire 200A

Product Description

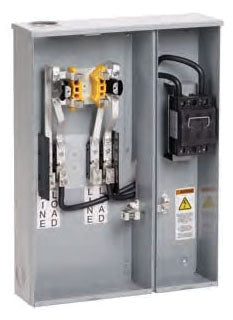

The EATON B-LINE U224MTBP is a ring-type meter main that features a safety socket bypass. This meter main operates on a one-phase, three-wire system and is rated for both 120 and 240 volts with a current capacity of 200 amps. The unit is made of steel with ANSI 61 gray finish and is designed for surface installation.

• 200A amperage rating
• NEMA 3R enclosure
• Supports overhead and underground service types

Product Highlights

This meter main includes a fusible pullout for added safety and is suitable for a variety of applications in residential and commercial settings. The robust NEMA 3R enclosure ensures reliability in different environmental conditions.

Product Information

Standard Information

• Brand Name: B-Line
• Manufacturer: Eaton

Technical Specifications

• Manufacturer Part Number: U224MTBP
• UPC: 78205162000
• Item Name: Ring Type Meter Main With Safety Socket Bypass
• Amperage Rating: 200 Amp
• Voltage Rating: 120/240 V
• Phase: 1
• Number of Wires: 3
• Interrupt Rating: 200 kAIC
• Enclosure: NEMA 3R
• Mounting: Surface
• Material: Steel
• Finish: ANSI 61 Gray Acrylic Electrocoated
• Dimensions: 22 inches Width x 6 inches Depth x 30 inches Height
• Conductor Size: 6 AWG-250 KCMIL Line/Neutral
• Number of Poles: 2
• Number of Jaws: 4
• Type: Fusible Pullout
• Service Type: Overhead/Underground
• Standards: UL 67, ANSI C12.7, EUSERC 305A
• Knockouts: (2) 1/2 Inch, (4) Concentric Knockouts (1-1/4 Inch-2-1/2 Inch), (3) Concentric Knockouts (2-1/2 Inch-3 Inch)
• Disconnect Type: (1) 2 Pole Pullout 200 Kiloampere Interrupting Rating 200 Ampere Circuit Breaker Main
• Certifications: UL
• Compliances: EUSERC Approved
