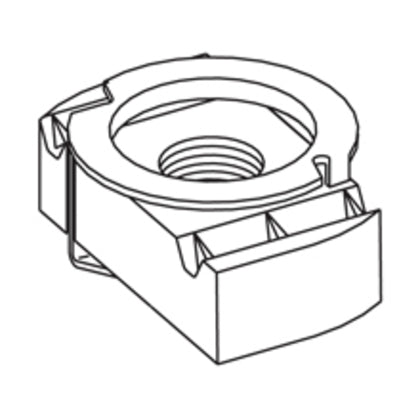

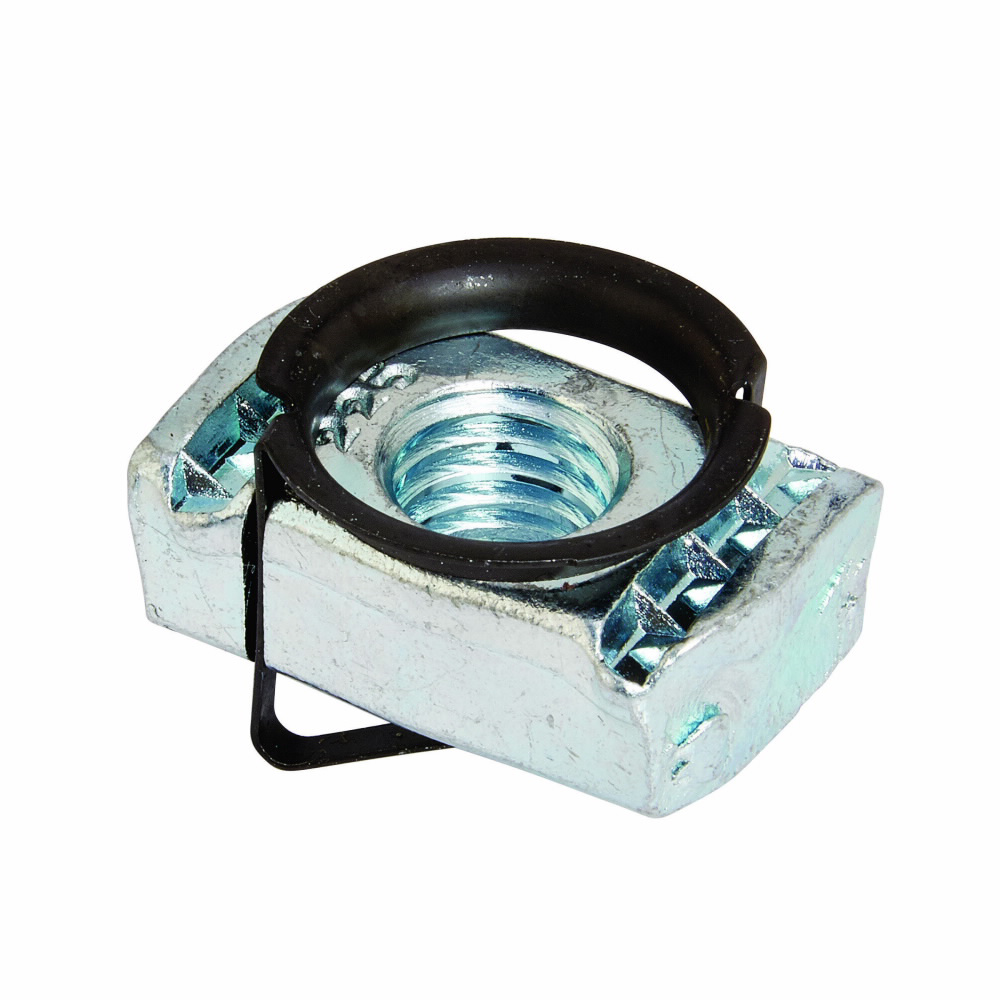

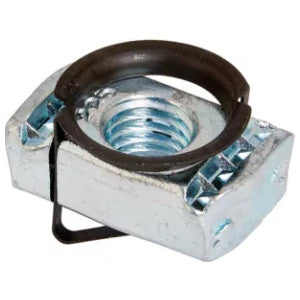

Eaton B-Line TN228ZN Twirl Nut With Spring 3/8 Inch Thick, 3/8-16 Thread

Product Description

The EATON B-LINE TN228ZN twirl nut with spring is designed for use with B22, B24, B26 and B32 series medium channels. It features steel construction with electro-plated zinc for corrosion resistance and longer endurance. The twirl nut offers essential gripping power and ease during installation in metal framing systems.

• For Use With B22, B24, B26 and B32 Series Medium Channel
• Steel construction
• Corrosion resistant

Product Highlights

The EATON B-LINE TN228ZN twirl nut is made of steel with zinc plating and is suitable for use on B11, B12, B22, B24, B26, B32, B42, B52, B54 and B56 channels.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: TN228ZN
• Country of Origin: Taiwan

Technical Specifications

• Thread Size: 3/8-16
• Thickness: 3/8 in
• Material: Steel
• Finish: Zinc Plated
• Bolt Size: 3/8IN-16
• Load: 800 lbs
• Suitable For Use With: B22, B24, B26 and B32 Series Medium Channel
• Series: 200
• Product Length/Depth: 1.375 in
• Product Height: 0.375 in
• Product Width: 0.85 in
• Product Weight: 0.08 lb
• Product Type: Nut
• Product Category: Channel nuts
• Type: Twirl-nut
• Load rating (pull out strength): 800 lbs
• Load rating (slip strength): 800 lbs
• Bolt/thread/rod size: 3/8"-16
• Size: 3/8 In-16 TPI
• Brand: Eaton
• Sub Brand: B-Line series
• Use With: 1-5/8 in. Channel
• Fitting Type: Channel Nut
• Hole Diameter: 3/8 in.
• No. of Holes: 1
• Diameter: 3/8 in
