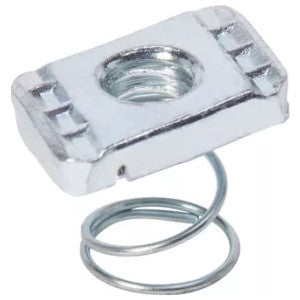

EATON B-LINE N7221ZN Spring Nut 8 inches-32

Product Description

The EATON B-LINE N7221ZN spring nut is a standard component designed for use with an eight inches-thirty-two bolt size. Made from steel, this nut features an electro-plated finish for added durability. It fits well in B72 eighteen gauge channel applications. Dimensions of the product are zero point four two five inches in height, zero point seven two one inches in length, and zero point six seven inches in width.

• Bolt size compatibility: 8 inches-32
• Material: Steel with electro-plated finish
• Used in B72 channel applications

Product Highlights

This product is ideal for securing channel systems where a tall channel nut is necessary.

Product Information

Standard Information

• Product Name: Eaton B-Line series spring nut
• Catalog Number: N7221ZN

Technical Specifications

• Dimensions: 0.425 inches H x 0.721 inches L x 0.67 inches W
• Weight: 0.01 pounds
• Threads per Inch: 32
• Channel Depth: 13/32 inches
• Finish: Electro-plated
• Material: Steel
• Country of Origin: Multiple - Subject to change
• Product Category: Tall channel nuts
