Eaton B-Line N228ZN Channel Nut With Spring 3/8-16 Thread

Product Description

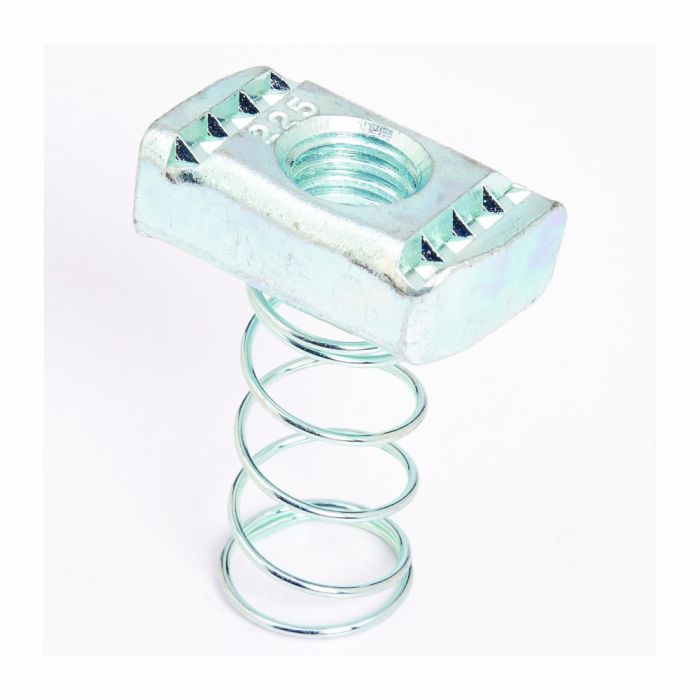

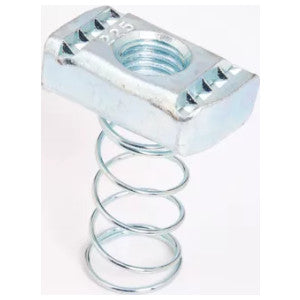

The EATON B-LINE N228ZN is a channel nut with spring, designed for use with B22, B24, B26 and B32 series medium channels. It features steel construction with an electro-plated zinc finish for corrosion resistance. This channel nut provides essential gripping power and ease during installation in metal framing systems.

• Channel nut with spring
• 3/8-16 thread
• Steel construction with electro-plated finish

Product Highlights

The EATON B-LINE N228ZN channel nut is ideal for providing secure connections in metal framing applications.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: N228ZN
• Country of Origin: CN - China

Technical Specifications

• For Use With: B22, B24, B26 and B32 Series Medium Channel
• Thread Size: 3/8-16
• Thickness: 3/8 in
• Bolt Size: 3/8IN-16
• Load: 1100 lbs
• Load 2: 800 lbs
• Construction: Steel/ASTM A108
• Finish: Electro-plated zinc/ASTM B633 SC1 Type III
• Series: 200
• Fits: B22, B24, B26 and B32 aluminum channel
• Product Length/Depth: 1.875 in
• Product Height: 0.85 in
• Product Width: 1.375 in
• Certifications: Not Applicable
• Product Type: Spring nut
• Product Category: Channel nuts
• Material: Steel
• Brand: Eaton
• Sub Brand: B-Line series
• Used With: B22, B24, B32 Type Channels
• Suitable For Use With: B22, B24, B26 and B32 Series Medium Channel
• Fitting Type: Spring Nut
• Hole Diameter: 3/8 in.
• No. of Holes: 1
• Load rating (pull out strength): 1100 lbs
• Load rating (slip strength): 800 lbs
