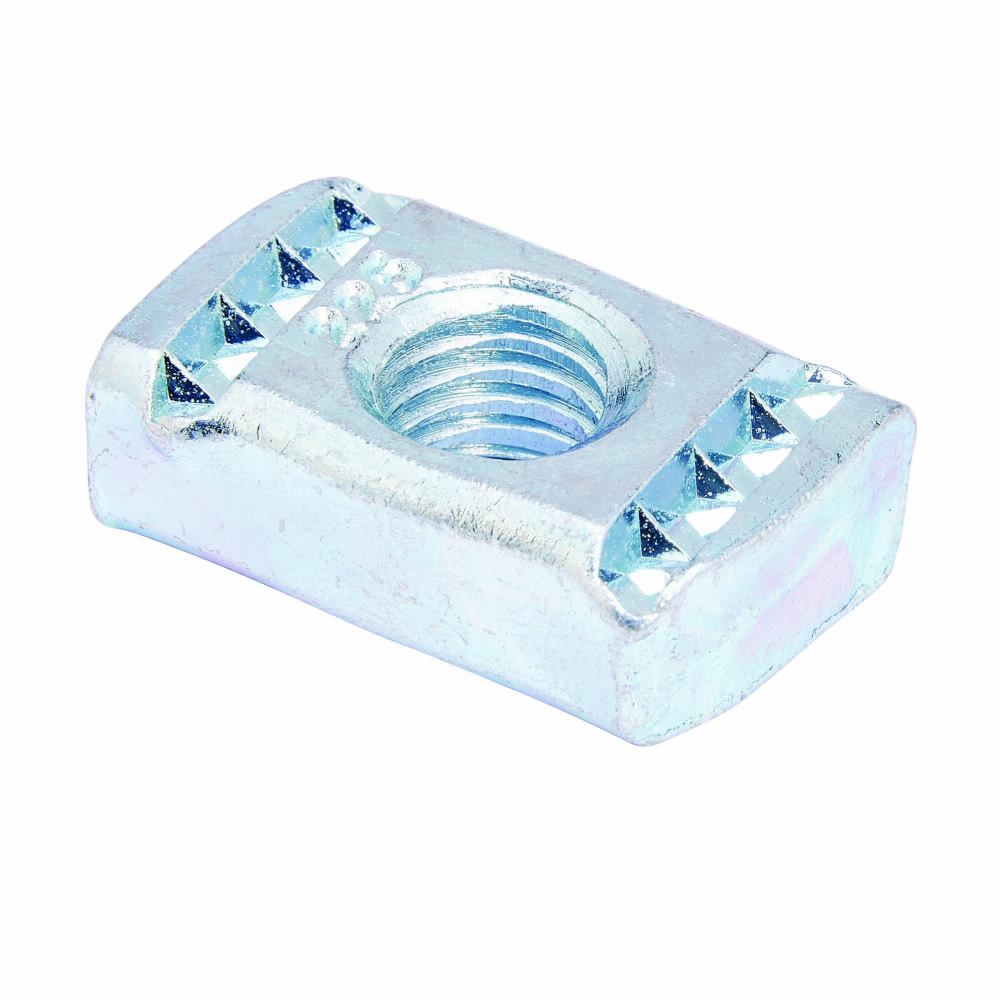

EATON B-LINE N228-WO-3/8 PLTD CHNL NUT

Product Description

The EATON B-LINE N228-WO-3/8 is a channel nut suitable for strut systems and bolted framing. This nut is constructed from steel and features a thread size of three-eighths inch by sixteen threads per inch. The design does not include a spring, and it has an electro-plated zinc finish which helps prevent corrosion. It delivers significant gripping power while making installation straightforward.

• Compatible with B22, B24, B26, and B32 channels
• Offers 1100 lbs pull-out strength
• Provides 800 lbs slip strength

Product Highlights

Designed for use in various construction applications, the EATON B-LINE N228-WO-3/8 channel nut is engineered for durability and performance.

Product Information

Standard Information

• Material: Steel
• Finish: Zinc

Technical Specifications

• Size: 3/8 In-16 TPI
• Thread Size: 3/8-16 UNC
• Type: Nut Without Spring
• Applications: Strut Systems and Bolted Framing
• Applicable Standard: ISO 9001
• Thread Series: UNC
• Thickness: 3/8 Inch
• Material Specification: ASTM A108/A36/B633
• Process: Press Formed, Machined, Hardened
