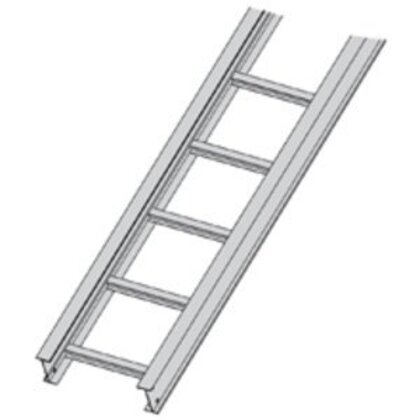

EATON B-LINE H46A-09-18-240 Cable Tray

Product Description

The EATON B-LINE H46A-09-18-240 is a cable tray designed for effective cable management in various installations. Made from aluminum, this product features a ladder bottom type with nine-inch rung spacing, ensuring a reliable support system for cables. The open design allows for airflow, making it suitable for environments where heat dissipation is crucial.

• Aluminum construction ensures durability and lightweight handling.
• Ladder bottom type with nine-inch rung spacing for optimal cable support.
• Suitable for diverse installations to meet your cable management needs.

Product Highlights

Reliable and robust design supports efficient cable management.

Product Information

Standard Information

• Type: Cable Tray
• Material: Aluminum

Technical Specifications

• Bottom Type: Ladder
• Siderail Height: Six inches
• Width: Eighteen inches
• Length: Twenty feet
• Rung Spacing: Nine inches
• Loading Depth: Five inches
• Siderail Style: H-Beam
• Load Capacity: Two hundred sixty-one pounds per foot over a sixteen-foot span
• Product Name: Eaton B-Line Series Imperial Cable Tray and Ladder
• Catalog Number: 46A09-24-240
• UPC: 781011245122
• Product Length/Depth: Two hundred forty inches
• Product Height: Six point nineteen inches
• Product Width: Twenty-four inches
• Product Weight: Fifty-seven point one ninety-four pounds
• Certifications: CE, CSA, UL Classified
