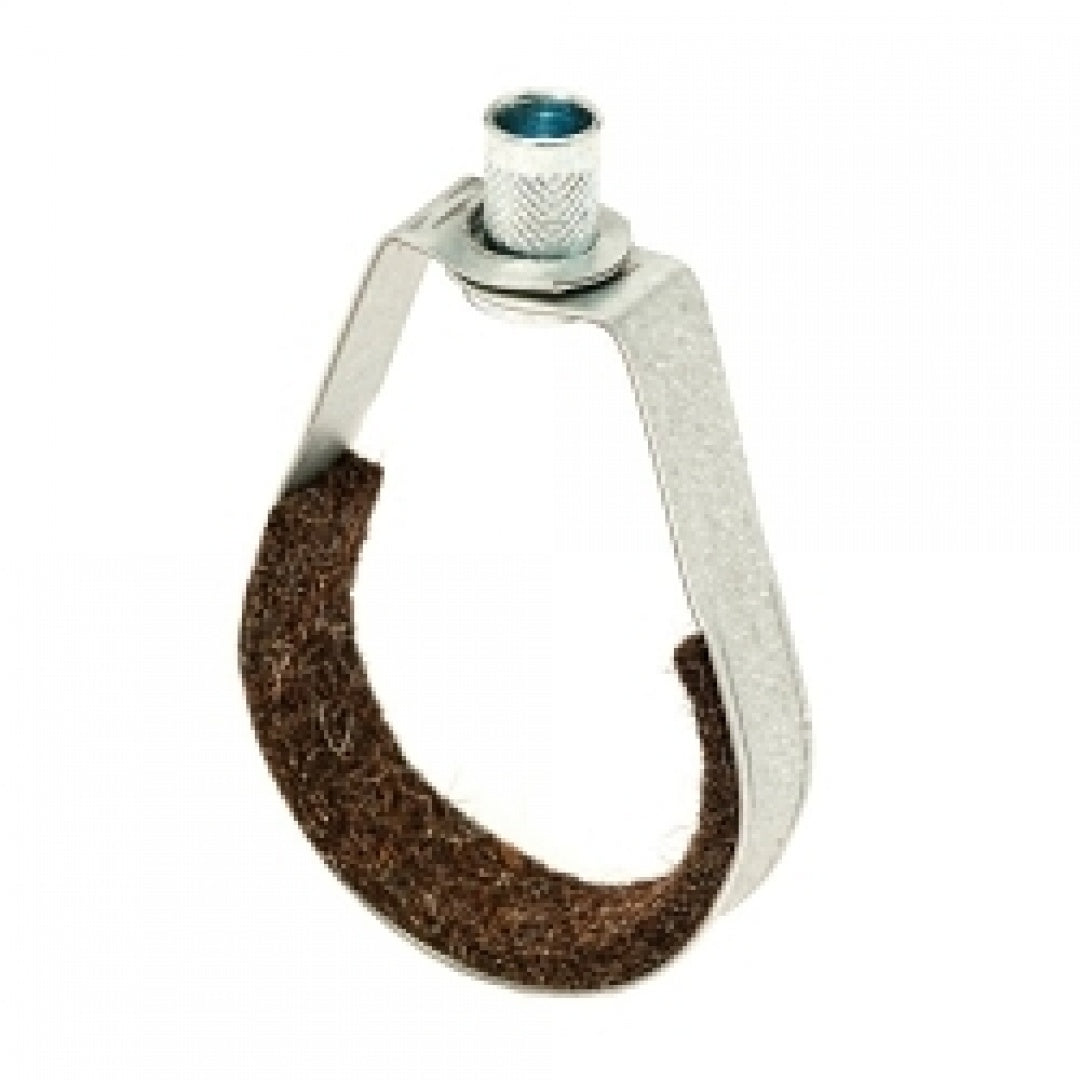

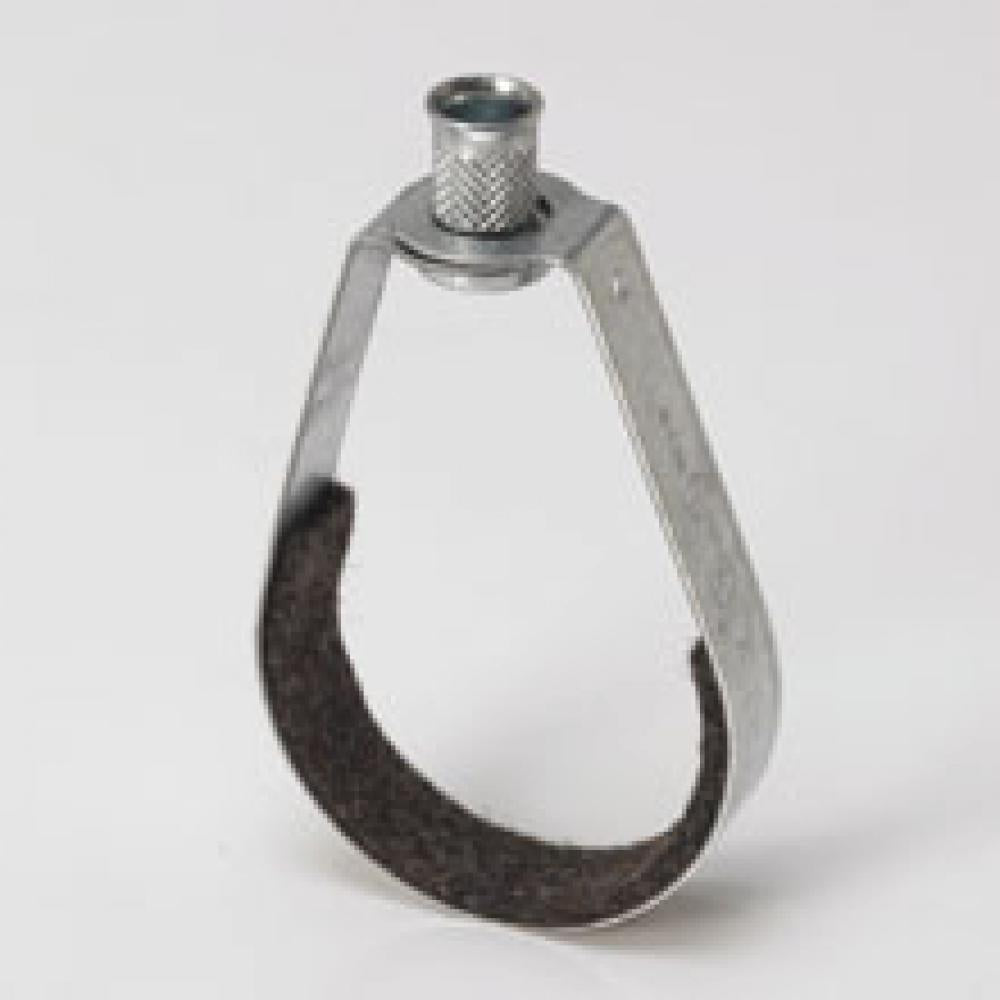

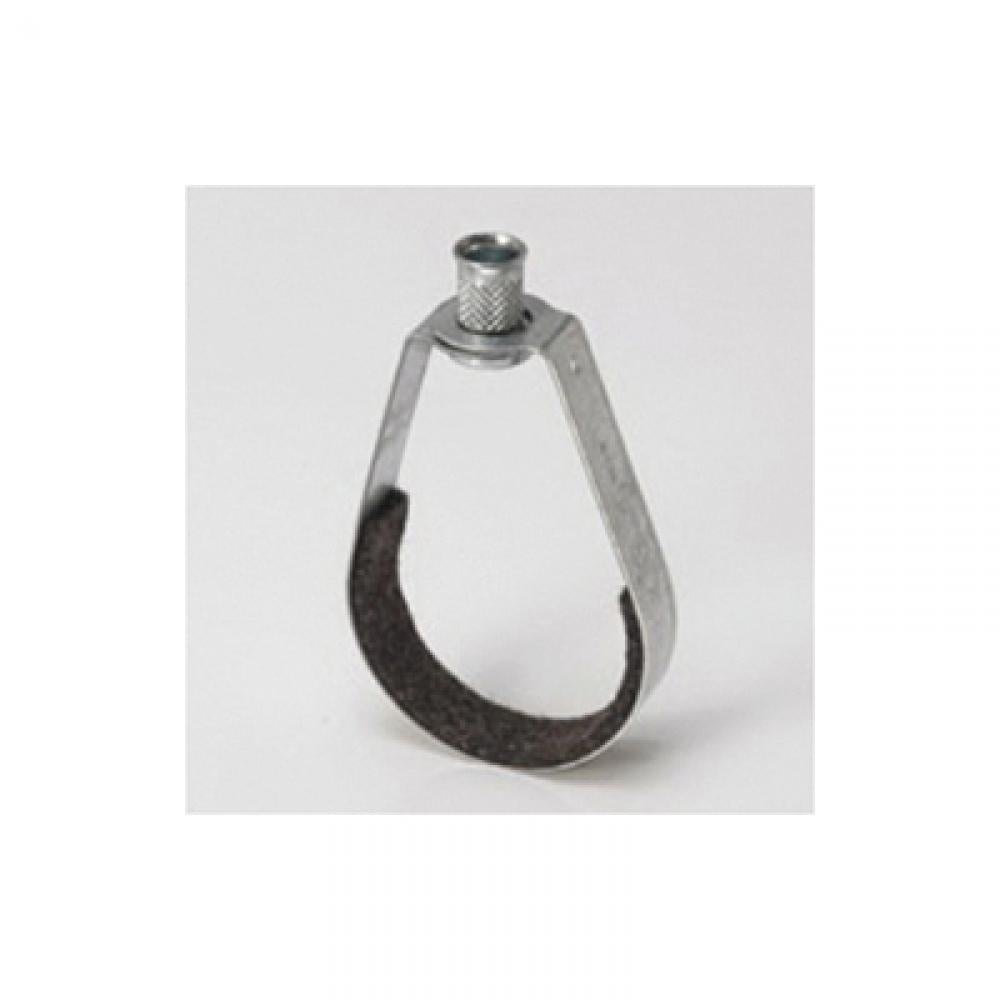

Eaton B-Line FIG 200F-3/4-PGL Adjustable Swivel Ring, 3/4 inches, Rod 3/8-16, Felt-lined, Pre-galvanized

Product Description

The EATON B-LINE FIG 200F-3/4-PGL is an adjustable swivel ring with a 3/4" pipe size and a 3/8-16 rod. This pre-galvanized steel hanger features a felt lining to protect CPVC plastic pipe from abrasion and a design that permits hanger adjustment after installation. Suitable for fire sprinkler and other general piping purposes.

• Protects CPVC plastic pipe from abrasion
• Design permits hanger adjustment after installation
• Felt Lining

Product Highlights

The FIG 200F-3/4-PGL adjustable swivel ring is pre-galvanized and features a felt lining. It is suitable for use with mechanical ring and strap.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: FIG 200F-3/4-PGL
• Country of Origin: US - United States

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Name: Eaton B-Line series TOLCO Trimline felt lined adjustable band hanger
• Catalog Number: FIG 200F-3/4-PGL
• UPC: 799038434412
• Product Length/Depth: 3.102 in
• Product Height: 0.869 in
• Product Width: 1.346 in
• Certifications: cUL Listed
• Product Type: Trimline felt lined adjustable band hanger
• Application: For fire sprinkler and other general piping purposes
• Operating temperature - max: 650 °F
• Pipe size - max: 0.75 in
• Model: TOLCO “Trimline” adjustable band hanger with felt lining
• Style: TOLCO
• Type: Trimline Adjustable
• Finish: Pre-galvanized
• Material: Steel
• ECCN: EAR99
• UNSPSC: 30101804
• Country: USA
• Domestic/Import: Domestic
• Pipe Size: 3/4 in
• Rod Size: 3/8-16
• Series: FIG 200F
• Suitable For Use With: Mechanical Ring and Strap
• Temperature Rating: 650 deg F
• Unspsc: 30101804
