Eaton B-Line FIG 200F-2-1/2-PGL Adjustable Swivel Ring 2 1/2 inches

Product Description

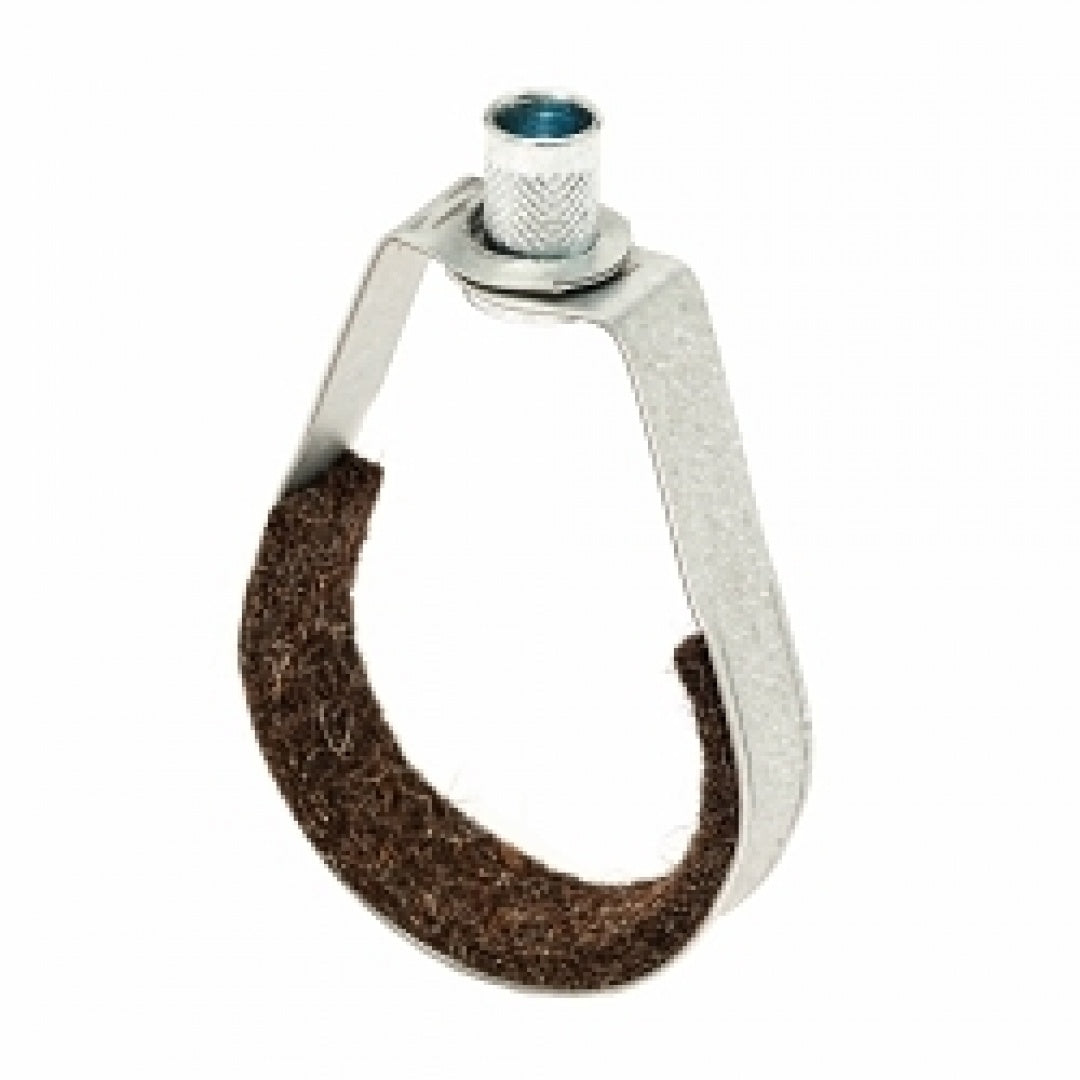

The EATON B-LINE FIG 200F-2-1/2-PGL is an adjustable swivel ring with a 2 1/2" pipe size. It features a felt lining and pre-galvanized finish. The knurled swivel nut design allows for hanger adjustment after installation. It is suitable for use with mechanical ring and strap applications and protects CPVC plastic pipe from abrasion.

• Adjustable swivel ring design
• Felt-lined for copper tubing
• Pre-galvanized finish

Product Highlights

This adjustable swivel ring is ideal for supporting pipes and tubes, offering flexibility and protection against abrasion.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: FIG 200F-2-1/2-PGL
• Country of Origin: US

Technical Specifications

• Manufacturer: EATON B-LINE
• Type: Swivel Ring
• Nominal Size: 2-1/2 in
• Material: Steel
• Finish: Galvanized
• Lining: Felt
• Pipe Size: 2-1/2 in
• Rod Size: 3/8 in
• Series: FIG 200F
• Suitable For Use With: Mechanical Ring and Strap
• Temperature Rating: 650 deg F
• Brand: B-Line
• UNSPSC: 30101804
• SKU: FIG 200F-2-1/2-PGL
• Catalog Number: FIG 200F-2-1/2-PGL
• UPC: 782051706369
• Certifications: cUL Listed
• Special features: Protects CPVC plastic pipe from abrasion
• Application: Design permit hanger adjustment after installation
• Style: TOLCO
• Model: TOLCO “Trimline” adjustable band hanger with felt lining
• Operating temperature - max: 650 °F
• Pipe size - max: 2.5 in
