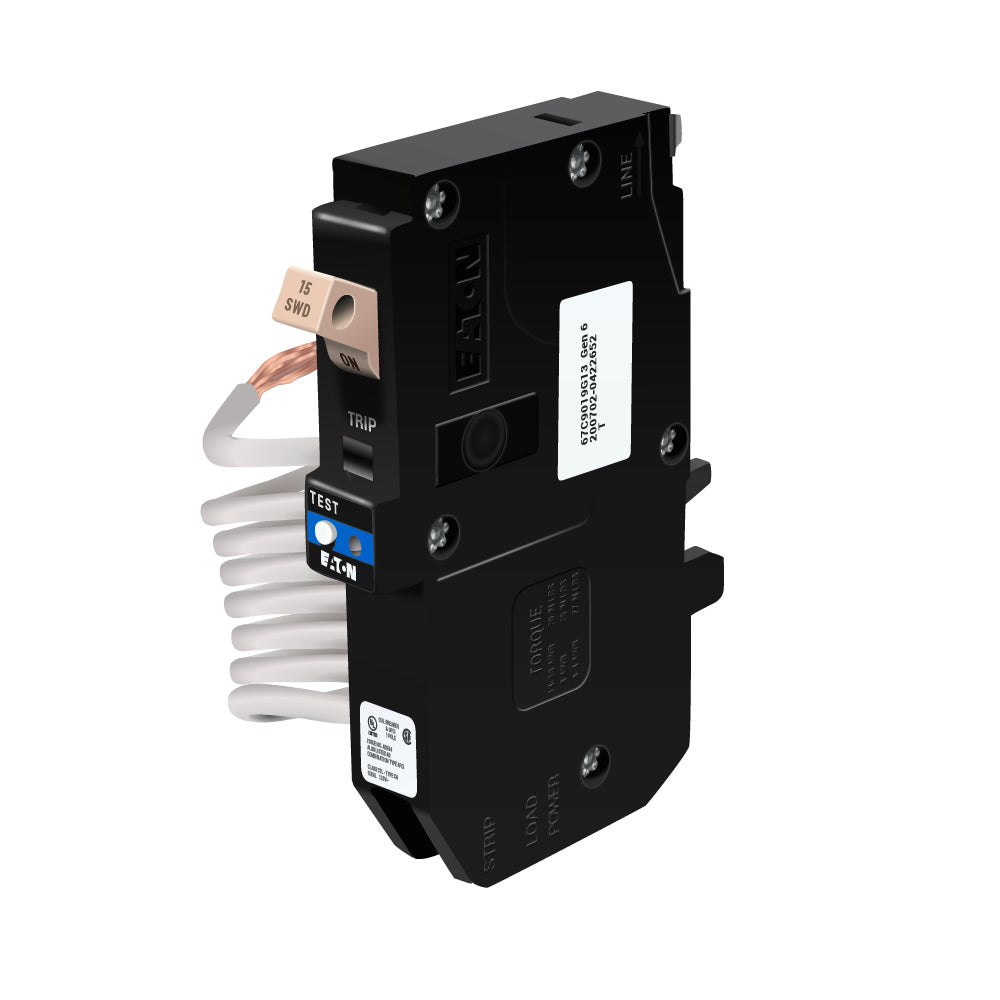

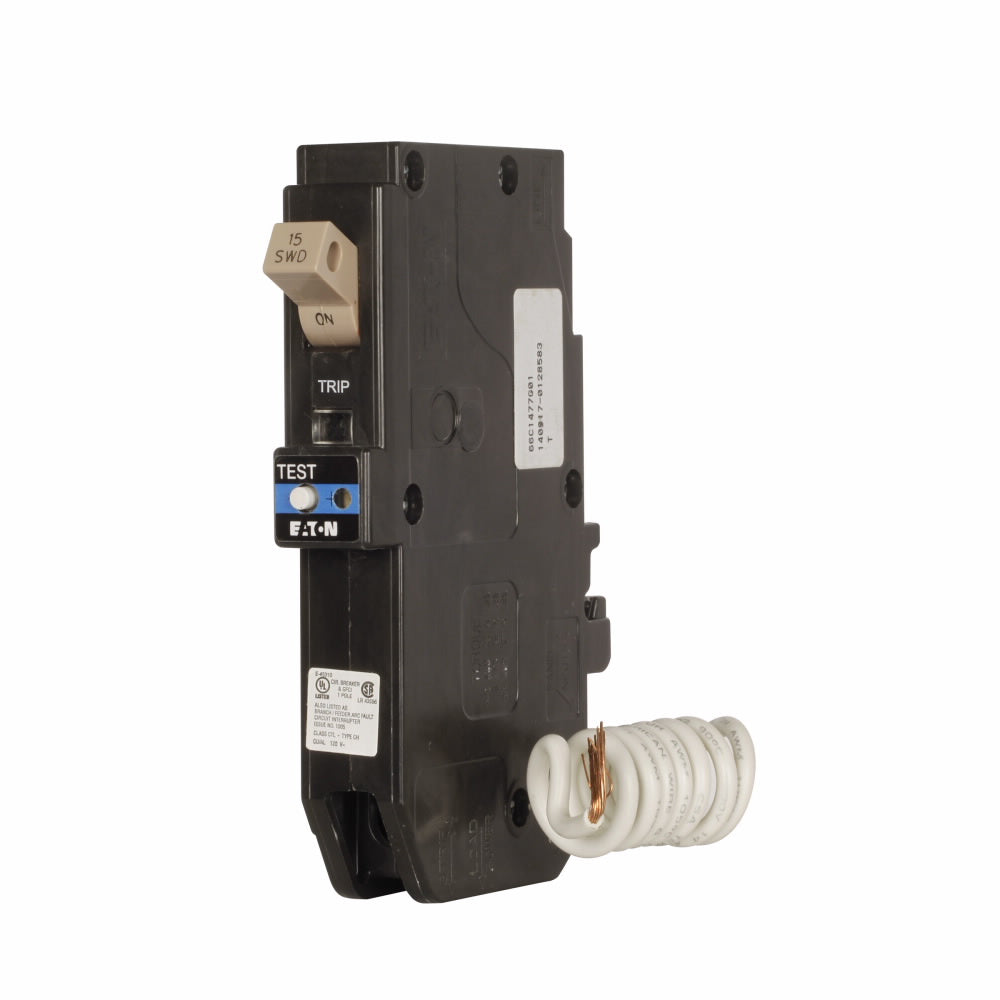

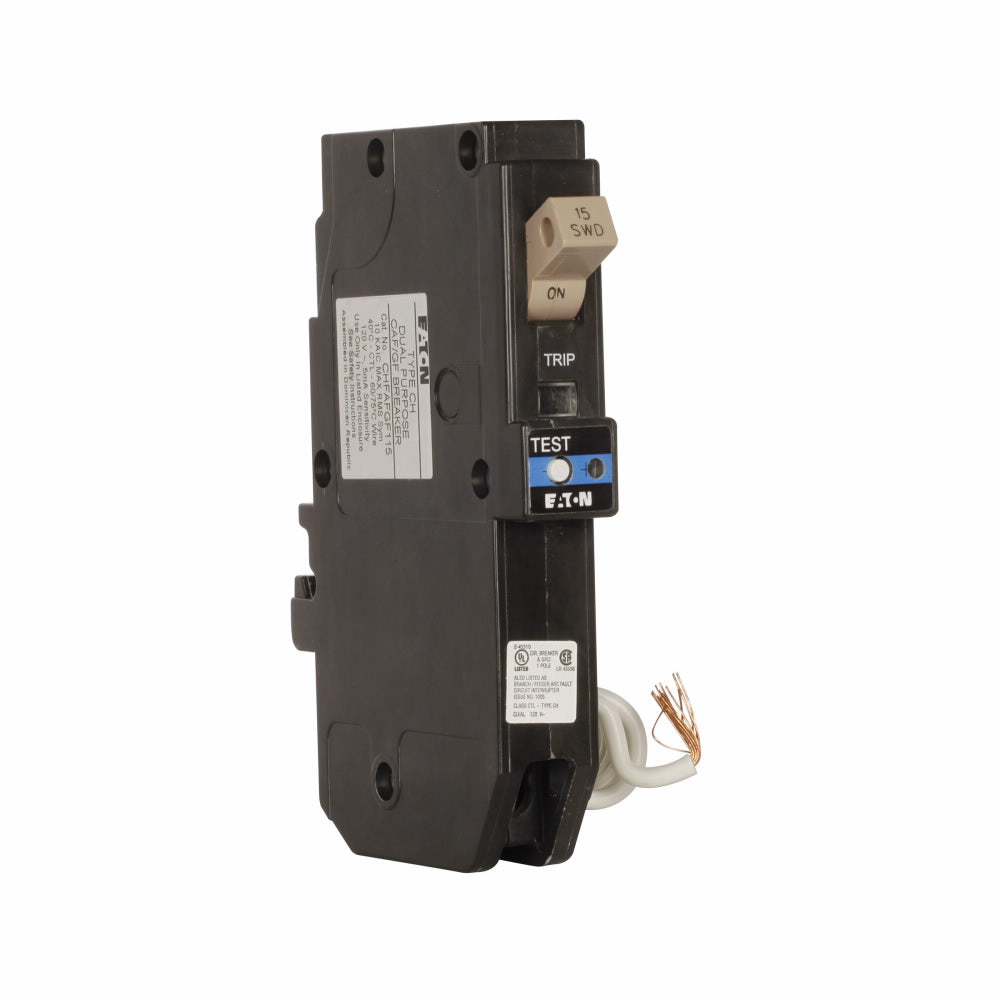

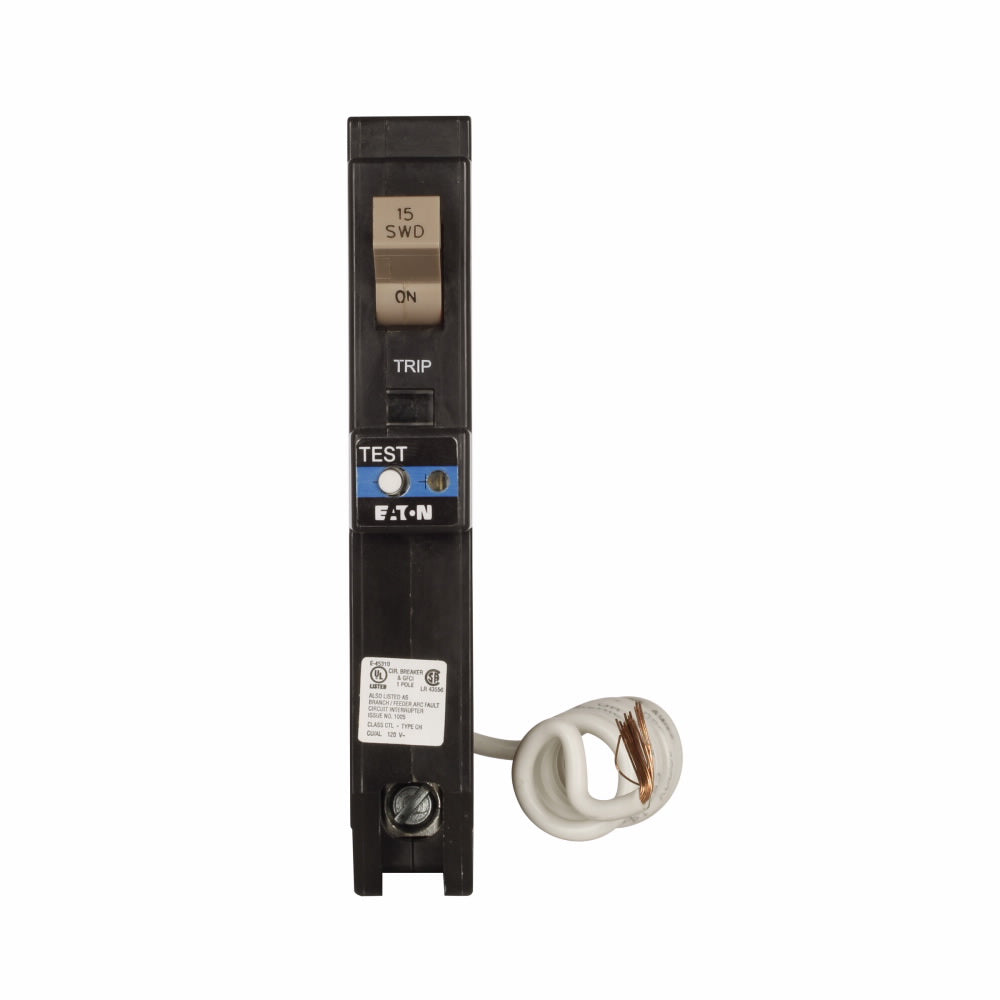

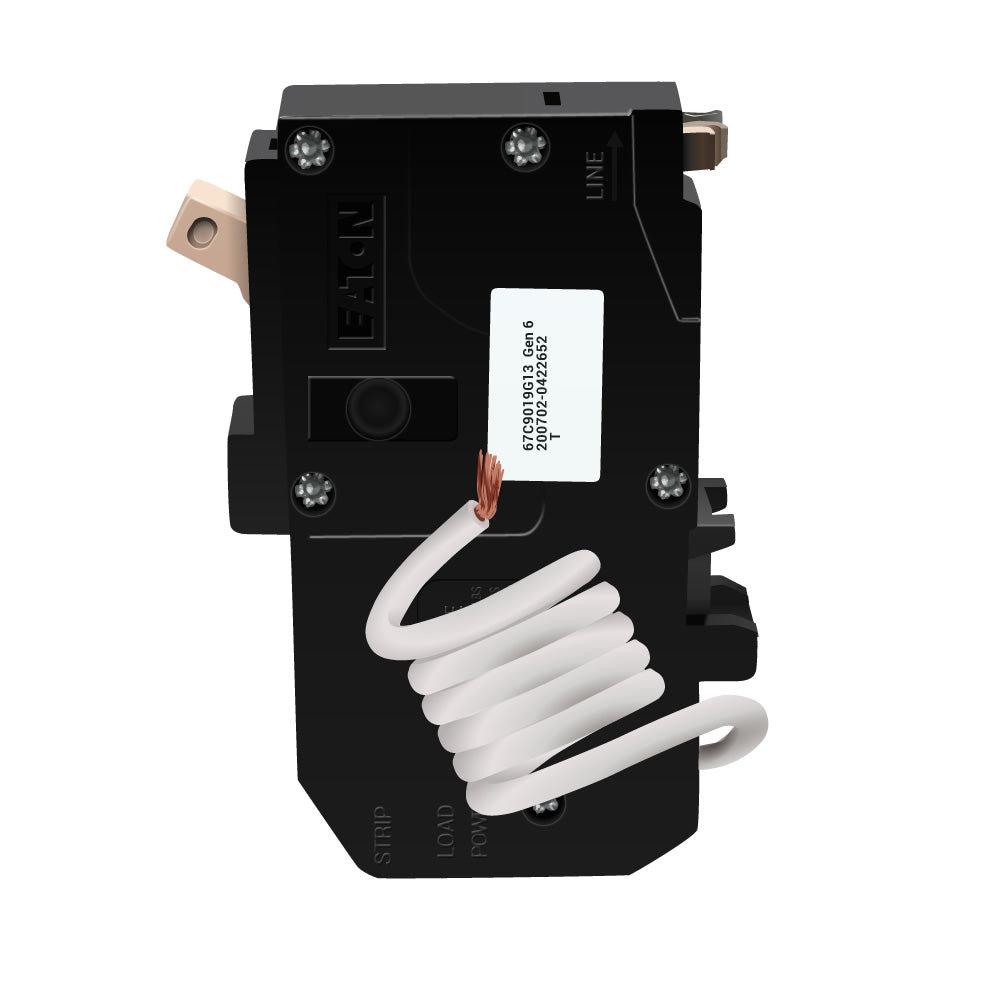

EATON B-LINE CHFN115DF Dual Function Circuit Breaker

Product Description

The EATON B-LINE CHFN115DF is a single-pole circuit breaker designed for dual-functionality. It integrates both Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) protection into one device. This plug-on type circuit breaker operates at a voltage rating of one hundred twenty to two hundred forty volts with a current rating of fifteen amperes.

• Dual Function (AFCI & GFCI) protection
• Plug-on mounting type
• HACR rated for reliable performance

Product Highlights

This product is ideal for enhancing safety in residential and commercial buildings. It meets various compliance standards and is designed for ease of installation.

Product Information

Standard Information

• Brand: EATON
• Approval: UL

Technical Specifications

• Type: CHB Dual Function Plug-On Branch Feeder Circuit Breaker
• Product Weight: 0.5 LB
• Compliances: HACR Rated
• Certifications: UL Listed
• Mounting Type: Plug On
• Interrupt Rating: 10 kAIC
• Connection Type: Pigtail
• Voltage Rating: 120/240V
• Amperage Rating: 15 A
• Number Of Poles: Single-pole
• Series: CHFN
• Phase: 1
• Circuit Breaker Type: CH
• UPC: 786689058807
