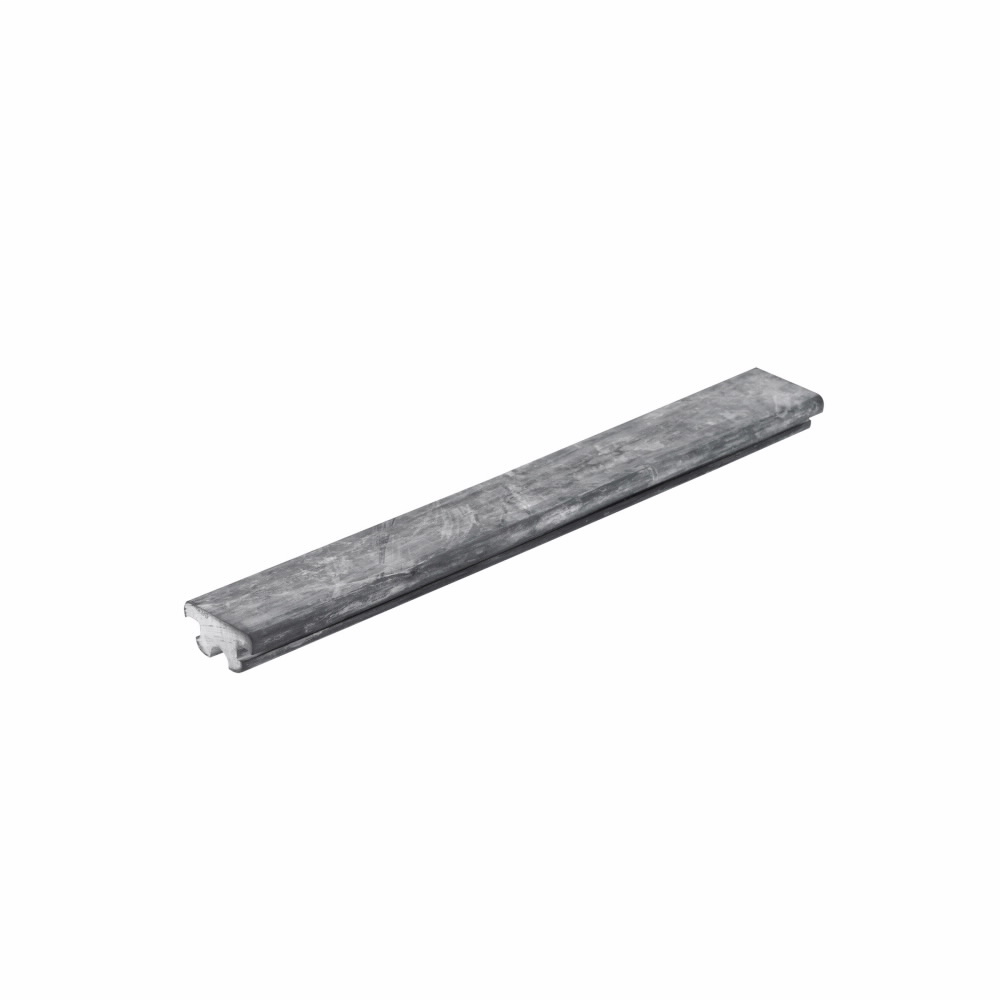

Eaton B-Line BVS-12 Vibra Strip 12 inches Neoprene Vibr Pad For 1-5/8 inches Channel

Product Description

The EATON B-LINE BVS-12 is a neoprene vibration pad designed for 1-5/8" channels. This vibra strip provides an isolation medium between equipment and the support channel. It can be cut to fit specific requirements. The BVS type vibra strip is 12" long and has a load capacity of 40 lbs per inch.

• For use with 1-5/8" wide Eaton B-Line channel
• 40 lbs per inch load cap
• Neoprene

Product Highlights

The BVS-12 vibra strip provides vibration isolation for equipment mounted on strut channels. Its neoprene construction ensures durability and effective noise dampening.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BVS-12
• Country of Origin: China

Technical Specifications

• Product Name: Eaton B-Line series vibration isolation pads
• Catalog Number: BVS-12
• UPC: 781011014735
• Product Height: 12 in
• Product Weight: 0.46 lb
• Certifications: Not Applicable
• Product Type: Vibration isolation pads
• Size: 12 inch long
• Application: For use with 1-5/8 inch wide Eaton B-Line channel
• Type: BVS type - Vibra Strip
• Load capacity: 40 lbs per inch
• Special features: Neoprene
• ECCN: EAR99
• UNSPSC: 39121311
• Brand: Vibra Strip
• Series: BVS Series
• Material: Neoprene
• Use With: Dampen Noise and Vibration of Equipment When Mounted on Strut
• Fitting Type: Pad
• Applications: PIPE HANGERS,VIBRATION INSULATION PRODUCTS
• Temperature Rating: -20 To 212 degrees F
• Finish: Plain
• Height: 12 Inch
