Eaton B-Line BVP200YZN Vibra-Clamp vibration and cushion clamp 800 lbs

Product Description

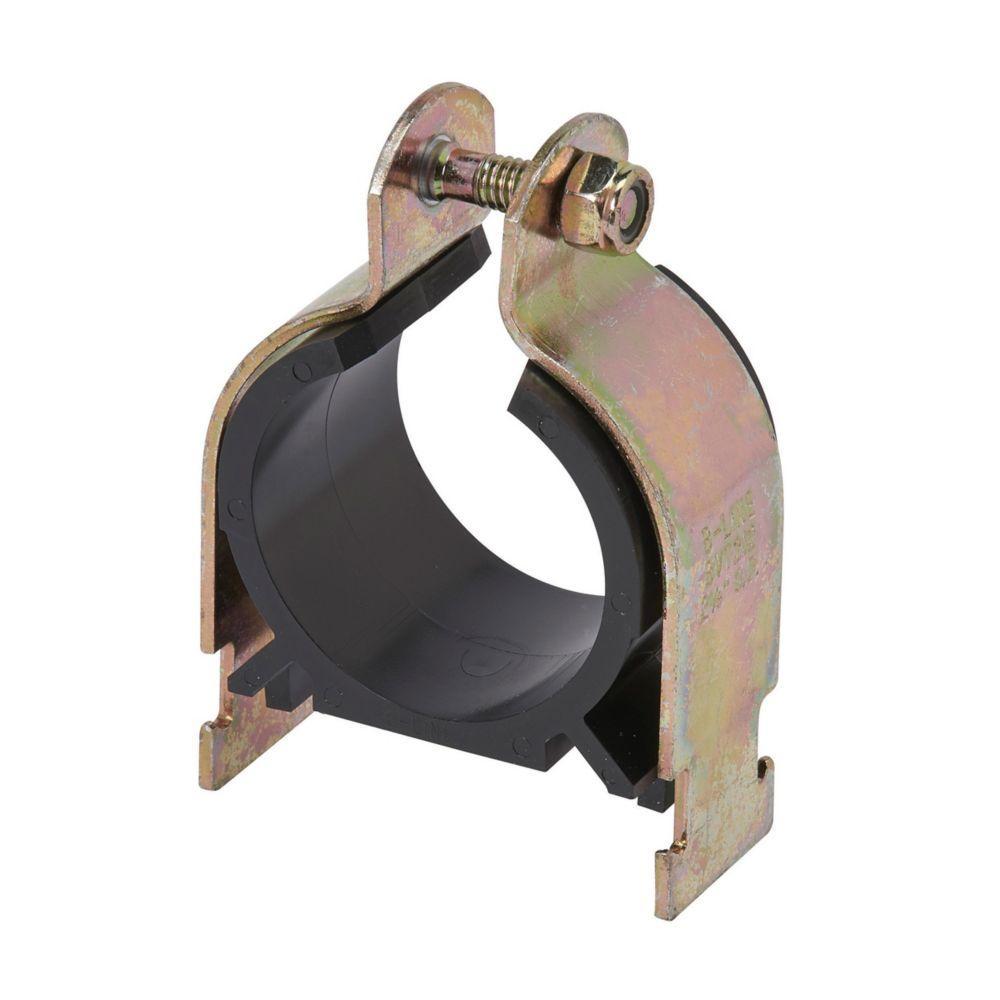

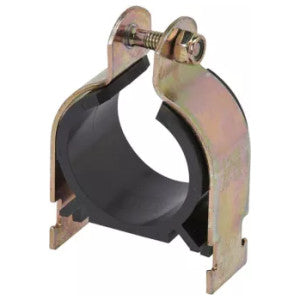

The Eaton B-Line series BVP200YZN Vibra-Clamp is a vibration and cushion clamp with a load capacity of 800 lbs. It dampens vibration and noise. Designed for use with 4Dimension strut systems/bolted framing, it helps secure pipe firmly to channel (strut).

• Dampens vibration and noise
• Safety factor of 3
• Allows easy one tool installations

Product Highlights

The B-Line Vibra-Clamp ensures secure pipe attachment, reduces vibration, and simplifies installation with its user-friendly design.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BVP200YZN
• Country of Origin: US - United States

Technical Specifications

• Product Name: Eaton B-Line series Vibra-Clamp vibration and cushion clamp
• Catalog Number: BVP200YZN
• UPC: 781011033897
• Product Height: 3.77 in
• Product Diameter: 2 in
• Product Weight: 0.45 lb
• Product Type: Vibration and cushion clamp
• Special features: Dampens vibration and noise
• Type: Vibra-clamp
• Load capacity: 800 lbs
• Material: Steel
• Series: BVP
• UNSPSC: 39121311
• Alternate Catalog Number: 78101103389
• Country of Origin: US
• Finish: Yellow Zinc Plated
• Mounting Type: Channel
• Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
• Suitable For Use With: Rigid Conduit
• Temperature Rating: -40 to 300 00b0F
• Conduit Size: 2 in
• Outside Diameter: 2-3/8 in
• Brand: Eaton
• Manufacturer: Eaton B-Line
• Made in USA: Yes
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• GTIN: 00781011033897
• Item Type: Vibration and cushion clamp
• Size: 2 In
