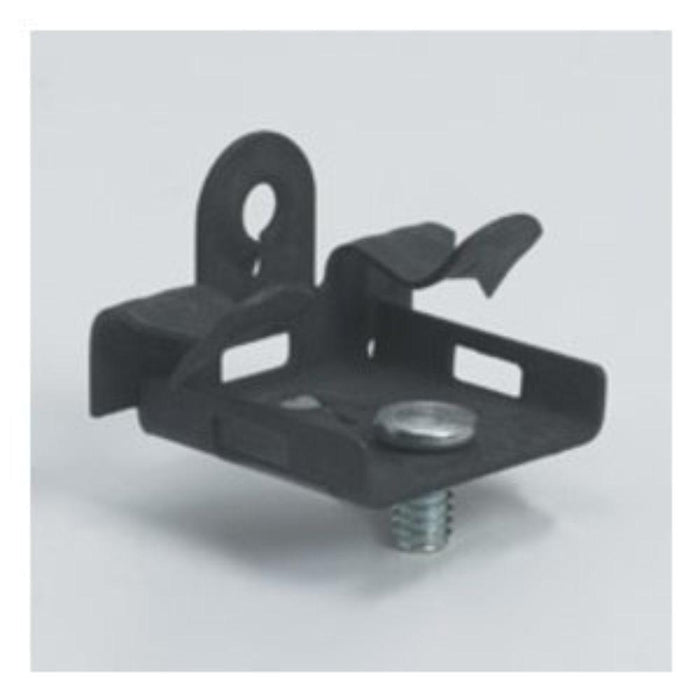

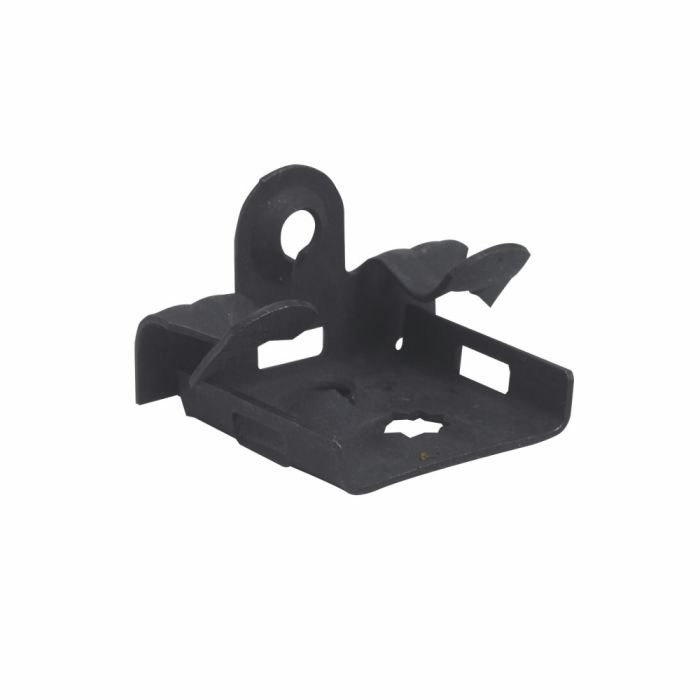

Eaton B-Line BU24S Beam Fasteners 20 x 0.38 inches ked stud

Product Description

The EATON B-LINE BU24S is a series of beam fasteners designed for beams and flanges. Measuring 1" in height, 1" in length and 1" in width with a weight of 0.06lbs. It features a 20 x 0.38" ked stud and is a universal beam fastener with a flange mounting.

• Suspend boxes or fixtures from beam flanges 1/8 to 3/4 in thick
• Provided with 1/4-20 TPI thread impression for quick and secure attachment
• Simply installed with a hammer

Product Highlights

Eaton B-Line series beam fasteners are UL/CUL listed and designed to suspend boxes or fixtures.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BU24S

Technical Specifications

• Product Name: Eaton B-Line series beam fasteners
• Catalog Number: BU-2-4-S
• UPC: 781011196158
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Product Weight: 0.06 lb
• Certifications: UL/CUL listed
• Product Type: Beam fasteners
• Application: Suspend boxes or fixtures
• Type: Universal beam fasteners
• Mounting method: Flange
• Size: 20 x 0.38 inch ked stud
• Mounting dimensions - min: 0.13
• Mounting dimensions - max: 0.25
• Manufacturer: EATON
• Load Capacity: 100 lb
• Finish: Zinc Phosphate
• Flange Thickness: 1/8 to 1/4 in
• Mounting Type: Beam
• Specifications: 3/8 in Staked Stud
• Material: Steel
