Eaton B-Line BU-2-4-S Fastener Beam Universal 1/8 To 1/4In 100Lb

Product Description

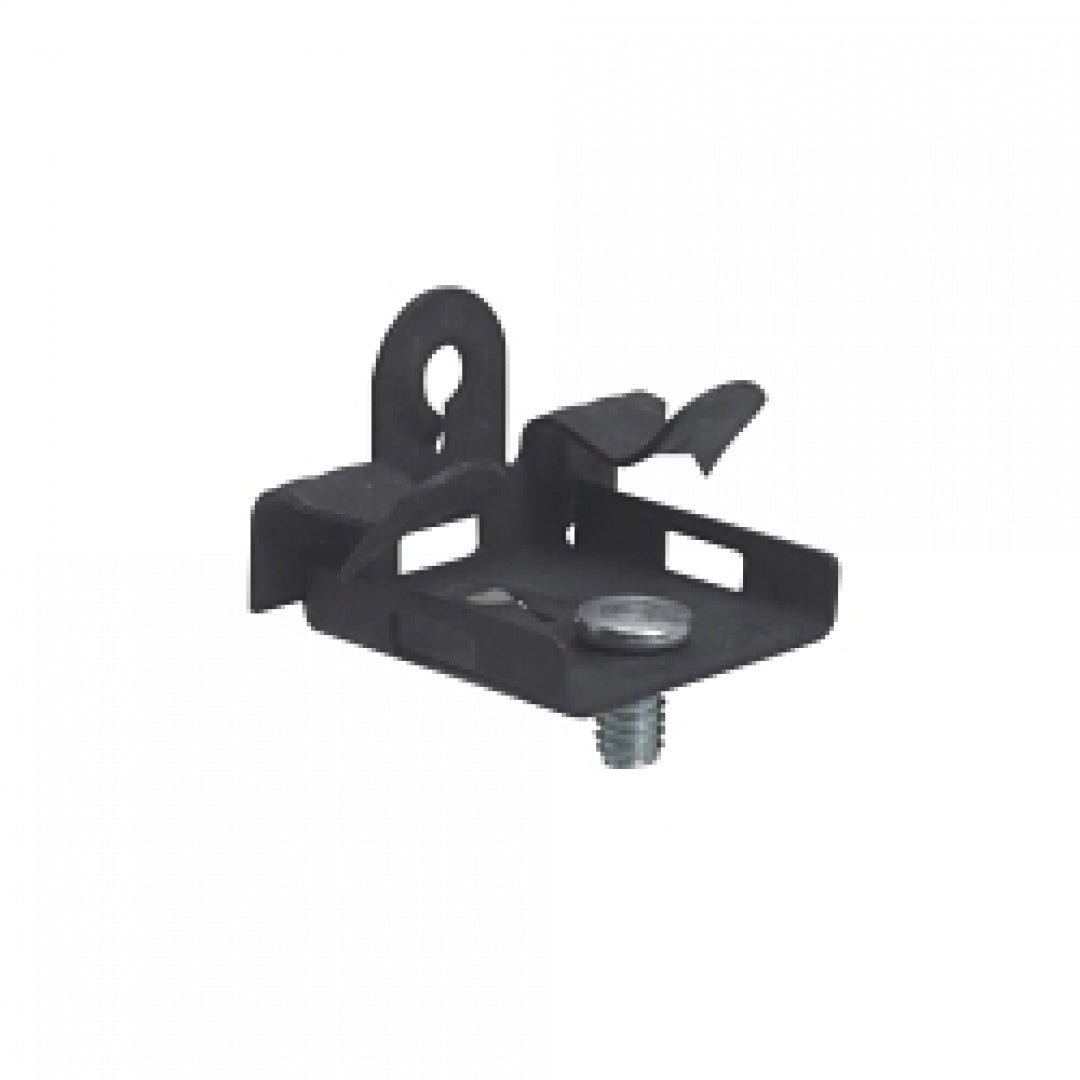

The EATON B-LINE BU-2-4-S is a 1-Piece Universal Beam Fastener designed for flange mounting. It accommodates a thickness of 1/8 to 1/4 inches and supports a 100 lb load. Constructed from steel with a zinc phosphate finish, this fastener is suitable for suspending boxes or fixtures. It features a 1/4-20 x 3/8 inch long threaded stud.

• 1-Piece Universal Beam Fastener
• Flange mounting
• Standards UL/CUL

Product Highlights

Universal beam fastener with a 100 lb load capacity, made of steel with zinc phosphate finish and UL/CUL certifications.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BU-2-4-S
• Country of Origin: United States

Technical Specifications

• Load Capacity: 75 lb
• Material: Steel
• Finish: Zinc Phosphate
• Thickness: 1/8 to 1/4 in
• Series: B-Line
• Includes: 20 x 0.38 in Ked Stud
• Standards: UL/cUL
• Application: Suspend boxes or fixtures
• Thread Size: 1/4-20
• For Use With: Suspend Boxes or Fixtures
• Sub-Category: Clips
• Mounting Type: Hammer On
• Overall Width: 1 in
• Product Width: 1 in
• Basic Material: Steel
• Certifications: UL/CUL listed
• Mounting Style: with Hammer On Clip
• Overall Height: 1 in
• Overall Length: 1 in
• Product Height: 1 in
• Mounting method: Flange
• Flange Thickness: 1/8 in to 1/4 in
• Number of Pieces: 1
• Compatible Pipe Size: 1/4 in
• Nominal Conduit/Pipe: 1/4"
• Product Length/Depth: 1 in
• Beam Flange Thickness: 1/8 in to 1/4 in
• Compatible Conduit Type: Conduit
• Compatible Product Type: Pipe
• Mounting dimensions - max: 0.25
• Mounting dimensions - min: 0.13
• Description/Special Features: 1/4"-20 x 3/8" Long Threaded Stud
• Nominal Conduit/Pipe/Threaded Rod: 1/4 in
• Product Name: Eaton B-Line series beam fasteners
• Catalog Number: BU-2-4-S
• UPC: 781011196158
• Product Type: Beam fasteners
• Model: Beams
• Product Category: Beams
• Size: 20 x 0.38 inch ked stud
