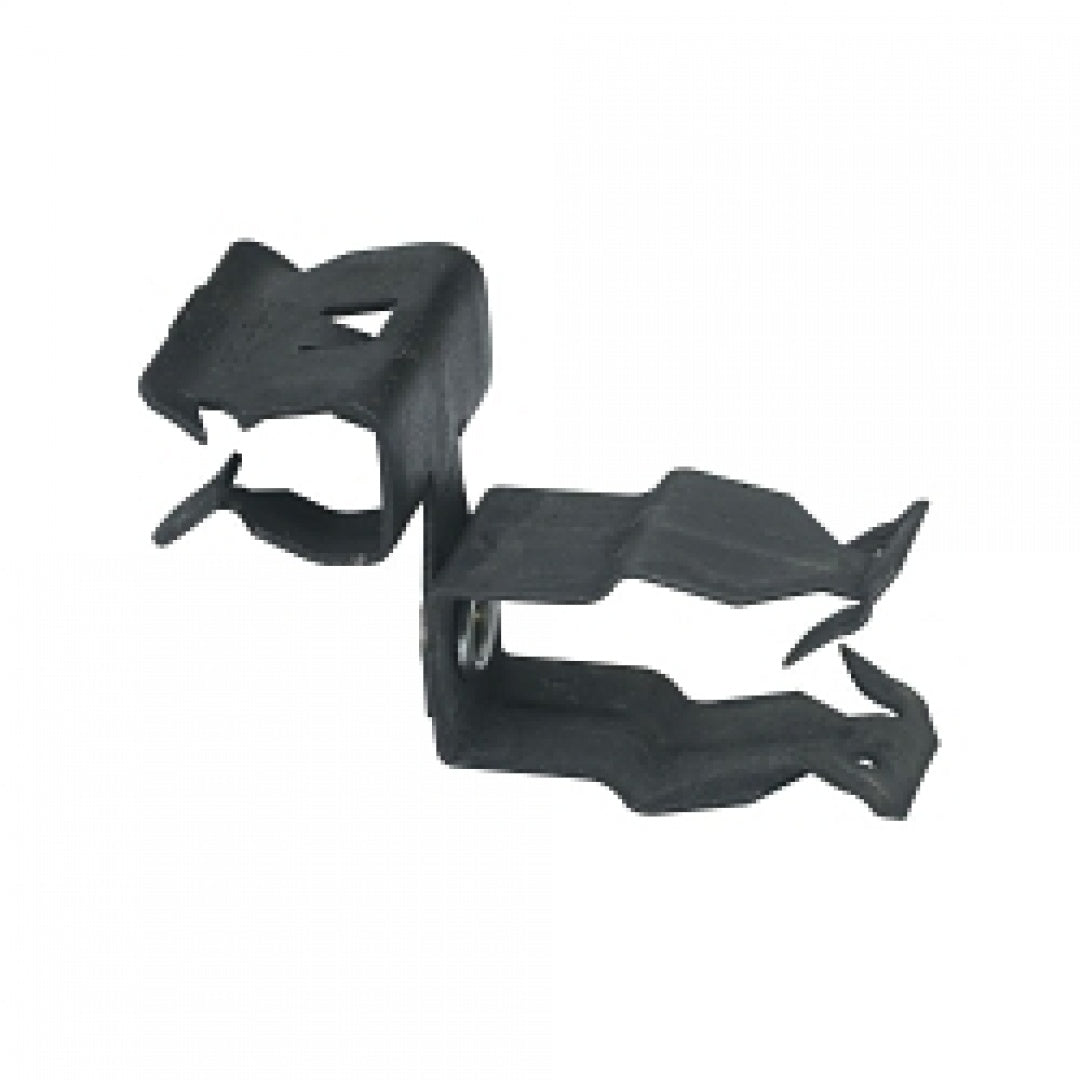

Eaton B-Line BP-16-E-2-4 Fastener Beam to Conduit 1, 3/4in 15lb

Product Description

The EATON B-LINE BP-16-E-2-4 is a push style conduit to beam fastener that supports 3/4 inch and 1 inch conduit sizes and a flange thickness of 1/8 to 1/4 inch. It features a 15 lb load capacity and is made of high carbon steel with a zinc phosphate finish. This fastener quickly attaches conduit to beams.

• Supports 3/4 inch conduit
• Supports 1 inch conduit
• Supports flange thickness of 1/8 to 1/4 inch

Product Highlights

The BP-16-E-2-4 is suitable for EMT/IMC/Rigid conduit and is easily installed with a hammer.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BP-16-E-2-4

Technical Specifications

• Application: Conduit to Beam Fastener
• Conduit Size: 3/4 in
• Flange Thickness: 1/8 to 1/4 in
• Load Capacity: 15 lb
• Material: High Carbon Steel
• Finish: Zinc Phosphate
• Brand: EATON B-LINE
• MPN: BP-16-E-2-4
• Manufacturer: EATON
• Type: Push Style
• Mounting Type: Side
• Suitable For Use With: EMT/IMC/Rigid Conduit
• UPC: 781011194659
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Product Weight: 0.067 lb
• Certifications: UL/CUL listed
• Product Type: Conduit to beam fastener
• Mounting method: Flange
• Size: Conduit size: 1 inch EMT, 0.75 inch IMC, rigid
• Mounting dimensions - min: 0.13
• Mounting dimensions - max: 0.25
