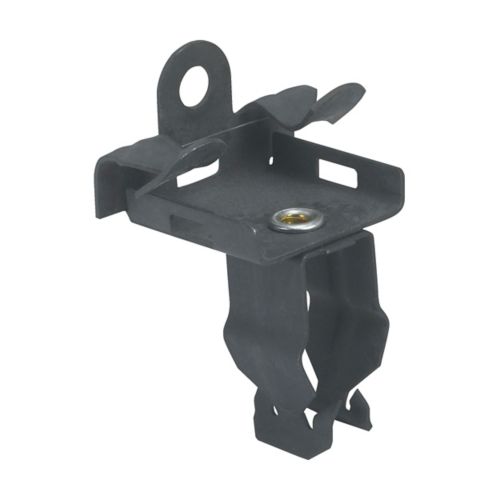

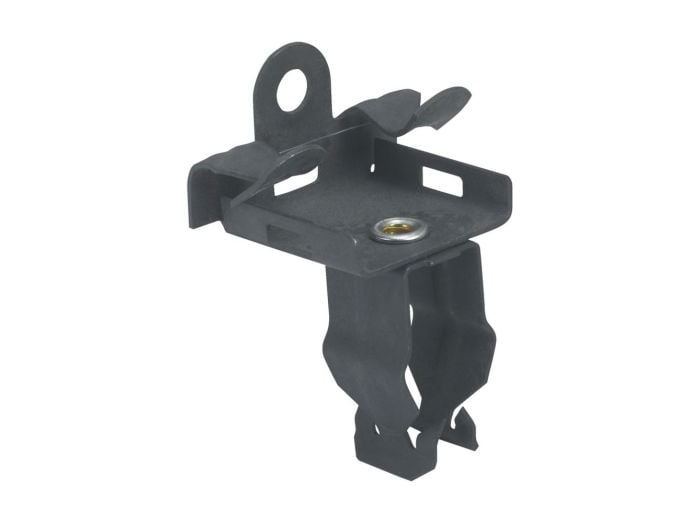

Eaton B-Line BP-12-U-2-4 Conduit to Beam Fastener 3/4-in. EMT, 1/2-in. IMC, Rigid

Product Description

The EATON B-LINE BP-12-U-2-4 is a conduit to beam fastener designed for quickly attaching conduit to beams. It is suitable for use with EMT, IMC, and rigid conduit. This push-style fastener features a 360-degree rotation pivot and is easily installed with a hammer. Made from high carbon steel with a zinc phosphate finish.

• Quickly attaches conduit to beams
• Simply installed with a hammer
• 360 deg Rotation Pivot

Product Highlights

The EATON B-LINE conduit to beam fastener provides a secure and efficient way to mount conduit.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BP-12-U-2-4
• Country of Origin: United States

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Name: Eaton B-Line series conduit to beam fastener
• Catalog Number: BP-12-U-2-4
• UPC: 781011194055
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Certifications: UL/CUL listed
• Product Type: Conduit to beam fastener
• Application: Quickly attaches conduit to beams
• Model: Beams
• Type: Push Style
• Mounting method: Flange
• Size: 0.5 inch EMT
• Mounting dimensions - min: 0.13
• Mounting dimensions - max: 0.25
• Conduit Size: 3/4 in, 1/2 in
• Finish: Zinc Phosphate
• Flange Thickness: 1/8 to 1/4 in
• Load Capacity: 25 lb
• Material: High Carbon Steel
• Mounting Type: Bottom
• Specifications: 360 deg Rotation Pivot
• Suitable For Use With: EMT/IMC/Rigid Conduit
• Manufacturer Part Number: 78101119405
• Family Series: Eaton's B-Line series Conduit Mounts
• Description: BP-12-U-2-4
• EMT Size (in): 3/4 "
• Rigid Size (in): 1/2 "
• Comments: Conduit-Beam Connection
