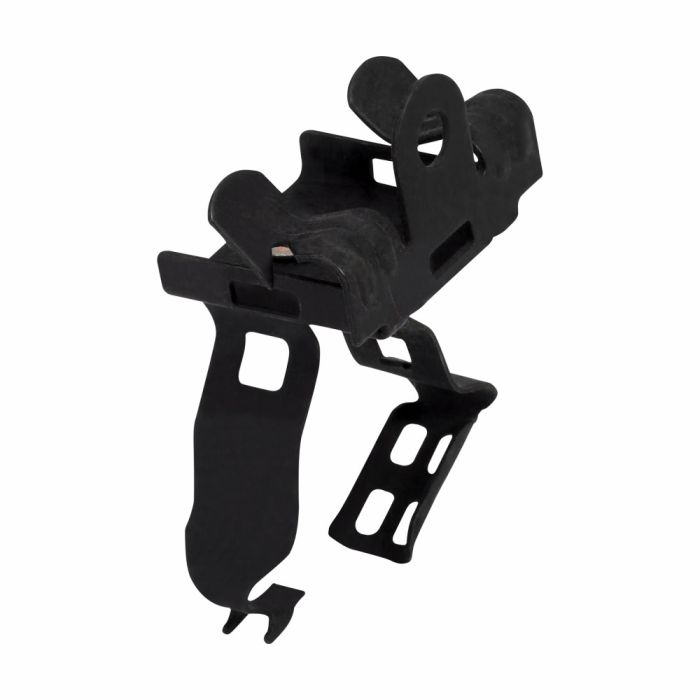

Eaton B-Line BG812U58 Guide-Rite Conduit to Beam Fastener (0.5 inches, 0.75 inches)

Product Description

The Eaton B-Line BG812U58 Guide-Rite conduit to beam fastener is designed for beams and flanges. It measures 1" in height, 1" in length and 1" in width, weighing 0.092lbs. This fastener supports conduit sizes of 0.5" and 0.75", and accommodates a min mount size of 0.31" and max mount size of 0.5".

• Fast and easy installation
• Installed with a hammer and pliers
• Conduit to beam fasteners

Product Highlights

The Eaton B-Line Guide-Rite fastener provides a 360 deg Rotation Pivot and is made of High Carbon Steel with Zinc Phosphate finish.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BG812U58

Technical Specifications

• Product Name: Eaton B-Line series Guide-Rite conduit to beam fastener
• Catalog Number: BG-8-12-U-5-8
• UPC: 781011185305
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Product Weight: 0.092 lb
• Certifications: UL/CUL listed
• Product Type: Conduit to beam fastener
• Application: Conduit to beam fasteners
• Type: Guide-Rite conduit to beam fasteners
• Mounting method: Flange
• Size: Conduit size: 0.5 inch, 0.75 inch
• Mounting dimensions - min: 0.31
• Mounting dimensions - max: 0.50
• Load Capacity: 75 lb
• Finish: Zinc Phosphate
• Flange Thickness: 5/16 to 1/2 in
• Conduit Size: 1/2 in, 3/4 in
• Mounting Type: Bottom
• Suitable For Use With: Conduit
• Specifications: 360 deg Rotation Pivot
• Brand: EATON B-LINE
• MPN: BG812U58
• Series: B-Line
• Additional Features: Guide-Rite conduit to beam fasteners, .31" Min mount size, .5" Max mount size:CONDUIT TO BEAM FASTENER 1/2-IN. 3/4-IN. CONDUIT 5/16-IN. TO 1/2-IN FLANGE (BLINE BG-8-12-U-5-8)
