Eaton B-Line BG20E24 Guide-Rite Conduit to Beam Fastener 1.25 inches Conduit

Product Description

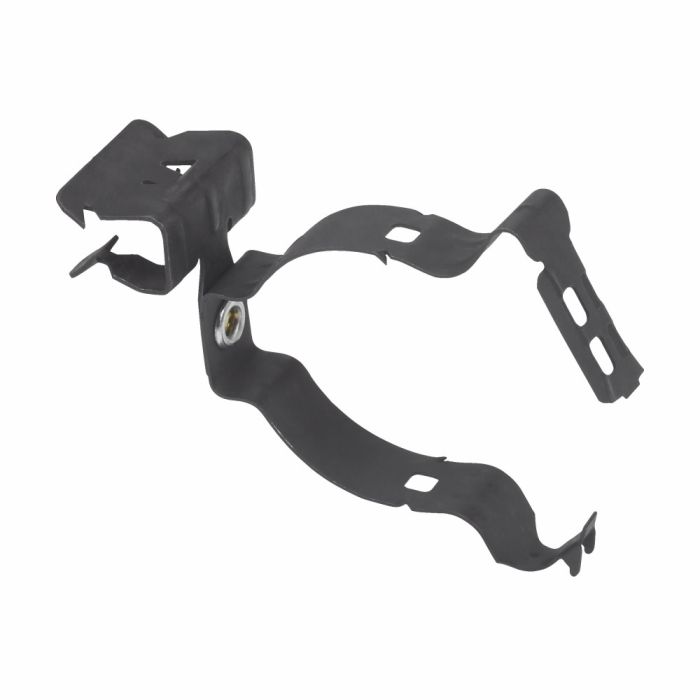

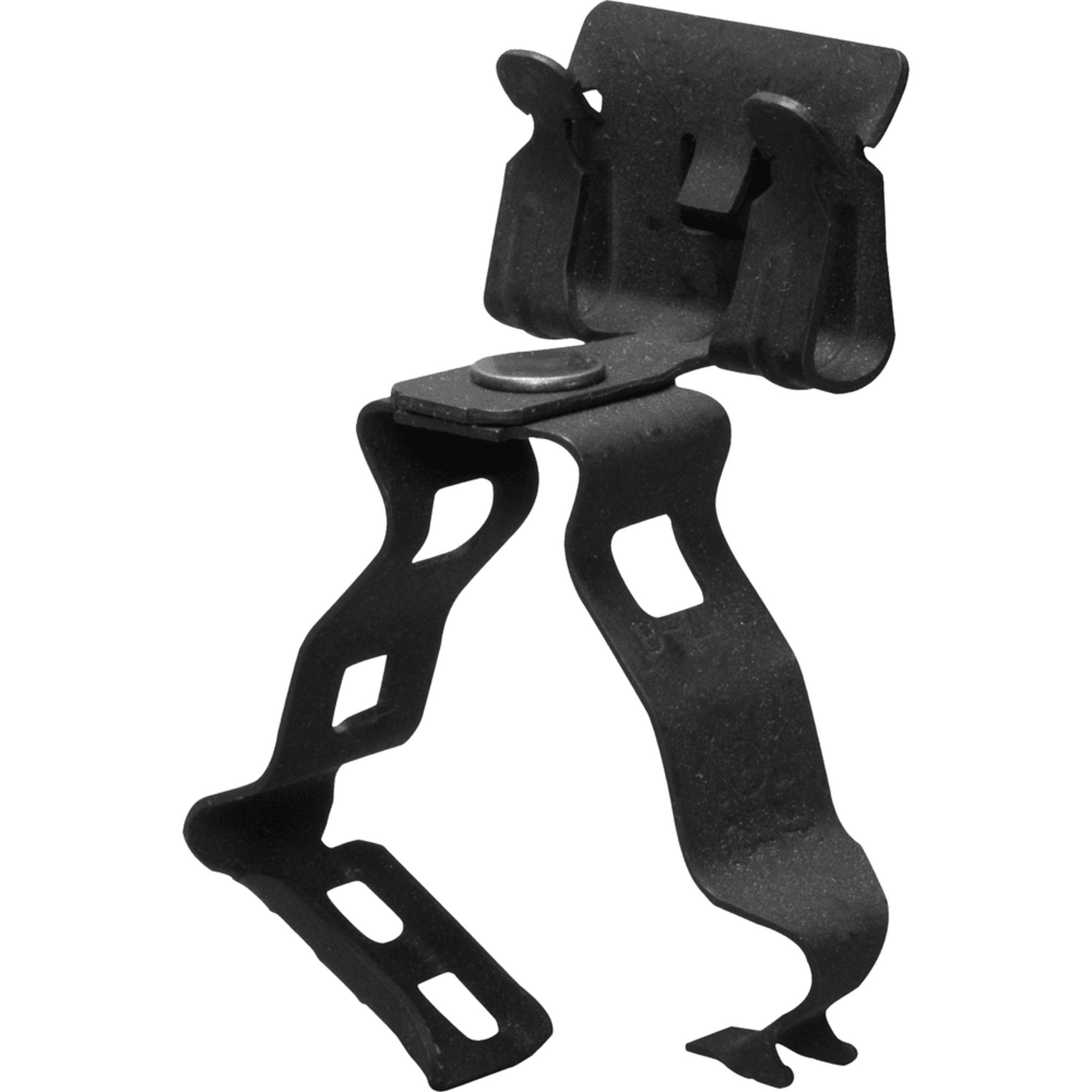

The Eaton B-Line BG20E24 Guide-Rite conduit to beam fastener is designed for beams and flanges. It measures 1" in height, 1" in length, and 1" in width, weighing 0.082lbs. This fastener supports a 1.25" conduit and accommodates a .13" minimum mount size and a .25" maximum mount size. It features a 360-degree rotation pivot.

• Unique Guide-Rite fastener provides for fast and easy installation
• Simply installed with a hammer and pliers
• Supports 1.25" conduit

Product Highlights

The Eaton B-Line Guide-Rite fastener ensures quick and easy installation for conduit to beam applications, offering a 360-degree rotation pivot for flexible positioning.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BG20E24

Technical Specifications

• Product Name: Eaton B-Line series Guide-Rite conduit to beam fastener
• Catalog Number: BG-20-E-2-4
• UPC: 781011186609
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Product Weight: 0.082 lb
• Certifications: UL/CUL listed
• Product Type: Conduit to beam fastener
• Mounting dimensions - min: 0.13
• Mounting dimensions - max: 0.25
• Load Capacity: 25 lb
• Finish: Zinc Phosphate
• Flange Thickness: 1/8 to 1/4 in
• Conduit Size: 1-1/4 in
• Mounting Type: Side
• Suitable For Use With: Conduit
• Specifications: 360 deg Rotation Pivot
• Dimensions: 1 in L x 1 in W x 1 in H
• Manufacturer: EATON
• Manufacturer's Part Number: BG20E24
• Description: SPRG 1-1/4", 25LB CNDT to BM FSTNR, 1/8-1/4 FLNG Conduit to Beam Fastener, Cold Rolled High Carbon Steel, 1-1/4 In Length, Zinc Phosphate, 0.08 LB
• UNSPSC: 39121311 - Electrical fittings
