Eaton B-Line BCH21-U-2-4 J-Hook Cable to Beam 1-5/16 Inch 30 Pound Load

Product Description

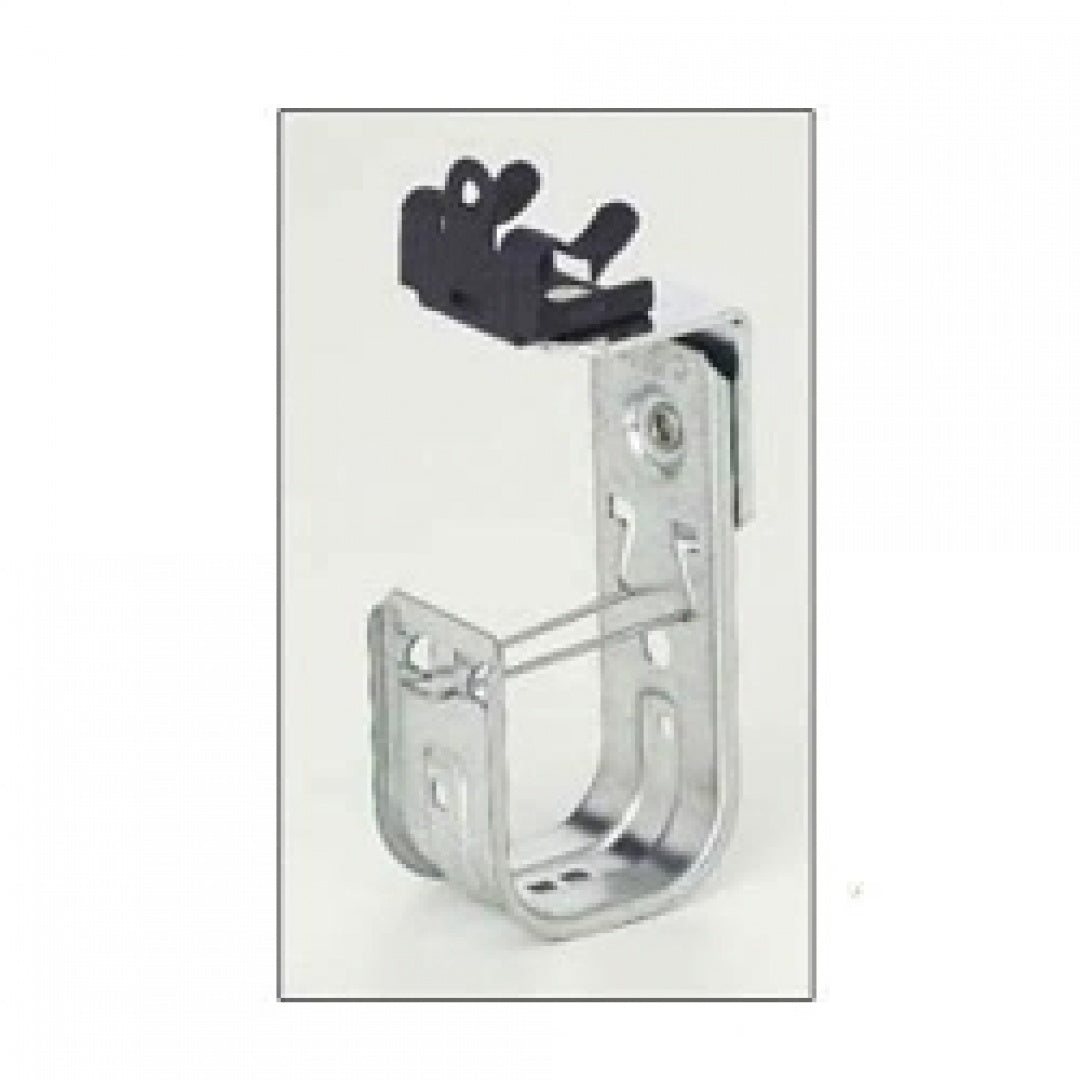

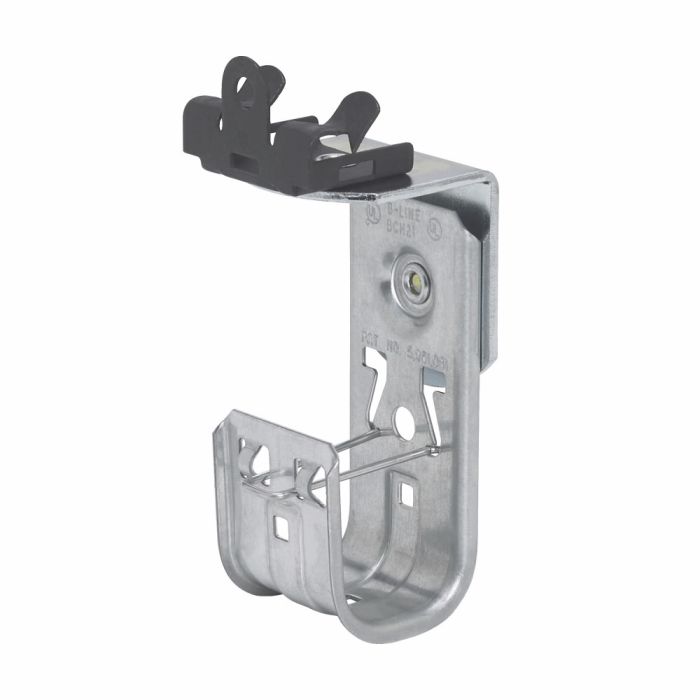

The EATON B-LINE BCH21-U-2-4 is a cable to beam J-Hook designed for flange thicknesses from 1/8-inch to 1/4-inch with a 1-5/16 inch hook. It supports a 30 lb load and facilitates cable management in industrial, commercial, utility, and HVACR applications. The J-hook is suitable for beam mounting.

• Designed for 1/8 to 1/4 inch flange.
• Features a 1-5/16 inch hook.
• Supports a maximum load capacity of 30 lb.

Product Highlights

The BCH21-U-2-4 J-Hook provides a secure and easy solution for cable to beam installations, offering reliable support and efficient cable management.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BCH21-U-2-4
• Country of Origin: United States

Technical Specifications

• Load Capacity: 30 lb
• Material: Steel
• Finish: Pre-Galvanized
• Flange Size: 1/8 to 1/4 in
• Manufacturer: EATON B-LINE
• Item: J-Hook
• Type: Cable to beam fastener
• Mounting: 360 Degrees Horizontal Rotation
• Hook size: 1.31 in
• Standards: cUL, TIA/EIA 569 Compliant, UL
• Mounting Type: Hammer-On, 1/8 to 1/4" Flange, Underneath Mount
• Product Width: 1.52 in
• Certifications: UL/CUL listed
• Product Height: 5.15 in
• Attachment Style: Hammer On
• Flange Thickness: 1/8 in to 1/4 in
• Max. Bundle Dia.: 1 1/4 in
• Special features: Beam mount
• Mounting Location: Beam
• Number of J-hooks: 1
• Max. Load Capacity: 30 lb
• Max. Cable Capacity: 1 5/16 in
• Product Length/Depth: 1.875 in
• Includes Locking Latch: Yes
• Description/Special Features: Beam Clamp Assembly
• Country of Origin (subject to change): United States
• Product Weight: 0.426 lb
