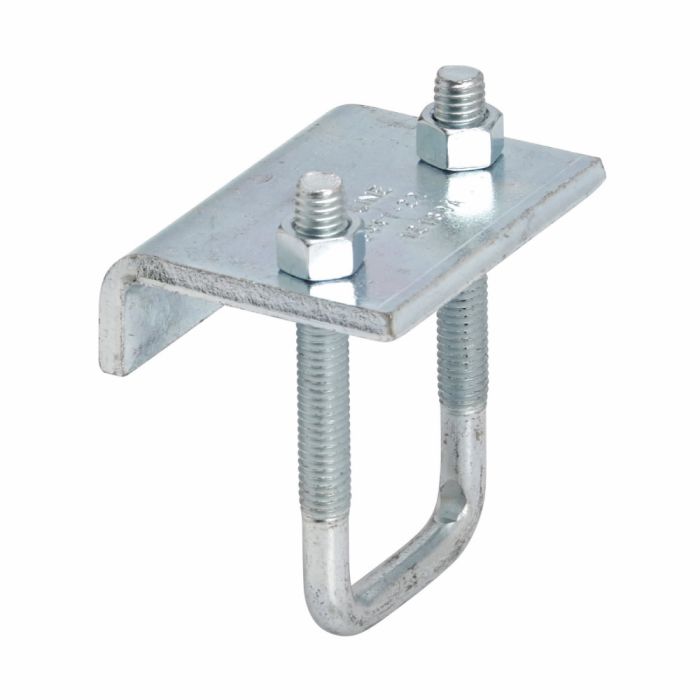

Eaton B-Line B441-22ZN Beam Clamp for 13/16 to 1-5/8 Inch High Channel

Product Description

The EATON B-LINE B441-22ZN beam clamp is designed for 13/16 to 1-5/8 inch channels. Constructed from low carbon steel with zinc plating, it supports a load capacity of 1200 lb. It is suitable for use with high channels and features a right angle under flange channel position.

• Suitable for 13/16 to 1-5/8 inch channels
• Features a right angle under flange channel position
• Made from low carbon steel

Product Highlights

The B441-22ZN beam clamp offers robust support and secure positioning for high channel applications.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B441-22ZN
• Country of Origin: China

Technical Specifications

• Channel Size: 3/4 inch
• Flange Thickness: 3/4 in
• Load Capacity: 1200 lb
• Material: Low Carbon Steel
• Beam Thickness: 0.75IN
• Height: 3.3750IN
• Length: 3IN
• Width: 2.3750IN
• Beam thickness: 3/4"
• Used with: 1 - 5/8" high channel
• Safety factor: 5
• Finish: Electro-plated zinc
• Type: Beam clamp
• Channel Position: Right Angle Under Flange
• Series: B441-22
• Suitable For Use With: High Channel
