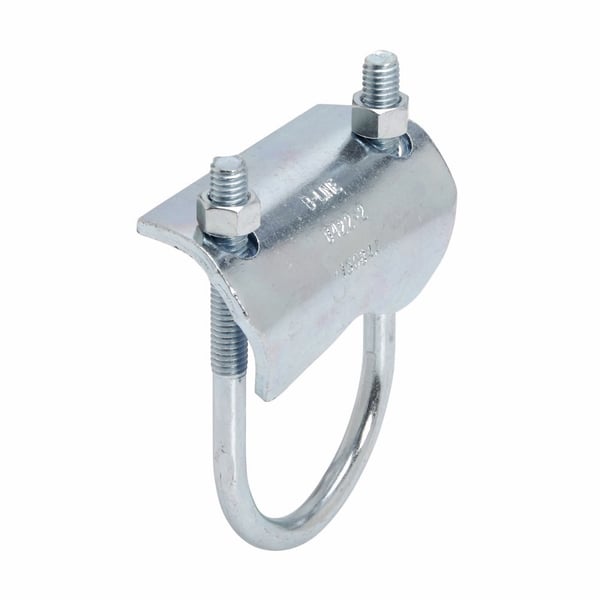

Eaton B-Line B422-11/4ZN Right Angle Clamp 1-1/4 in

Product Description

The Eaton B-Line B422-11/4ZN right angle clamp is designed for reliable support in strut fittings and beam clamp applications. With dimensions of three inches high, one and one-quarter inches long, and two and eight hundred seventy-five thousandths inches wide, this clamp can support a load of four hundred pounds and features a safety factor of five.

• Supports a load capacity of 400 lb
• Safety factor of 5
• cULus Listed for safety compliance

Product Highlights

This right angle clamp is made from low carbon steel and finished with zinc plating for corrosion resistance. It is ideal for use in various applications that require secure mounting.

Product Information

Standard Information

• Brand: Eaton B-Line
• MPN: B422-11/4ZN

Technical Specifications

• SKU: B422-11/4ZN
• Product Length/Depth: 1.25 inches
• Product Height: 3 inches
• Product Width: 2.875 inches
• Certifications: cULus Listed
• Type: Right angle clamp
• Load Capacity: 400 lb
• Material: Low Carbon Steel
• Rod Size: 1-1/4 inches
• Thickness: 7 ga THK
• Finish: Zinc Plated
• Conduit Size: 1-1/4 inches
• Length: 2-7/8 inches
