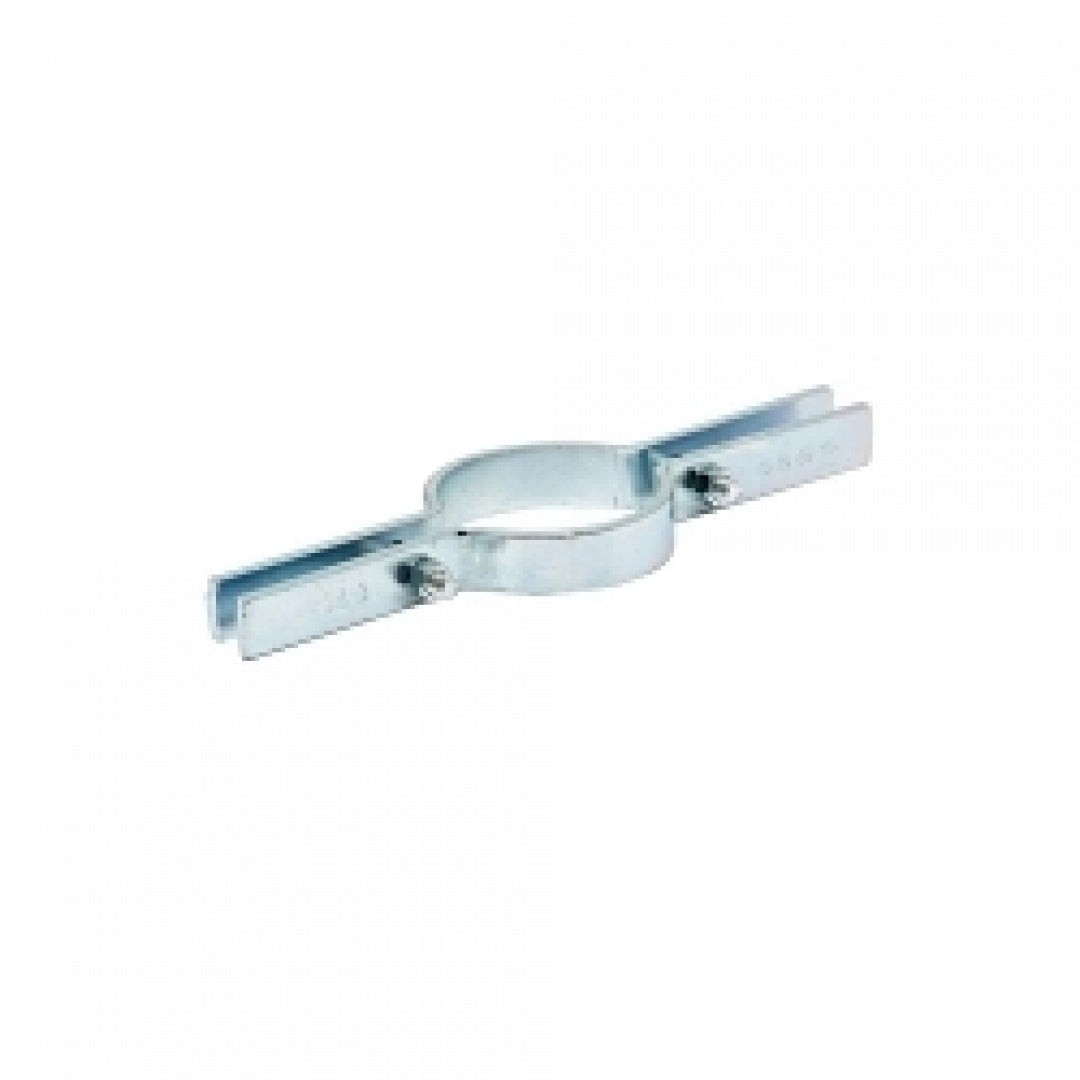

Eaton B-Line B3373-3PLN riser clamp 3 inch

Product Description

The EATON B-LINE B3373-3PLN is a black plain carbon steel riser clamp designed for support and attachment of pipe to structural members. It supports vertical piping and includes hex nuts and head hex cap screws. This standard riser clamp conforms to Federal Specification WW-H-171E & A-A-1192A, Type 8 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 8.

• Includes Hex Nut and Hex Cap Screw
• UL, cUL Listed
• Factory Mutual Engineering Approved

Product Highlights

The B3373-3PLN riser clamp is made of steel with a plain finish and supports vertical piping.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3373-3PLN
• Country of Origin: CN - China

Technical Specifications

• Material: Steel
• Product Length/Depth: 11.93 in
• Product Height: 3 in
• Product Width: 1 in
• Product Type: Riser clamp
• Special features: Includes hex nuts and head hex cap screws
• Type: Riser clamp
• ECCN: EAR99
• Series: B3373 Series
• Finish: Plain
• Application: Supports Vertical Piping
• Load Rating: 530 lb.
• Max. Opening (Inches): 1-1/2 in.
• Rod Size: 3/8 in.
• Bolt Diameter: 3/8 in
• Pipe Size: 3 in
• Manufacturer: EATON
• Manufacturer #: B3373-3PLN
• Mounting Type: Channel
• Temperature Rating: 650
• Torque Rating: 19
• Size: 3 in
• Standard: FM,UL (CANADA AND US)
