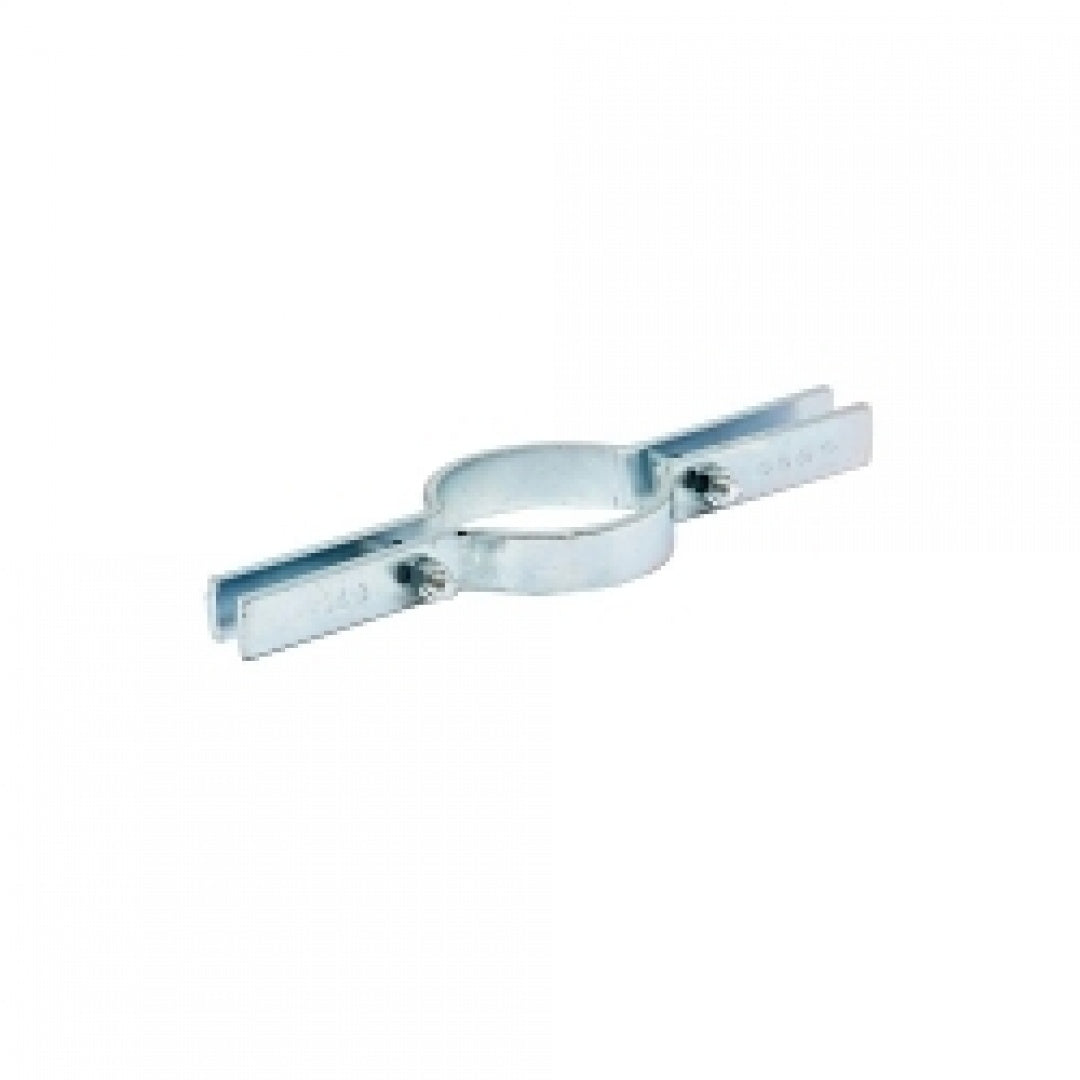

Eaton B-Line B3373-1 1/4PLN Riser Clamp, 1 1/4 inches, Plain

Product Description

The EATON B-LINE B3373-1 1/4PLN is a 1 1/4" plain riser clamp designed for supporting vertical piping. It includes hex nuts and head hex cap screws. This steel riser clamp is suitable for channel mounting and adheres to Federal Spec WW-H-171E, A-A-1192A Type 24, and ANSI/MSS SP-69, SP-58 Type 24 standards.

• Includes hex nuts and head hex cap screws
• Suitable for supporting vertical piping
• Compliant with Federal Spec WW-H-171E, A-A-1192A Type 24, and ANSI/MSS SP-69, SP-58 Type 24

Product Highlights

The EATON B-LINE B3373-1 1/4PLN riser clamp is made of steel with a plain finish and is designed for channel mounting.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3373-1 1/4PLN
• Country of Origin: CN

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Type: Riser clamp
• Special features: Includes hex nuts and head hex cap screws
• Type: Long Ear Riser
• Material: Steel
• Finish: Plain
• Bolt Diameter: 3/8 in
• Load Capacity: 255 lb
• Mounting Type: Channel
• Pipe Size: 1-1/4 in
• Series: B3373
• Temperature Rating: 650 deg F
• Torque Rating: 19 ft-lb
• Brand: B-Line
• UNSPSC: 39121311
• Applications: PIPE HANGERS,MECH.-CLAMPS
• Size: 1-1/4 In
• Sub Brand: Pipe Hangers
