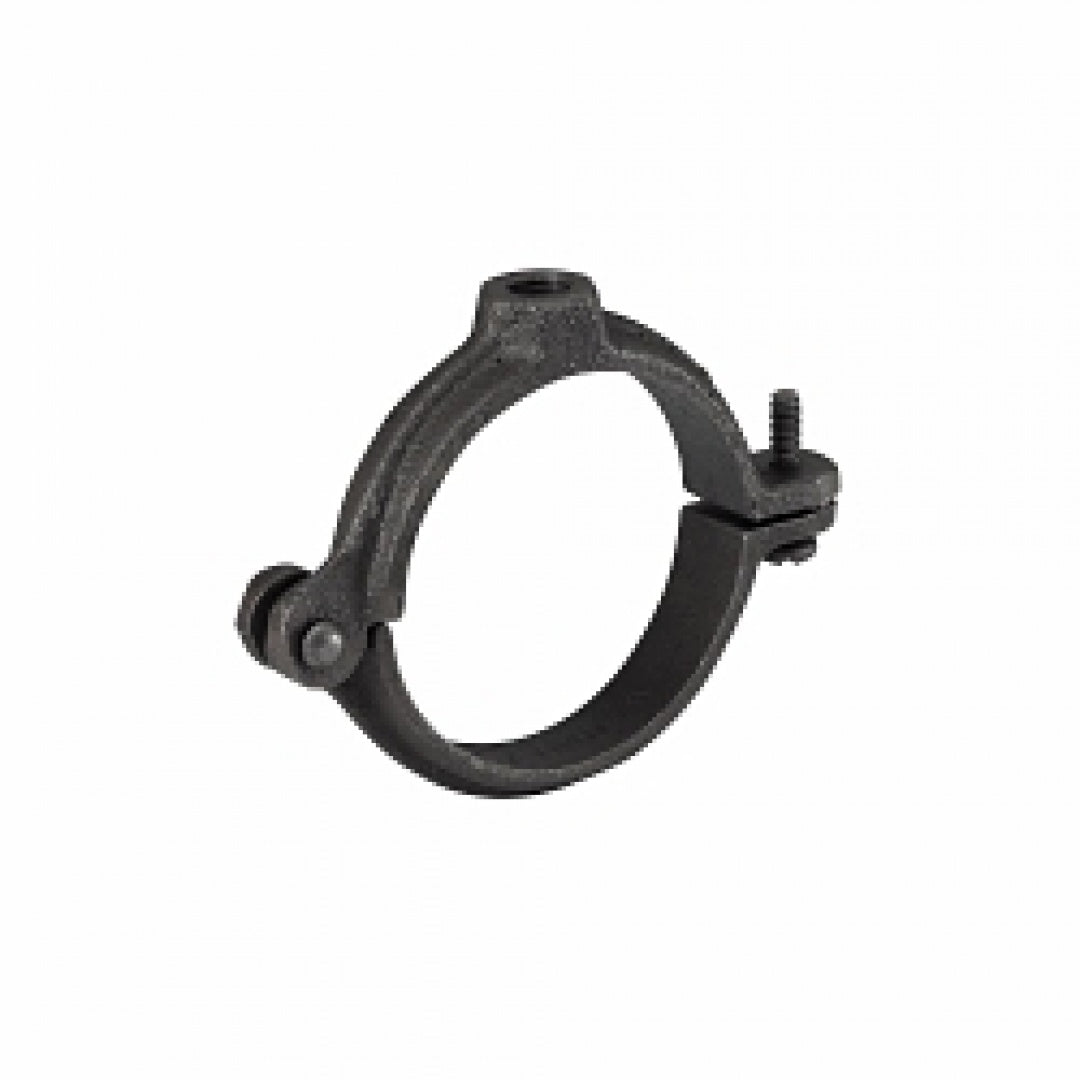

Eaton B-Line B3198H-1/2ZN Hinged Extension Split Pipe Clamp 1/2 inch 3/8 inch-16

Product Description

The EATON B-LINE B3198H-1/2ZN is a hinged extension split pipe clamp designed for suspending non-insulated pipes horizontally or vertically. It fits 1/2 inch pipes and features a 3/8 inch-16 rod size. Constructed from malleable iron with a zinc finish, this pipe clamp conforms to Federal Specification WW-H-171E & A-A-1192A, Type 25 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 12.

• Designed for suspending non-insulated pipes
• Features a 3/8 inch-16 rod size
• Constructed from malleable iron with a zinc finish

Product Highlights

This hinged extension split pipe clamp is ideal for horizontal or vertical pipe suspension.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3198H-1/2ZN
• Country of Origin: China

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Length/Depth: 2.222 in
• Product Height: 1.446 in
• Product Width: 0.623 in
• Product Type: Hinged extension split pipe clamp
• Application: Suspended non insulated pipe horizontal or vertical
• Finish: Zinc
• Material: Malleable iron
• Series: B3198H
• Rod Size: 3/8 in.-16
