EATON B-LINE B3188-2ZN U-Bolt 4.25 inches H x 2 inches D

Product Description

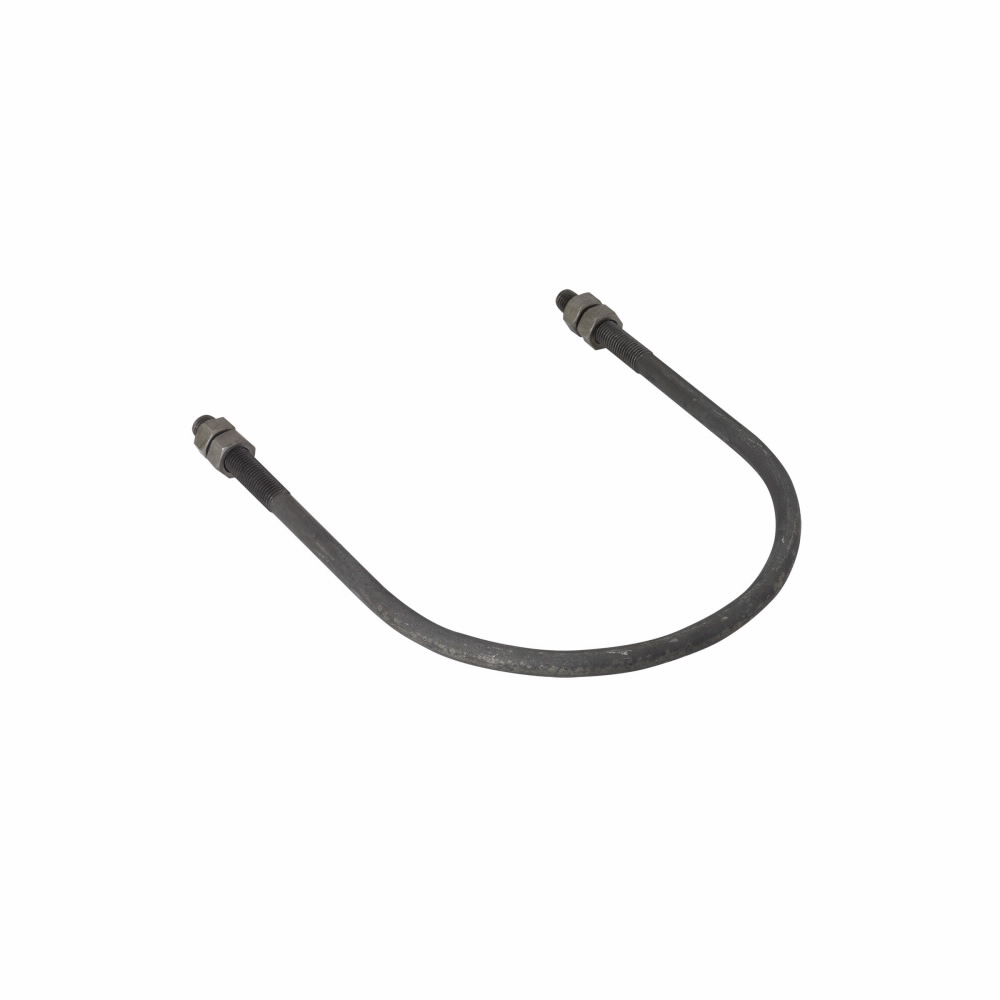

The Eaton B-Line B3188-2ZN U-bolt measures four point two five inches in height and two inches in diameter. Constructed from steel, this U-bolt is designed to support and secure pipes effectively. It has a load capacity of eleven hundred forty-four pounds, making it suitable for various applications in construction and plumbing.

• Features a load capacity of eleven hundred forty-four pounds.
• Operating temperature rating of seven hundred fifty degrees Fahrenheit.
• Includes four hex nuts for secure installation.

Product Highlights

The Eaton B-Line B3188-2ZN U-bolt is ideal for anchoring and guiding pipes and comes compliant with UL standards. Its durable steel construction is electro-plated for added corrosion resistance.

Product Information

Standard Information

• SKU: B3188-2ZN
• UPC: 781011113216

Technical Specifications

• Load Capacity: 1144 lb
• Operating Temperature: 750 °F
• Thread Length: 2.5 in
• Thread/Rod Size: 3/8-16
• Material: Steel
• Finish: Electro-Plated Zinc
• Pipe Size: 2 in
• Inside Width: 2-7/16 in
